Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooling fan motor.
  2. Install the cooling fan motor bolts.

    Tighten:

    Tighten the bolts to 6 N.m (53 in lbs)

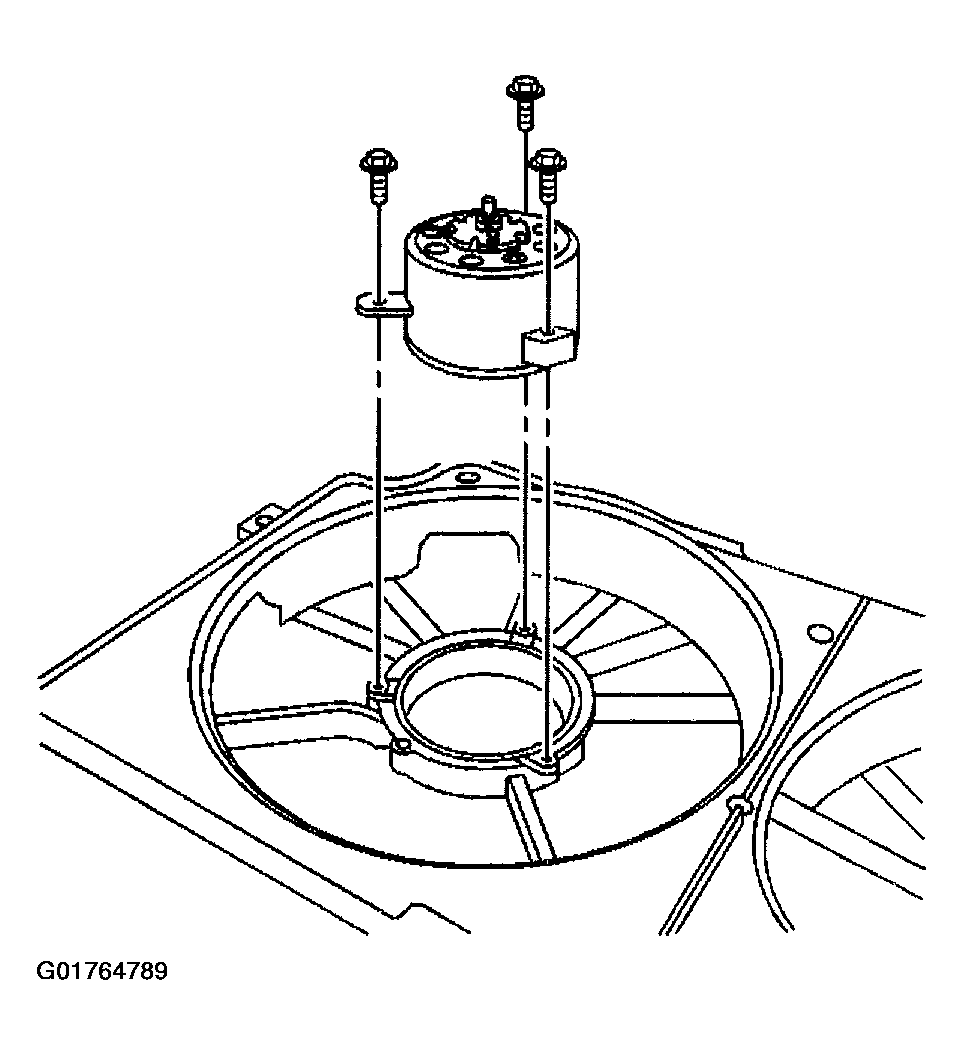

    Fig 1: Cooling Fan Motor
    G01764789Courtesy of GENERAL MOTORS CORP.
  3. Install the cooling fan blade.
  4. Install the cooling fan blade nut.

    Tighten:

    Tighten the nut to 6 N.m (53 in lbs)

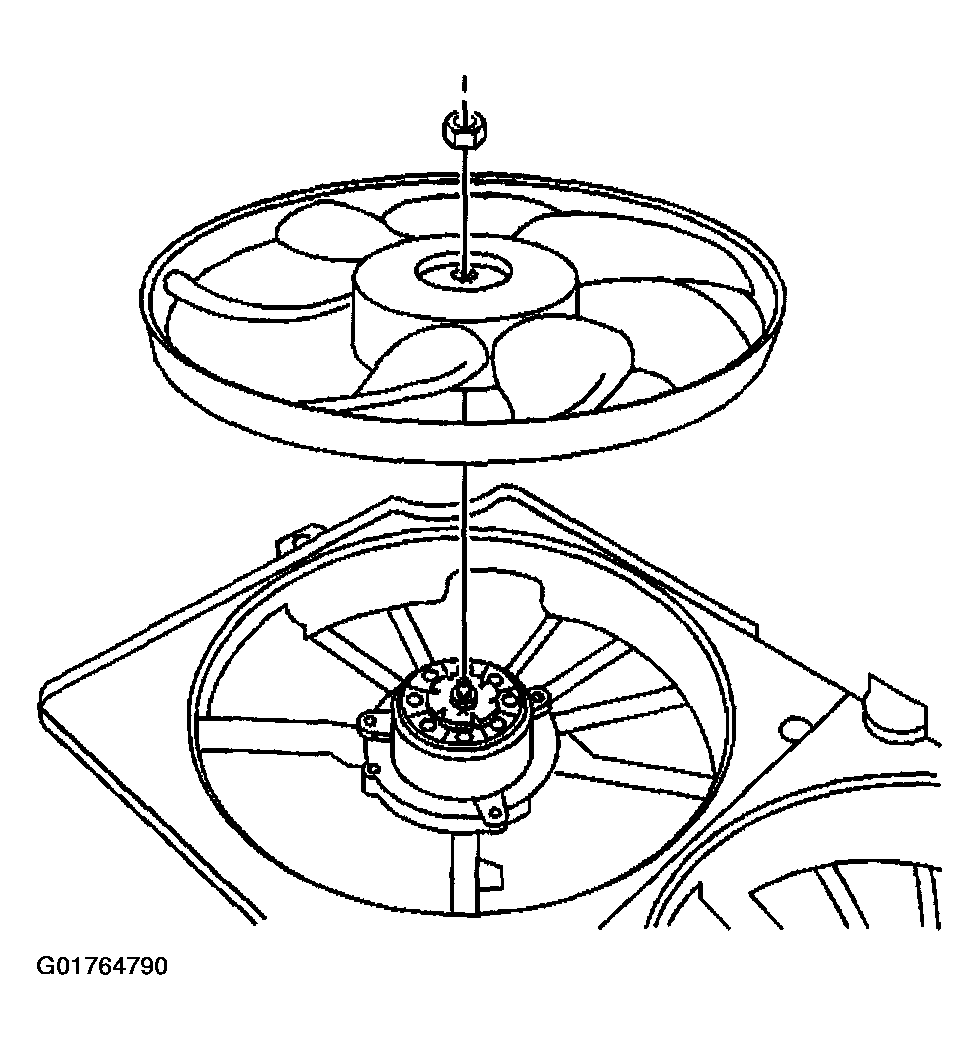

    Fig 2: Cooling Fan Blade And Nut
    G01764790Courtesy of GENERAL MOTORS CORP.
  5. Connect the cooling fan motor electrical connectors.
  6. Install the cooling fan heat shields.

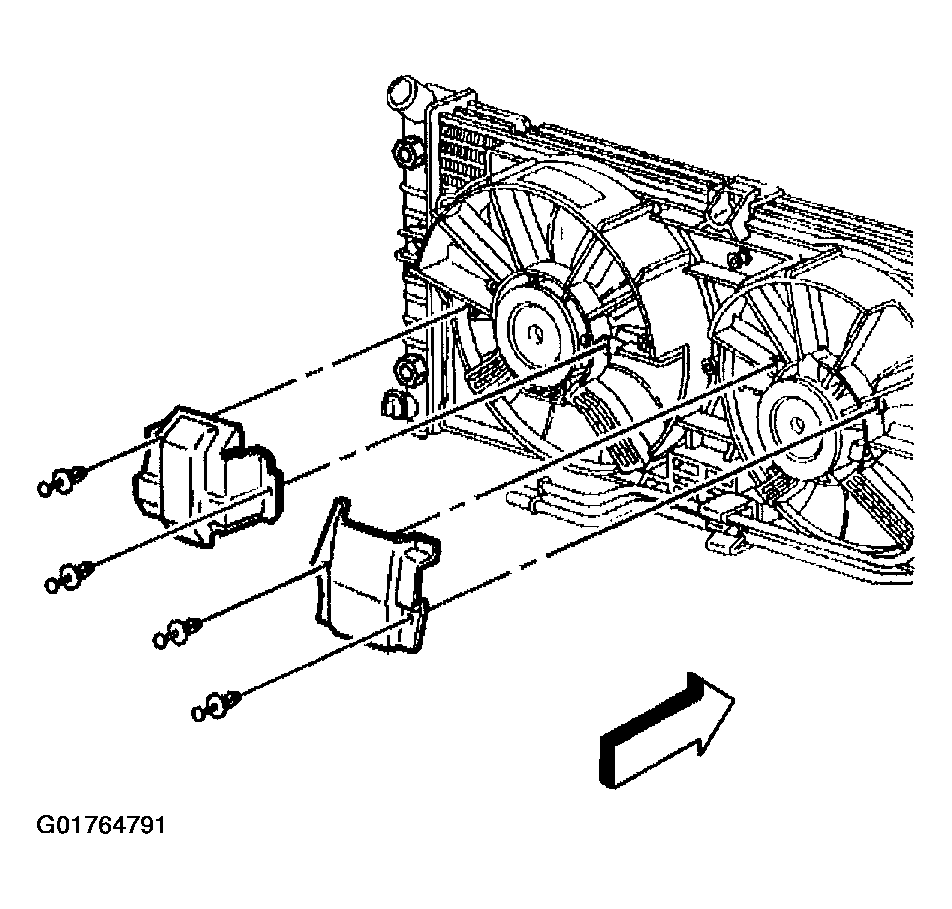

    7. Fig 3: Cooling Fan Heat Shields
    G01764791Courtesy of GENERAL MOTORS CORP.
  7. Install the cooling fan assembly. Refer to Cooling Fan Replacement - Electric
