Hydraulic Brake Booster Accumulator: Installation

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate all seals and metal friction points with power steering fluid GM P/N 1052884. Install the accumulator and O-ring seal. See Figure .

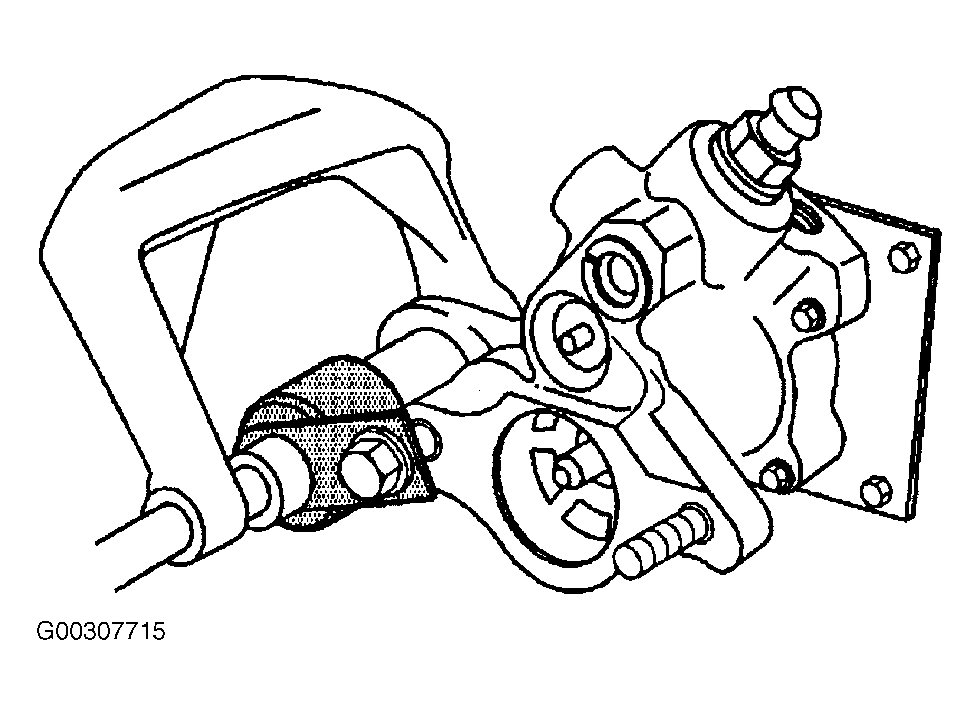

  2. Place the Accumulator Piston Compressor over the end of the accumulator. See Figure . Install the nut on the stud. Depress the accumulator with a C-clamp.
  3. Install the accumulator retainer ring. See Figure . Release the C-clamp. Remove the nut from the stud. Remove the Accumulator Piston Compressor.
  4. Install the master cylinder to the hydraulic booster.
