Combination Valve: Removal

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle and properly support it with safety stands. Remove the retaining bolts from the shield. See Fig 1 . Remove the shield.
  2. Disconnect the 2-way electrical connector from the combination valve. See Fig 2 .
  3. Disconnect the front and rear brake pipes from the combination valve. See Fig 3 .
  4. Remove the Allen bolts that fasten the combination valve to the BPMV. Remove the combination valve from the BPMV. See Fig 4 .
  5. Install the transfer tubes to the valve. See Fig 4 .

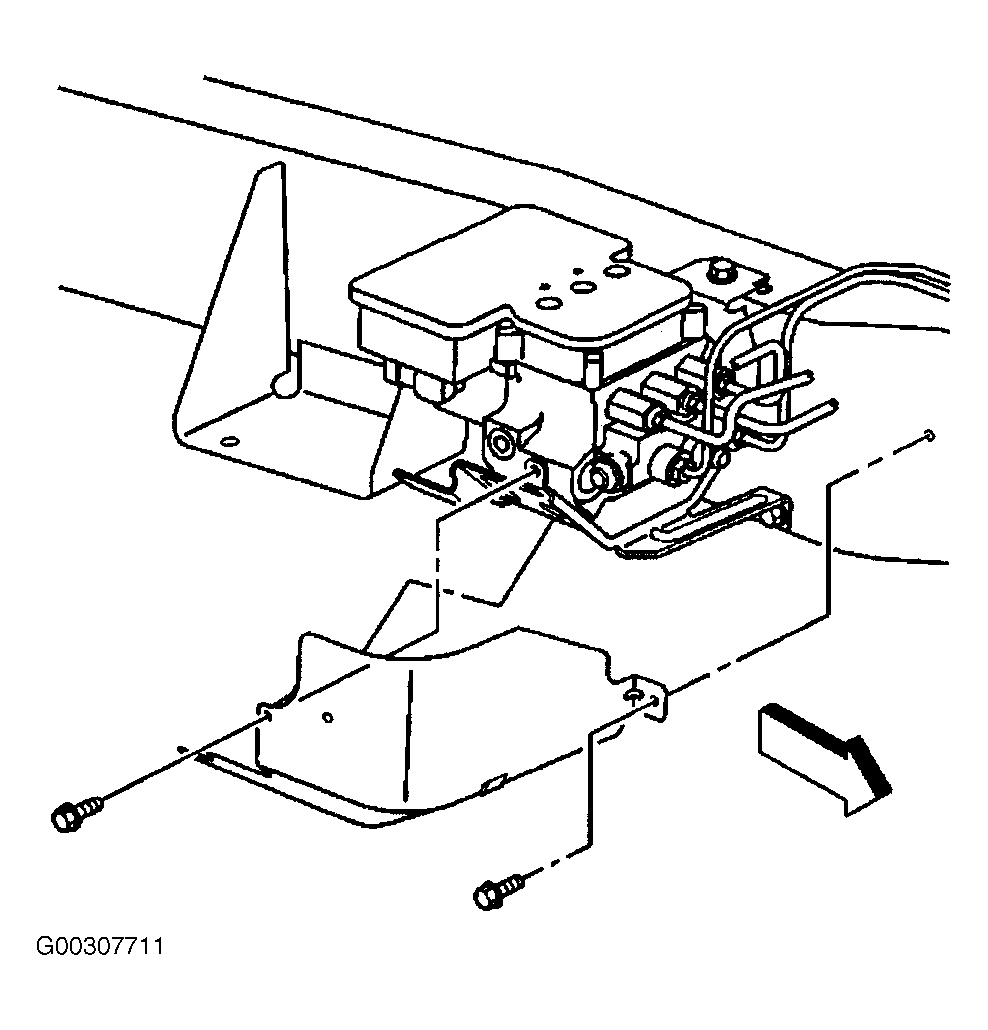

Fig 1: Identifying Combination Valve Retaining Bolts
G00307711Courtesy of GENERAL MOTORS CORP.
Fig 2: Disconnecting 2-Way Electrical Connector
G00307712Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Brake Lines
G00307713Courtesy of GENERAL MOTORS CORP.
Fig 4: Exploded View Of Combination Valve
G97H03733Courtesy of GENERAL MOTORS CORP.
