Water Outlet Removal (L36)

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water outlet bolt and stud.
  2. Remove the water outlet.
  3. Remove the thermostat.

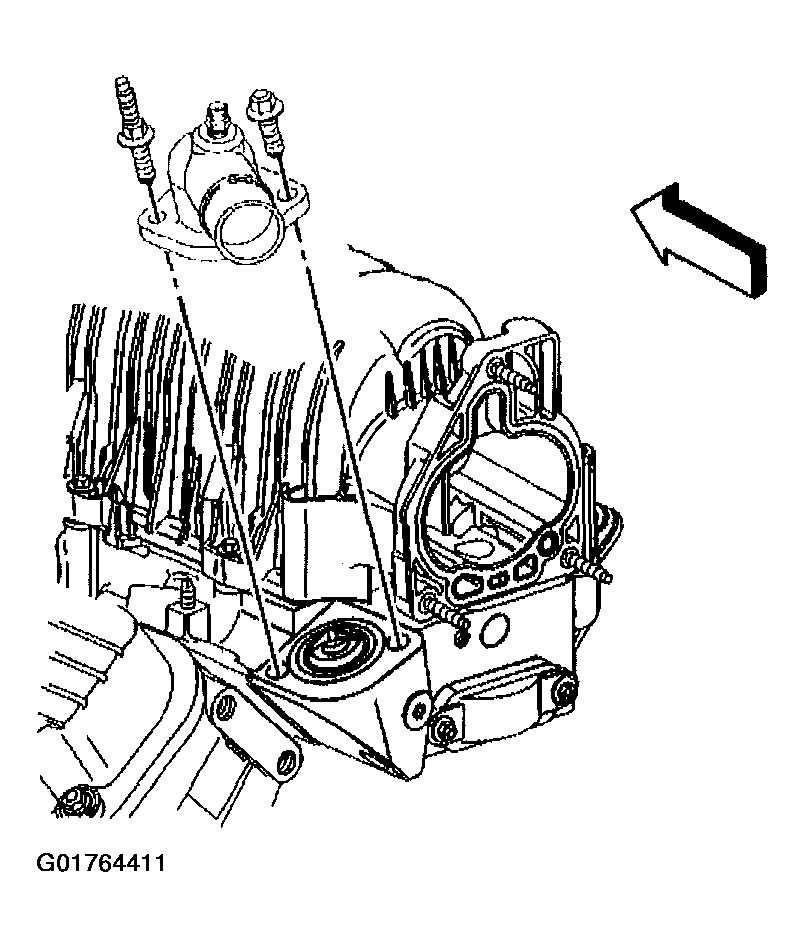

    Fig 1: Thermostat (L36)
    G01764411Courtesy of GENERAL MOTORS CORP.
