Water Outlet Installation (L67)
WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

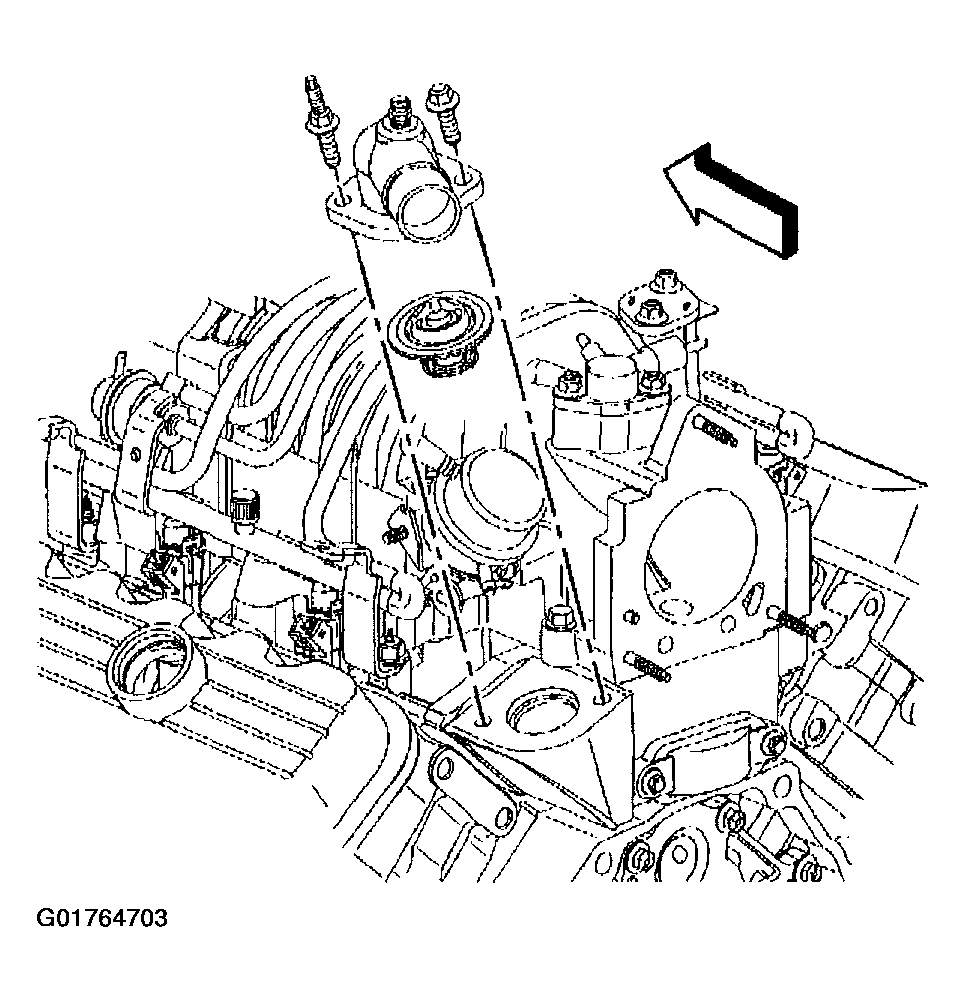

- Install the thermostat.
- Install the water outlet.
- Install the water outlet bolt and stud.
Tighten:
Tighten the water outlet bolt and stud to 27 N.m (20 lb ft)
Courtesy of GENERAL MOTORS CORP.
