Valve Rocker Arm Cover Installation - Left

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve rocker arm cover.
  2. Apply GM P/N United States 12345382, GM P/N Canada 10953489 threadlocker or the equivalent to threads.
  3. Install the valve rocker arm cover bolts.

    Tighten:

    Tighten the valve rocker arm cover bolts to 10 N.m (89 lb in)

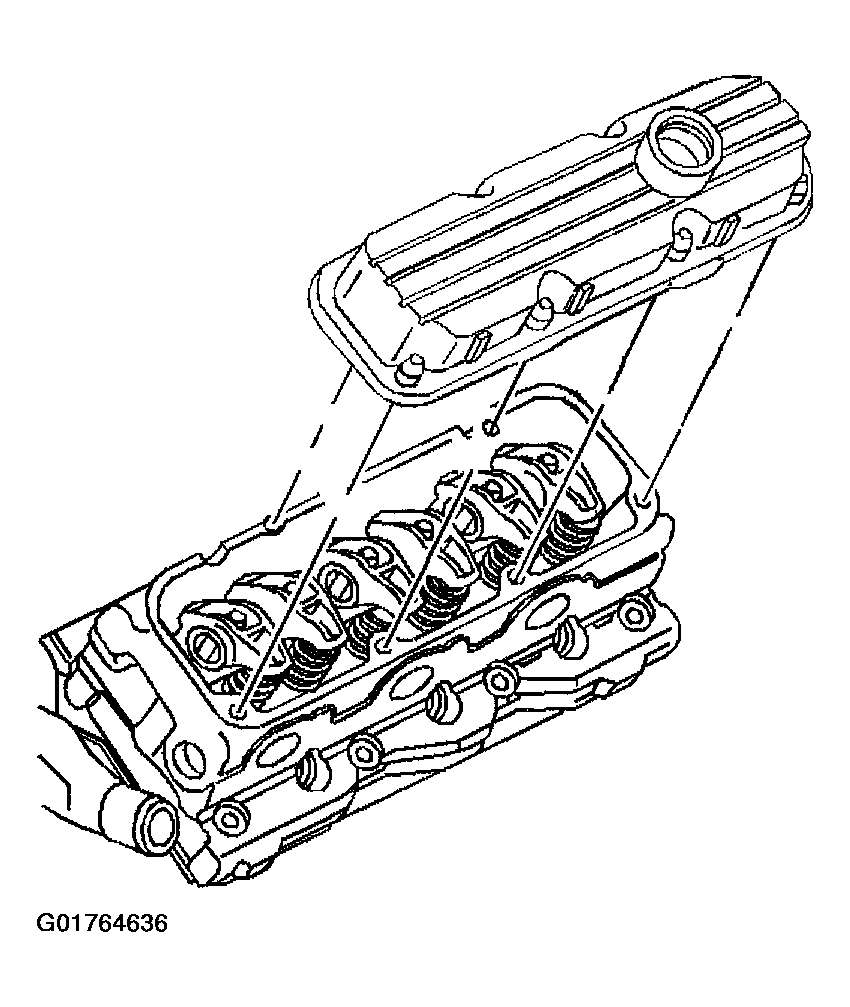

    Fig 1: Valve Rocker Arm Cover, Left
    G01764636Courtesy of GENERAL MOTORS CORP.
