Timing Chain and Sprockets Installation (L36)

Tools Required: J 36660-A  Torque Angle Meter

1. Install the crankshaft balancer key into the crankshaft keyway.

   The crankshaft balancer key should be parallel to the crankshaft or with a slight incline.

2. Install the timing chain on the sprockets. Align the timing marks.

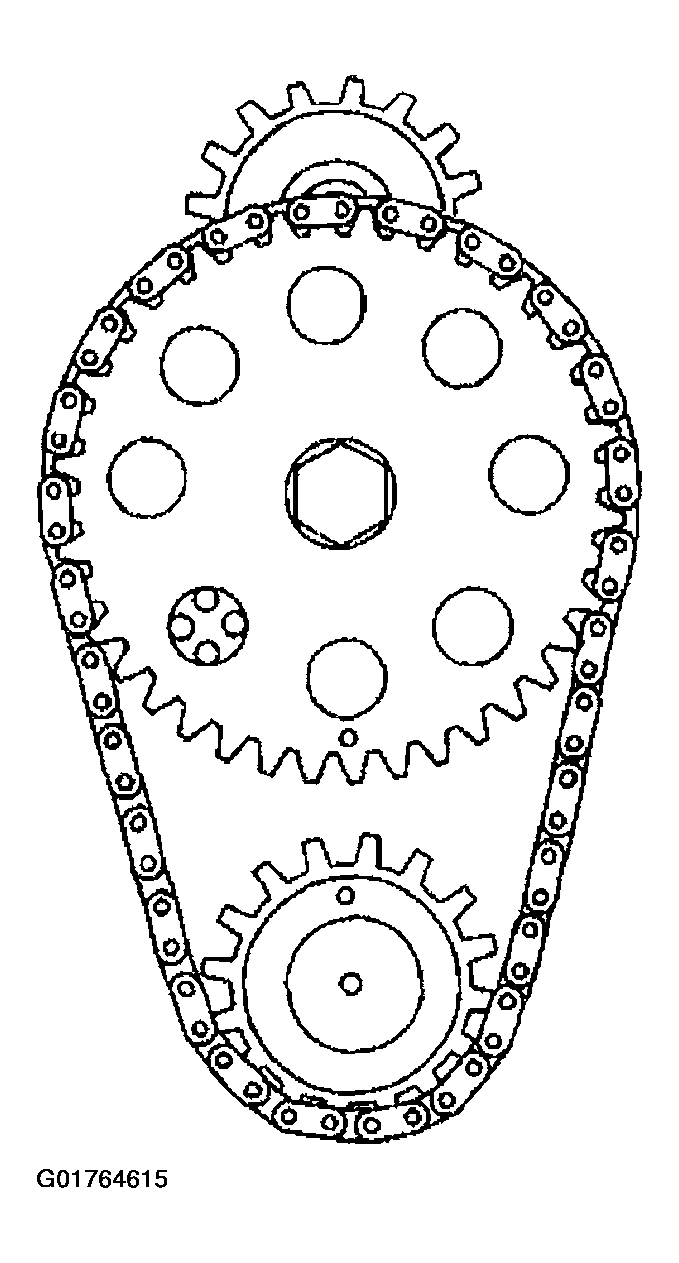

   Fig 1: Timing Marks

   Courtesy of GENERAL MOTORS CORP.
3. Install the timing chain, the crankshaft sprocket, and the camshaft sprocket.
4. Install the camshaft sprocket bolt.

   Tighten:

   Tighten the camshaft sprocket bolt to 100 N.m (74 lb ft). Use J 36660-A to tighten the camshaft sprocket bolt an additional 90 degrees

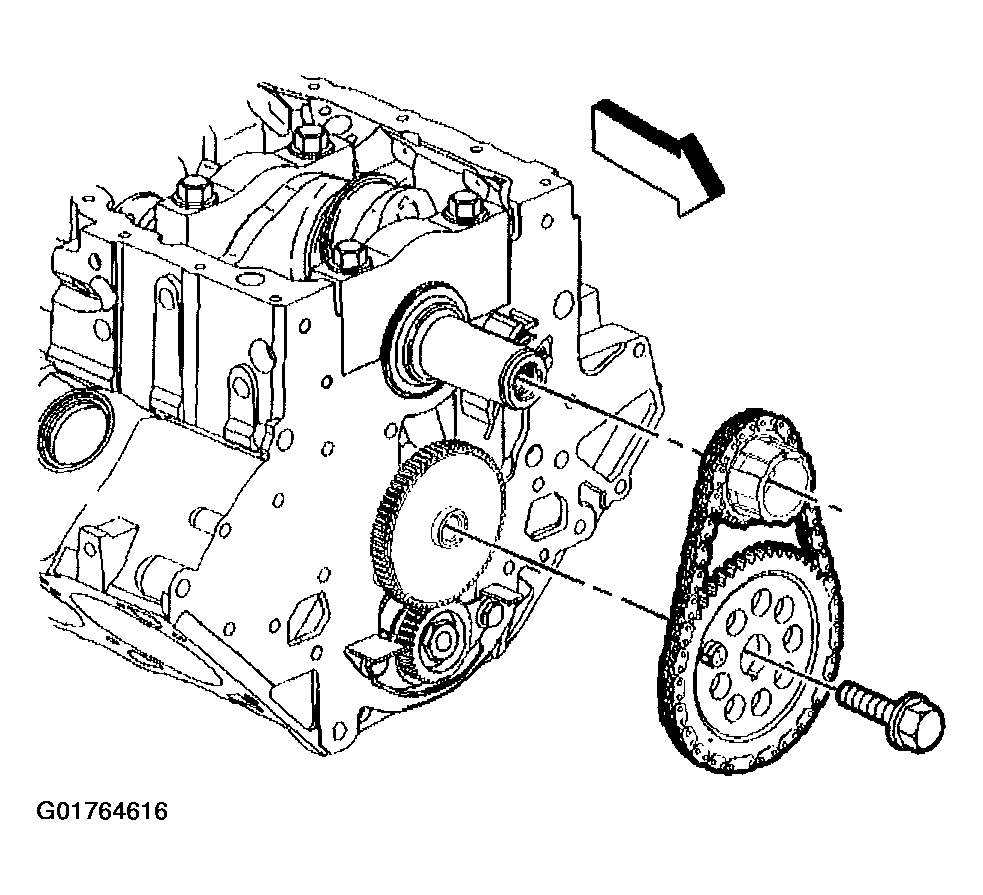

   Fig 2: Installing Timing Chain Assembly

   Courtesy of GENERAL MOTORS CORP.
5. Install the timing chain dampener.

   Tighten:

   Tighten the timing chain dampener bolt to 22 N.m (16 lb ft)

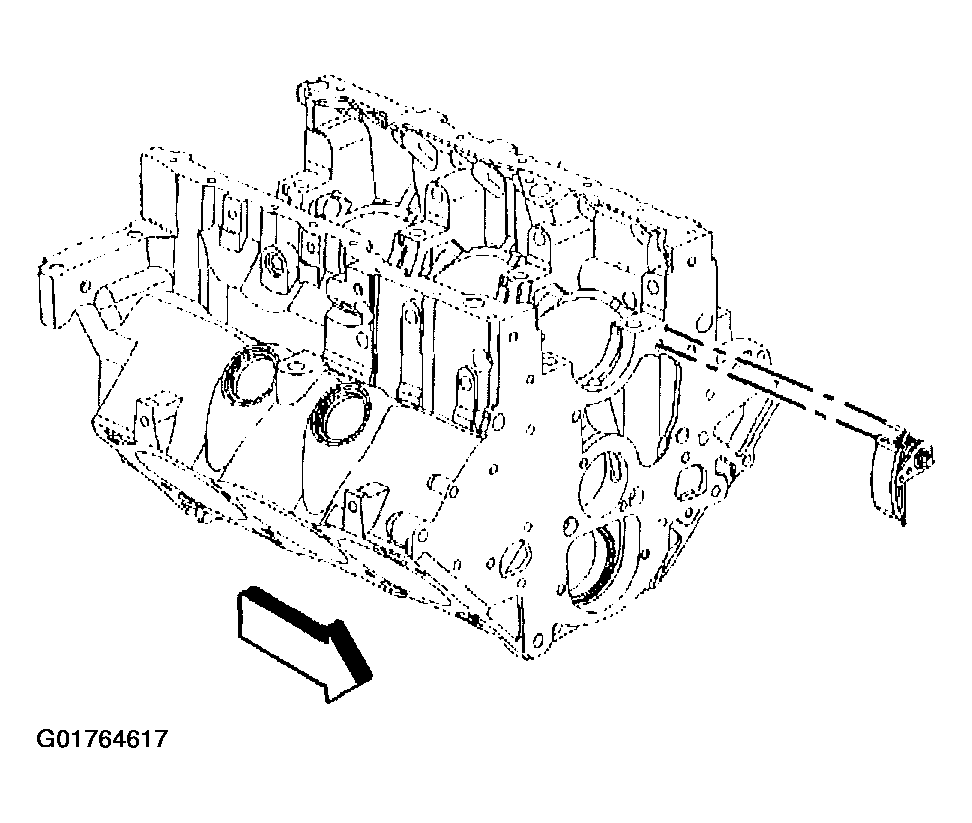

   Fig 3: Timing Chain Dampener

   Courtesy of GENERAL MOTORS CORP.
