Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator nut.
  2. Remove the oil level indicator.
  3. Remove the oil level indicator tube.

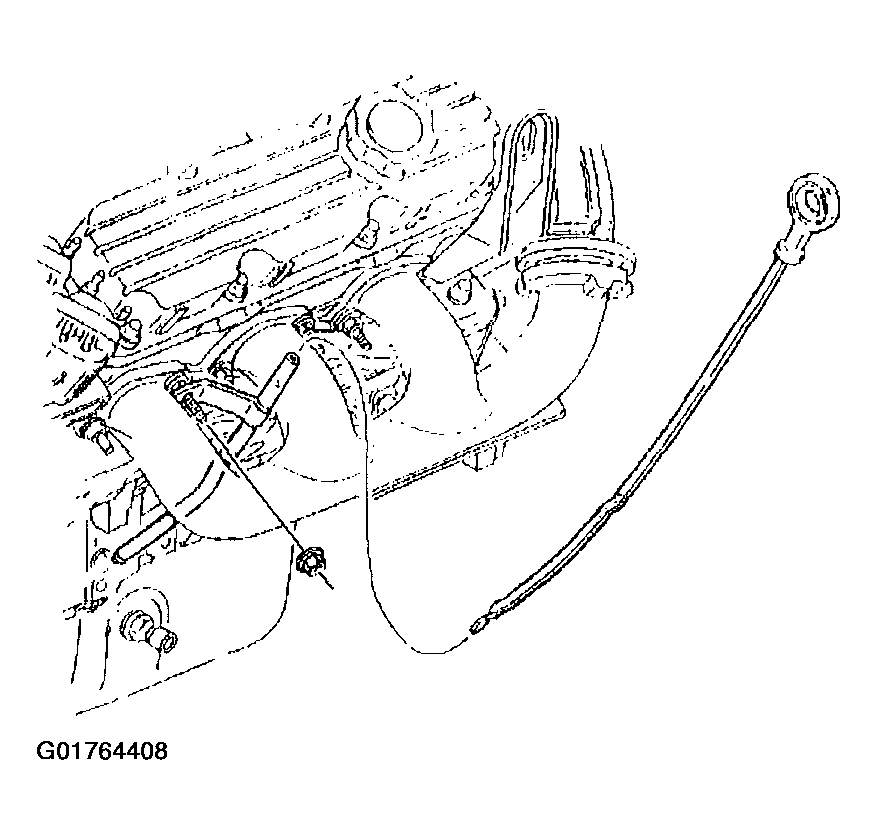

    Fig 1: Oil Level Indicator Tube
    G01764408Courtesy of GENERAL MOTORS CORP.
