Exhaust Manifold Removal - Right

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the EGR inlet pipe from the exhaust manifold.
  2. Remove the EGR mounting bracket bolts.
  3. Remove the EGR mounting bracket.

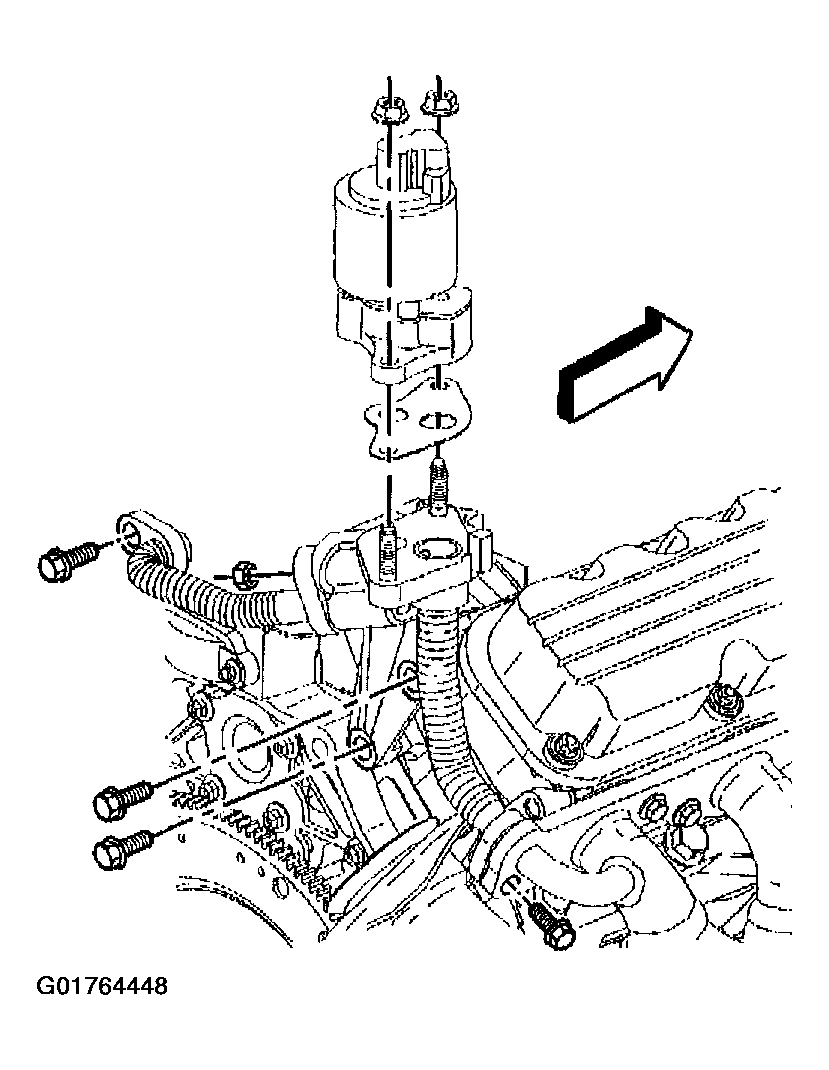

    Fig 1: EGR Inlet Pipe And Mounting Bracket
    G01764448Courtesy of GENERAL MOTORS CORP.
  4. Remove the heated oxygen sensor lead.

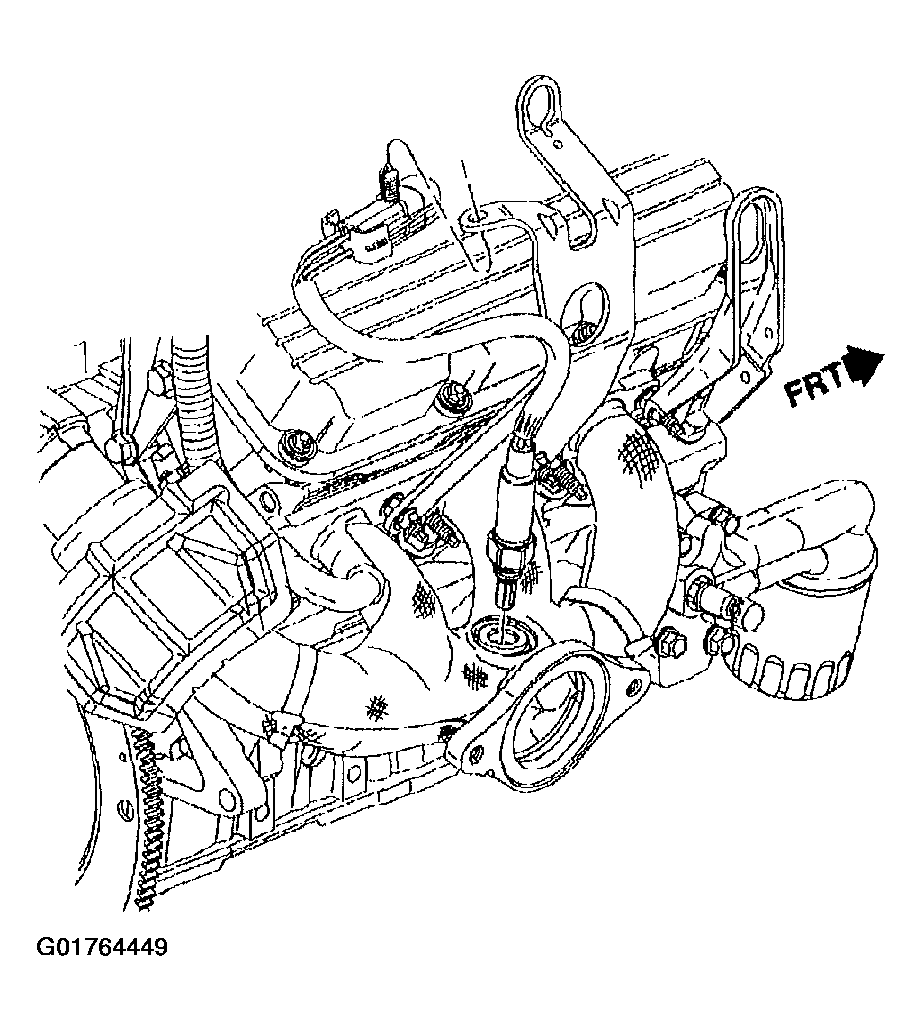

    Fig 2: Heated Oxygen Sensor Lead
    G01764449Courtesy of GENERAL MOTORS CORP.
  5. Remove the fuel injector sight shield mounting bracket nuts.
  6. Remove the fuel injector sight shield mounting bracket.

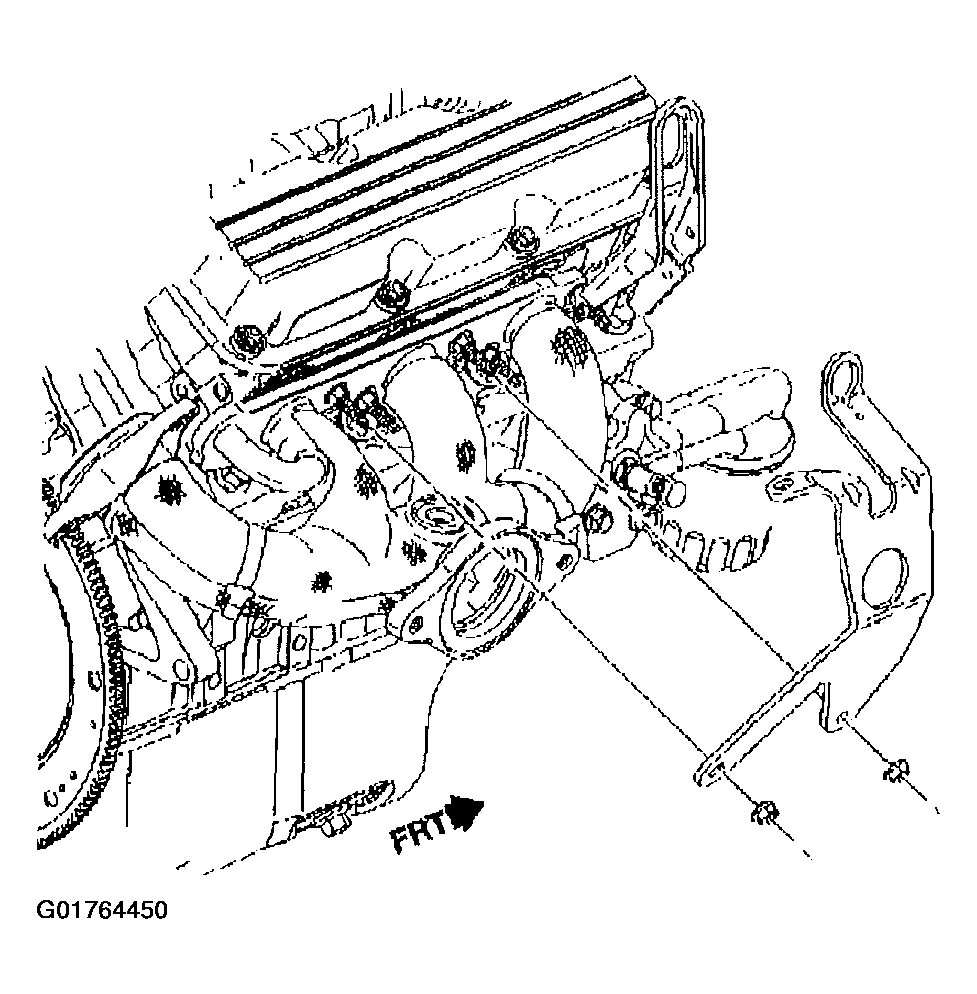

    Fig 3: Fuel Injector Sight Shield Mounting Bracket And Nuts
    G01764450Courtesy of GENERAL MOTORS CORP.
  7. Remove the right engine lift hook nut and bolt.
  8. Remove the right engine lift hook bracket.

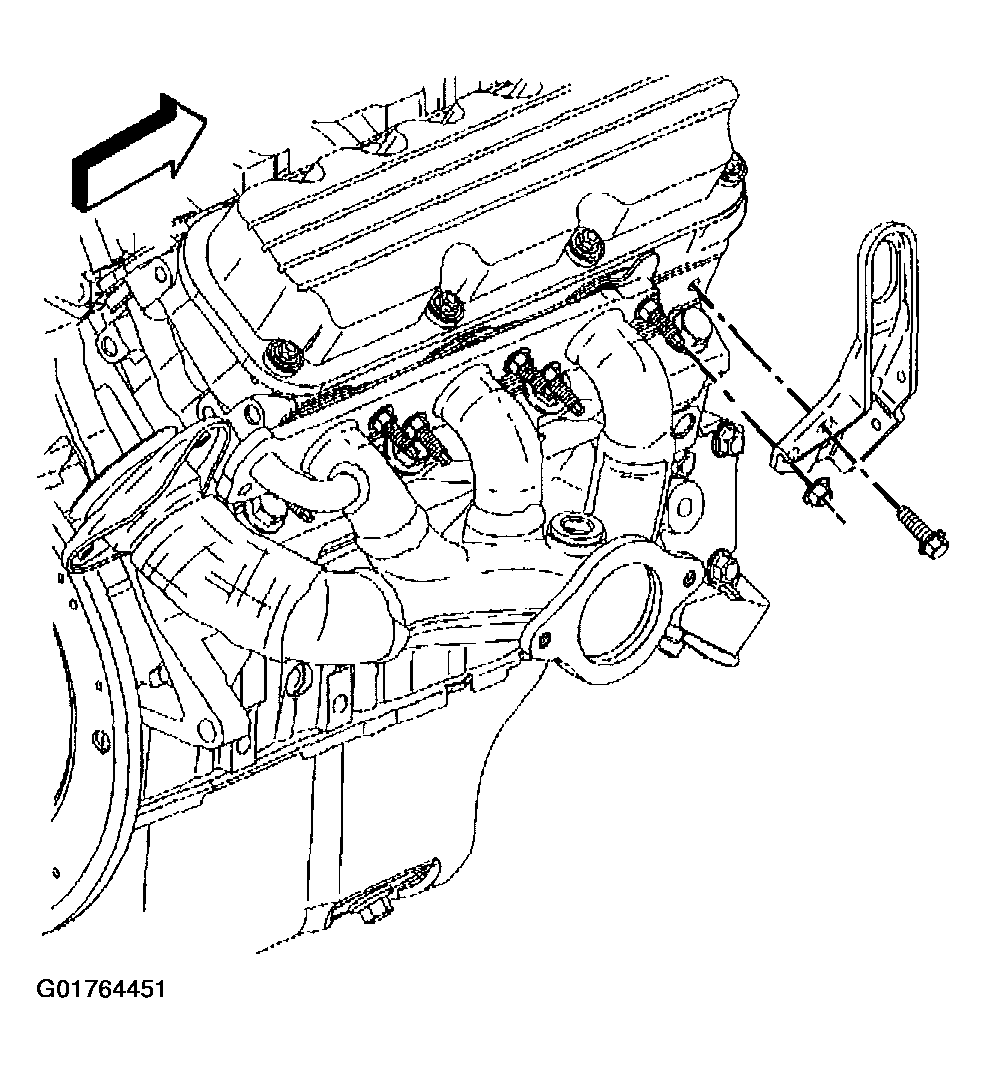

    Fig 4: Right Engine Lift Hook Bracket
    G01764451Courtesy of GENERAL MOTORS CORP.
  9. Remove the upper right exhaust manifold heat shield.

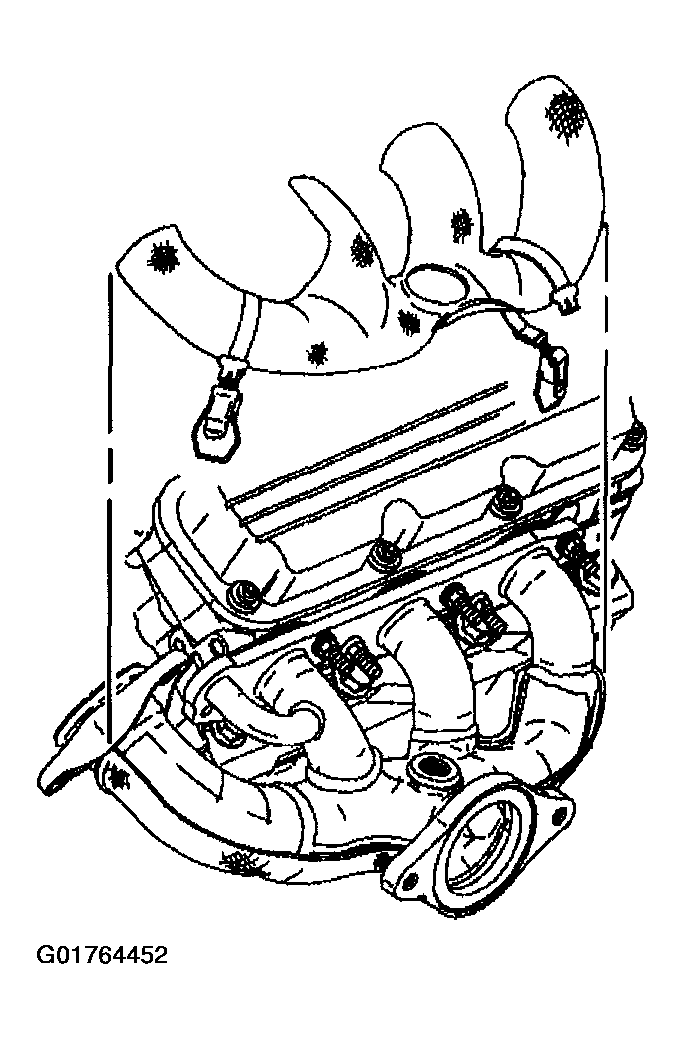

    Fig 5: Upper Right Exhaust Manifold Heat Shield.
    G01764452Courtesy of GENERAL MOTORS CORP.
  10. Remove the lower right exhaust manifold heat shield.
  11. Remove the right side spark plugs.

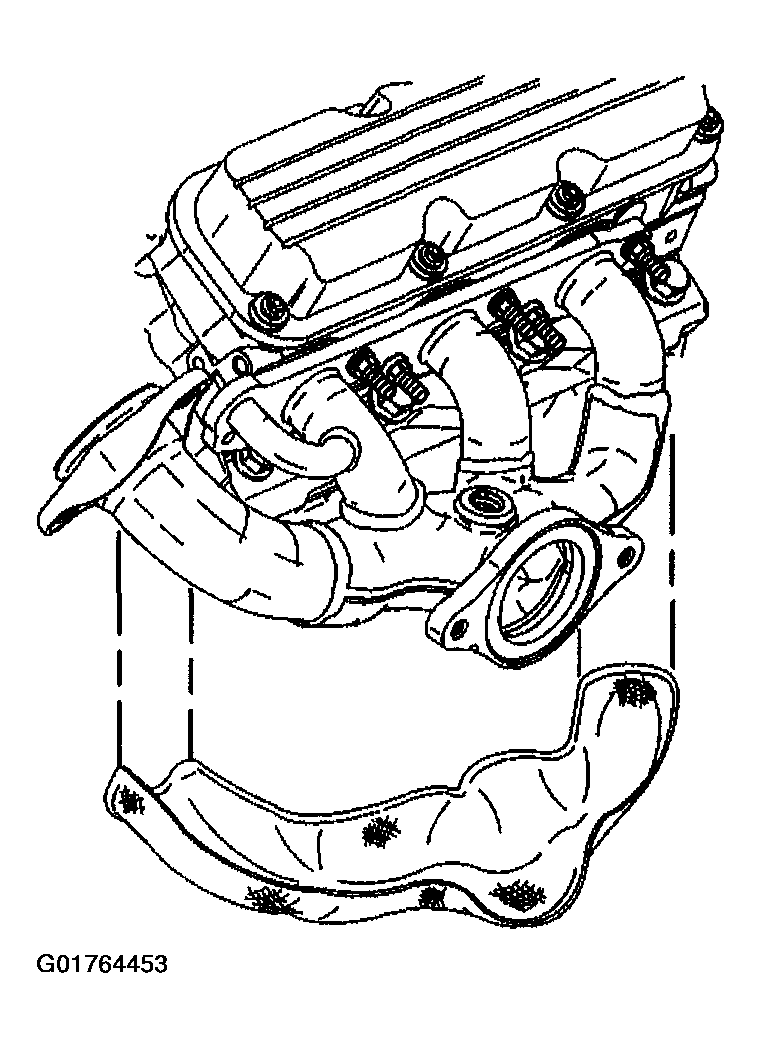

    Fig 6: Lower Right Exhaust Manifold Heat Shield
    G01764453Courtesy of GENERAL MOTORS CORP.
  12. Remove the exhaust manifold studs.
  13. Remove the exhaust manifold.
  14. Remove the exhaust manifold gasket.

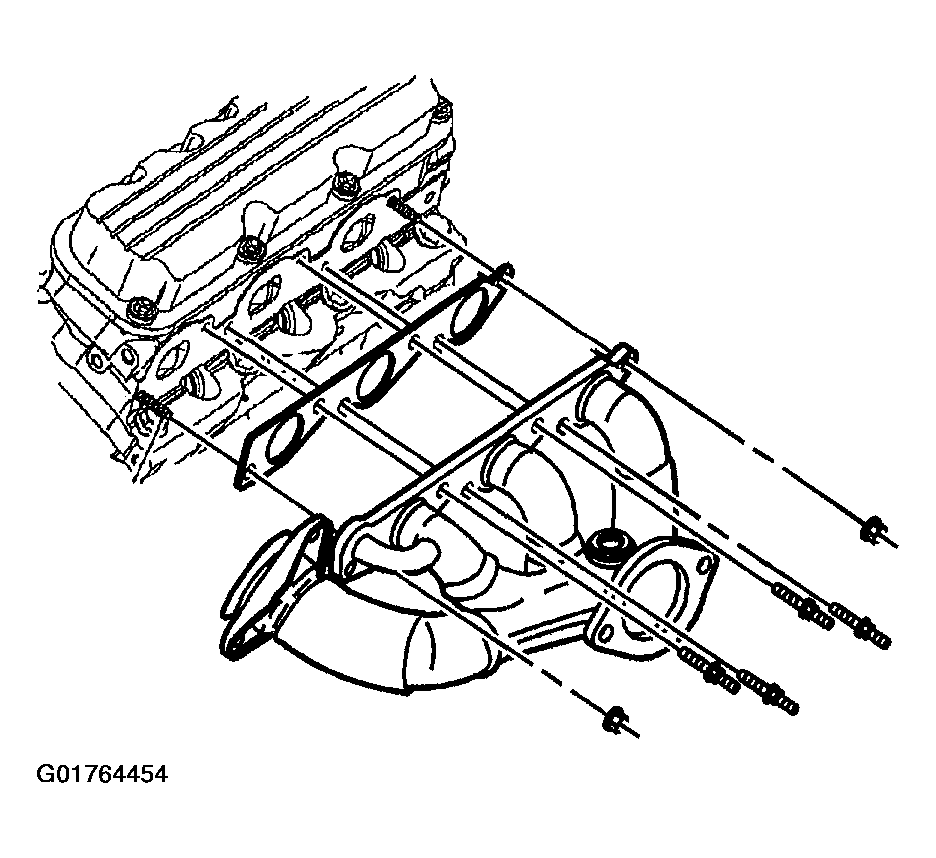

    Fig 7: Exhaust Manifold And Gasket
    G01764454Courtesy of GENERAL MOTORS CORP.
  15. Remove the exhaust manifold studs.

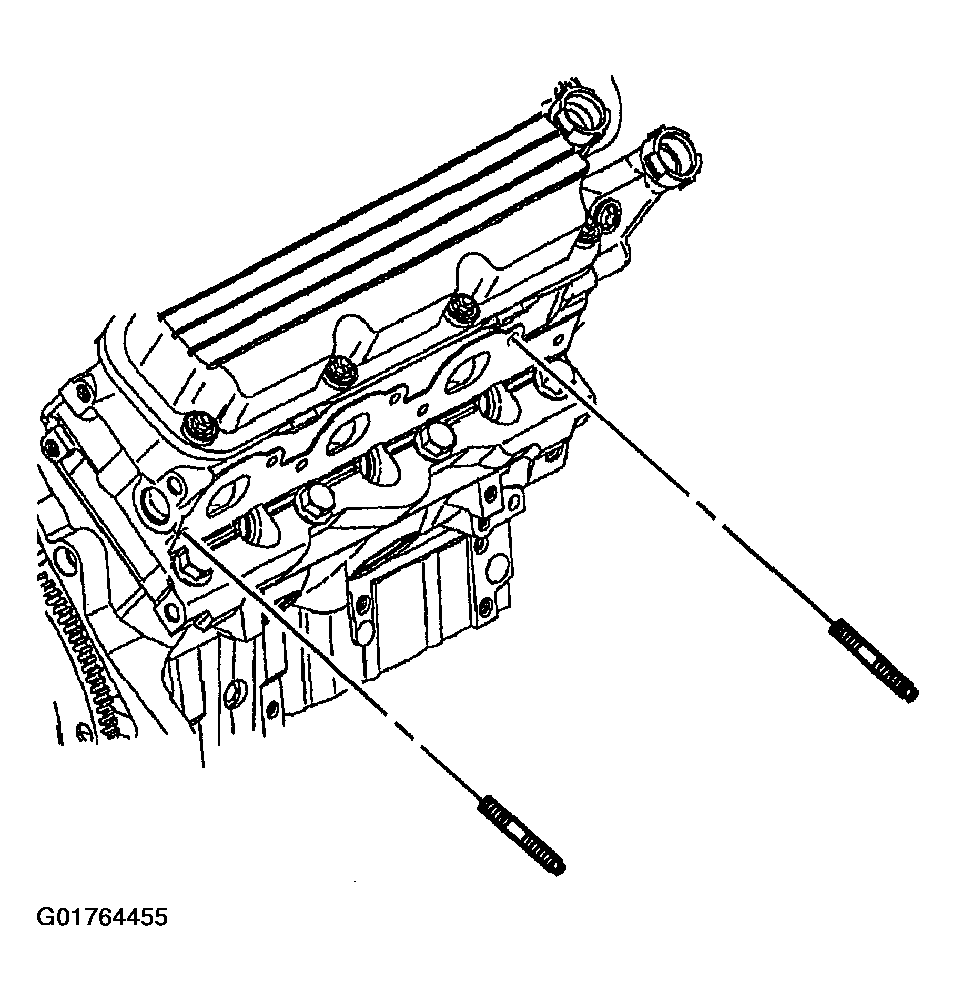

    Fig 8: Exhaust Manifold Studs
    G01764455Courtesy of GENERAL MOTORS CORP.
