Exhaust Manifold Installation - Left

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Install the exhaust manifold studs.
Tighten:

Tighten the exhaust manifold studs to 10 N.m (89 lb in)

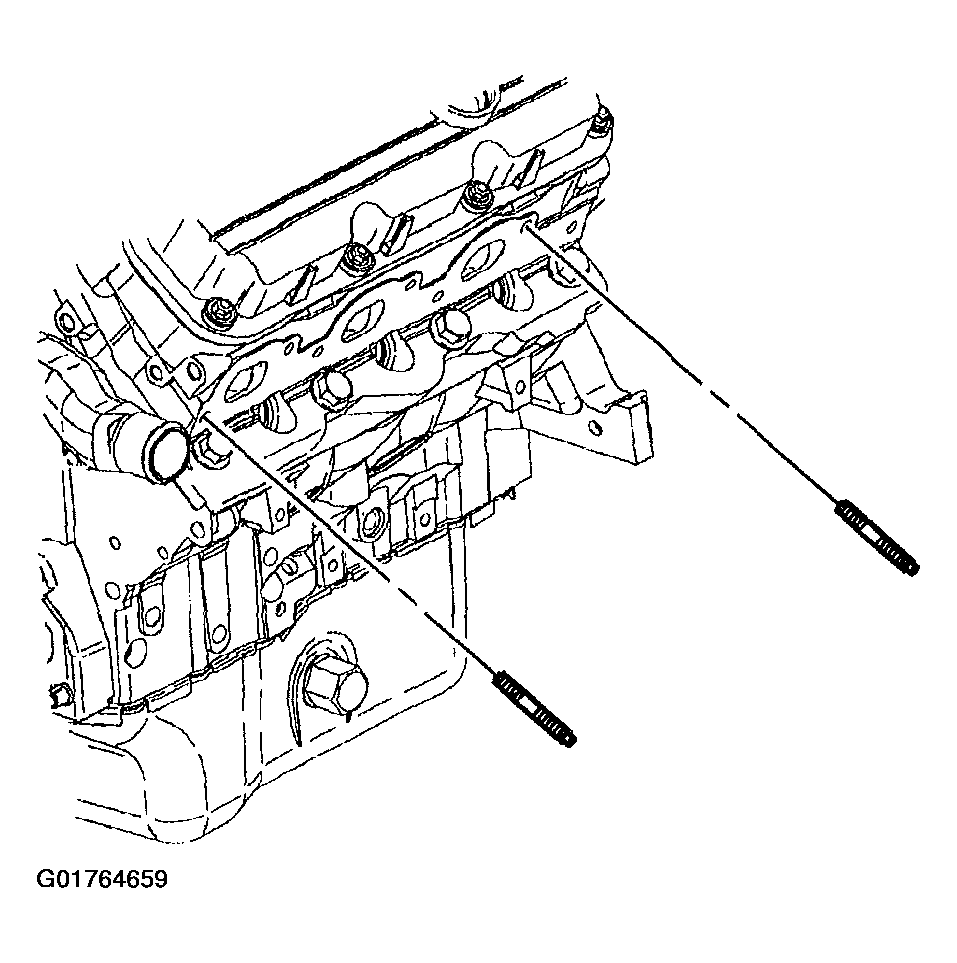

Fig 1: Exhaust Manifold Studs
Courtesy of GENERAL MOTORS CORP.
Install the exhaust manifold gasket.
Install the exhaust manifold.
Install the exhaust manifold bolts and nuts.
Tighten:

Tighten the exhaust manifold bolts and nuts to 30 N.m (22 lb ft)

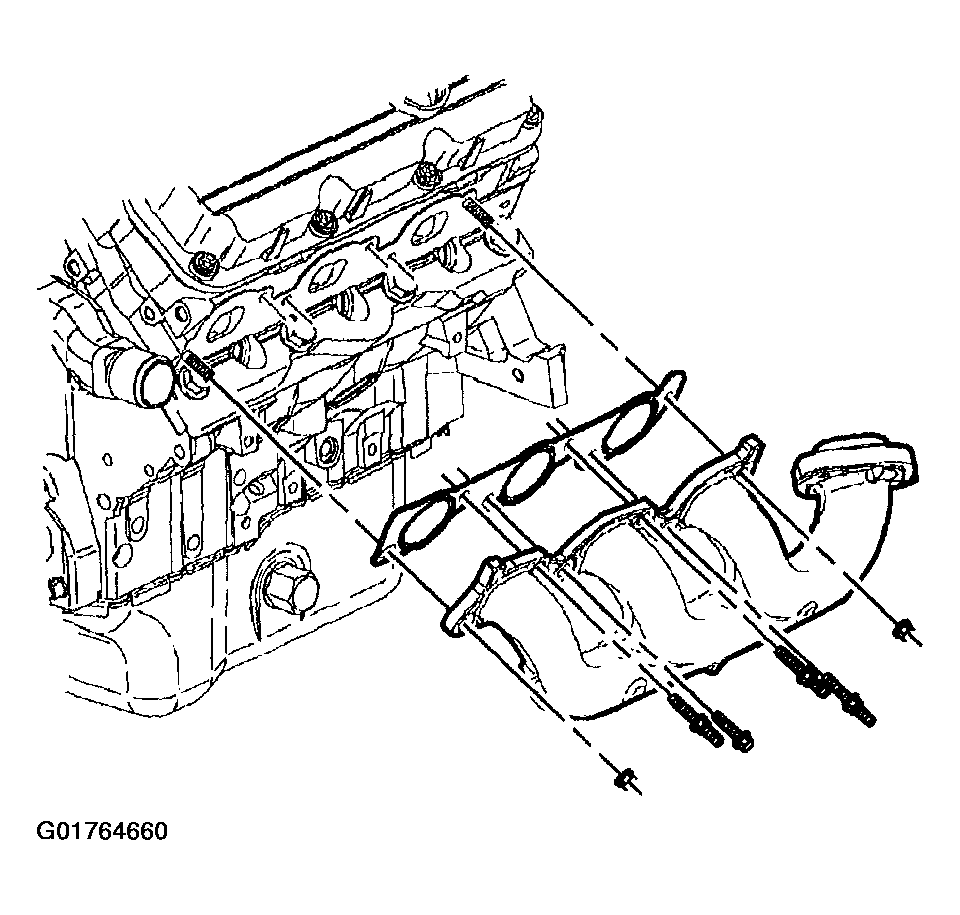

Fig 2: Exhaust Manifold And Gasket
Courtesy of GENERAL MOTORS CORP.
Install the left side spark plugs.
Tighten:
- Tighten the spark plugs to 27 N.m (20 lb ft) when installing the spark plugs in to a new cylinder head.
- Tighten the spark plugs to 15 N.m (13 lb ft) when re-installing the spark plugs after initial installation.
Install the left engine lift hook.
Install the left engine lift hook nut and bolt.
Tighten:

Tighten the left engine lift hook nut and bolt to 30 N.m (22 lb ft)

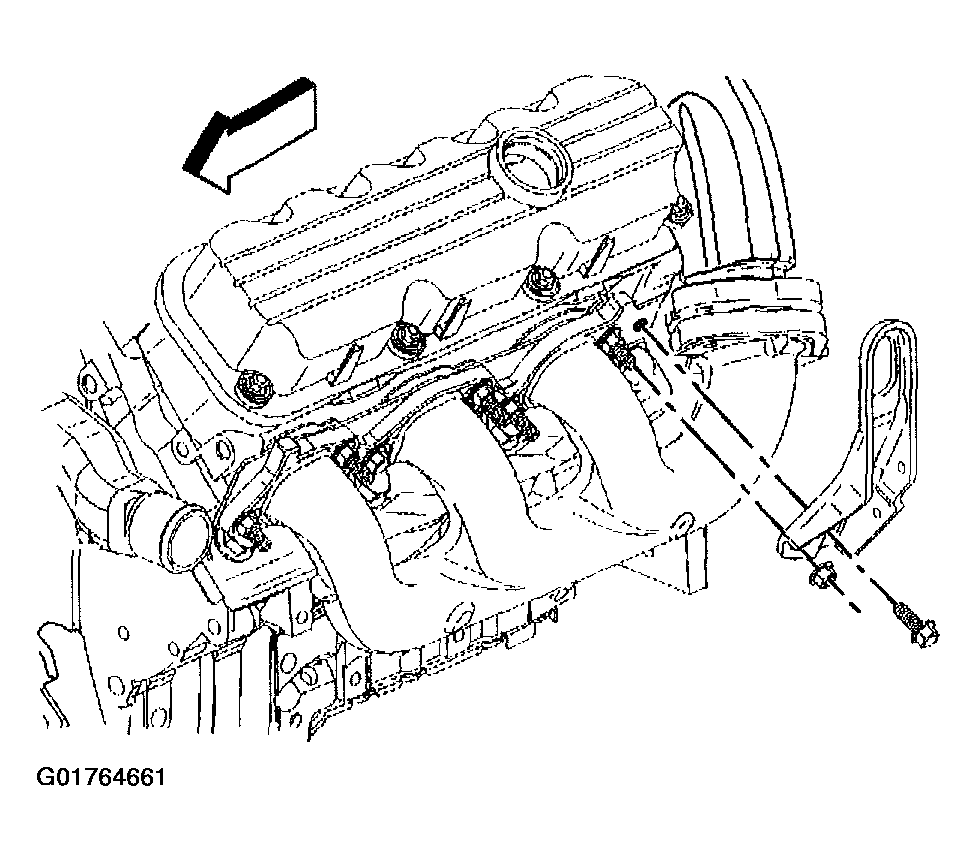

Fig 3: Left Engine Lift Hook
Courtesy of GENERAL MOTORS CORP.
Install the left exhaust manifold heat shield.
Install the left exhaust manifold heat shield nuts.
Tighten:

Tighten the left exhaust manifold heat shield nuts to 20 N.m (15 lb ft)

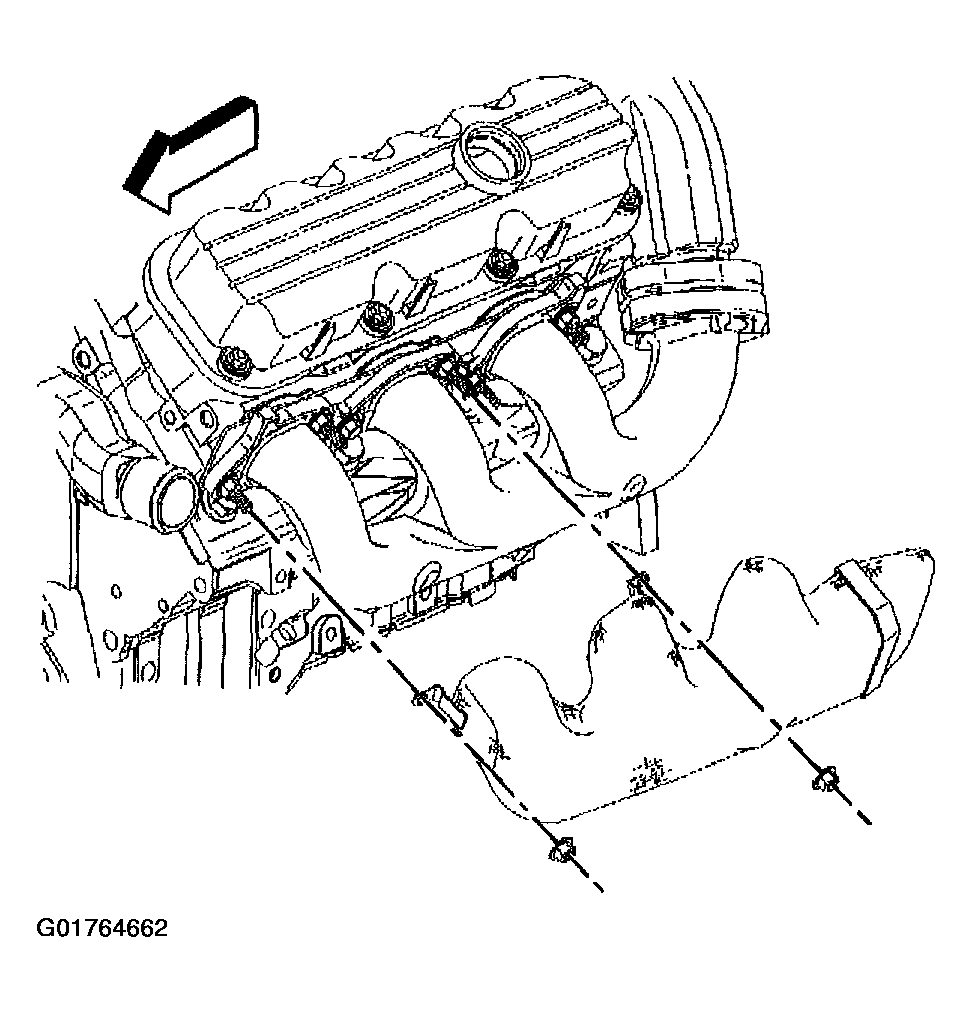

Fig 4: Left Exhaust Manifold Heat Shield
Courtesy of GENERAL MOTORS CORP.
