Drive Belt Tensioner Installation - Right

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner bracket.
  2. Install the drive belt tensioner bracket bolts.

    Tighten:

    Tighten the drive belt tensioner bolts to 50 N.m (37 lb ft)

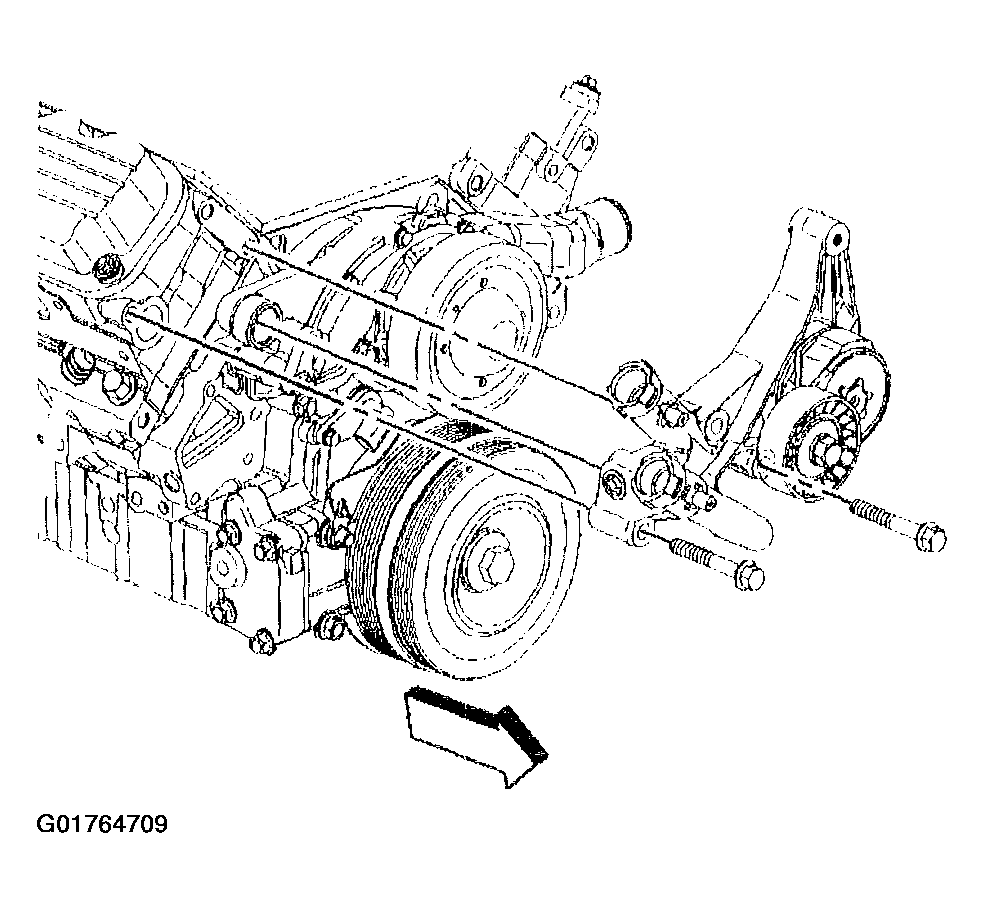

    Fig 1: Drive Belt Tensioner Bracket, Right
    G01764709Courtesy of GENERAL MOTORS CORP.
