Balance Shaft Bearing and/or Bushing Removal

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required: J 36995 Balance Shaft Bearing Remover/Installer

Use J 36995 to remove the balance shaft bearing.
Use J 36995 to remove the balance shaft bushing. It may take a considerable amount of force to loosen the bushing from the block bore.

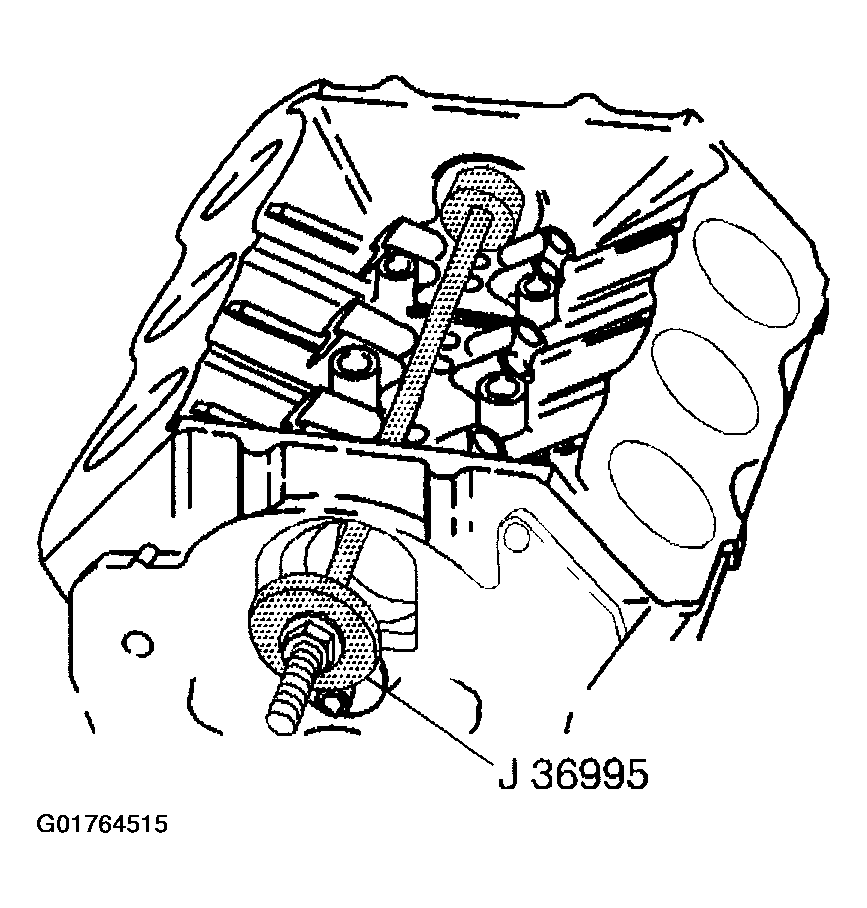

Fig 1: Removing Balance Shaft Bearing And/Or Bushing Removal
Courtesy of GENERAL MOTORS CORP.
