Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new O-ring (4) and the PCV valve (3).
  2. Install the access cover (2).
  3. Install the MAP sensor (1).

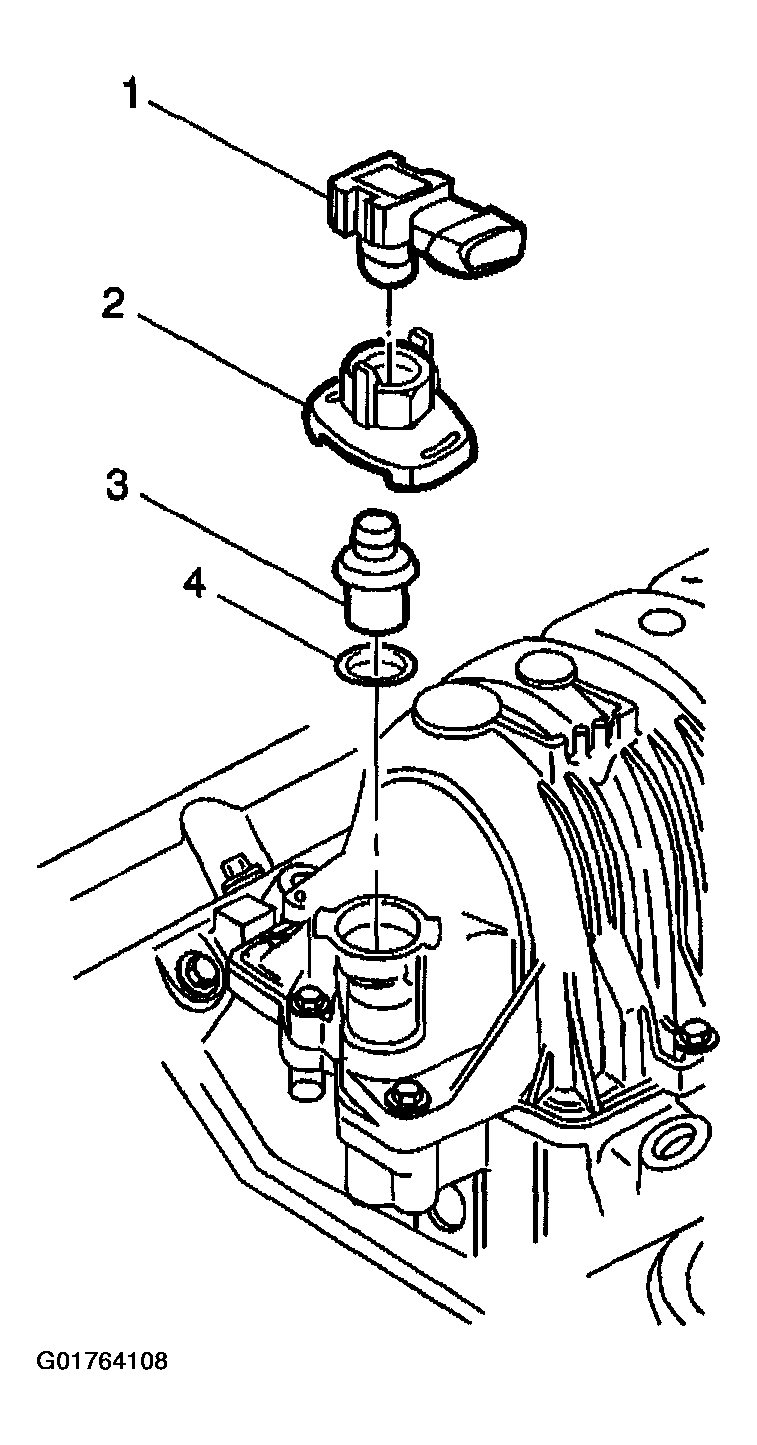

    4. Fig 1: PCV Valve, The O-Ring And MAP Sensor
    G01764108Courtesy of GENERAL MOTORS CORP.
  4. Connect the MAP sensor electrical connector.
  5. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36)
