Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. Refer to Engine Front Cover Replacement .
  2. Remove the oil pump cover attaching screws.
  3. Remove the oil pump cover.
  4. Remove the oil pump gear set.
  5. Inspect the oil pump gear set and housing. Refer to OIL PUMP CLEANING AND INSPECTION

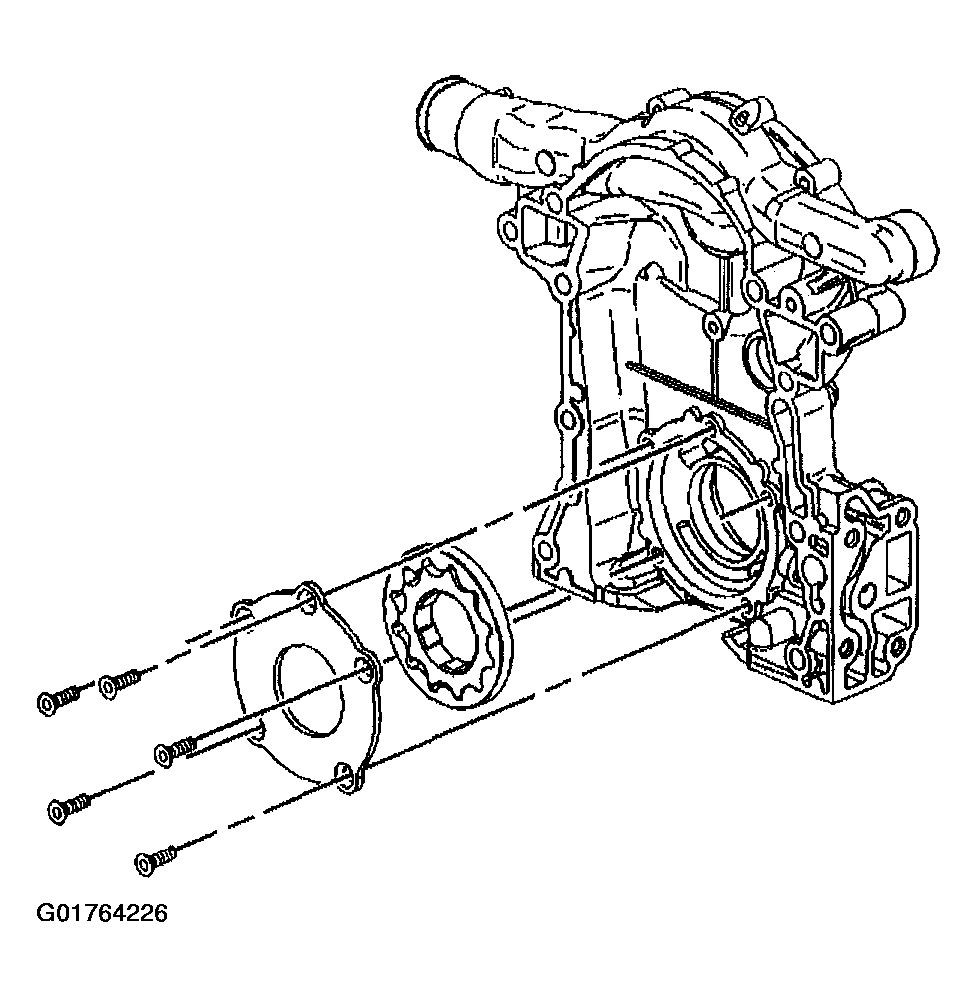

    Fig 1: Oil Pump Cover And Components
    G01764226Courtesy of GENERAL MOTORS CORP.
