Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil indicator tube to the engine. Ensure that the O-ring is in place. Ensure that the oil level indicator tube is fully seated in the engine.
  2. Slide the oil indicator tube bracket onto the exhaust manifold stud.
  3. Install the oil level indicator tube bracket nut on the exhaust manifold stud.

    Tighten:

    Tighten the oil level indicator tube bracket nut to 19 N.m (14 lb ft)

  4. Install the oil level indicator.

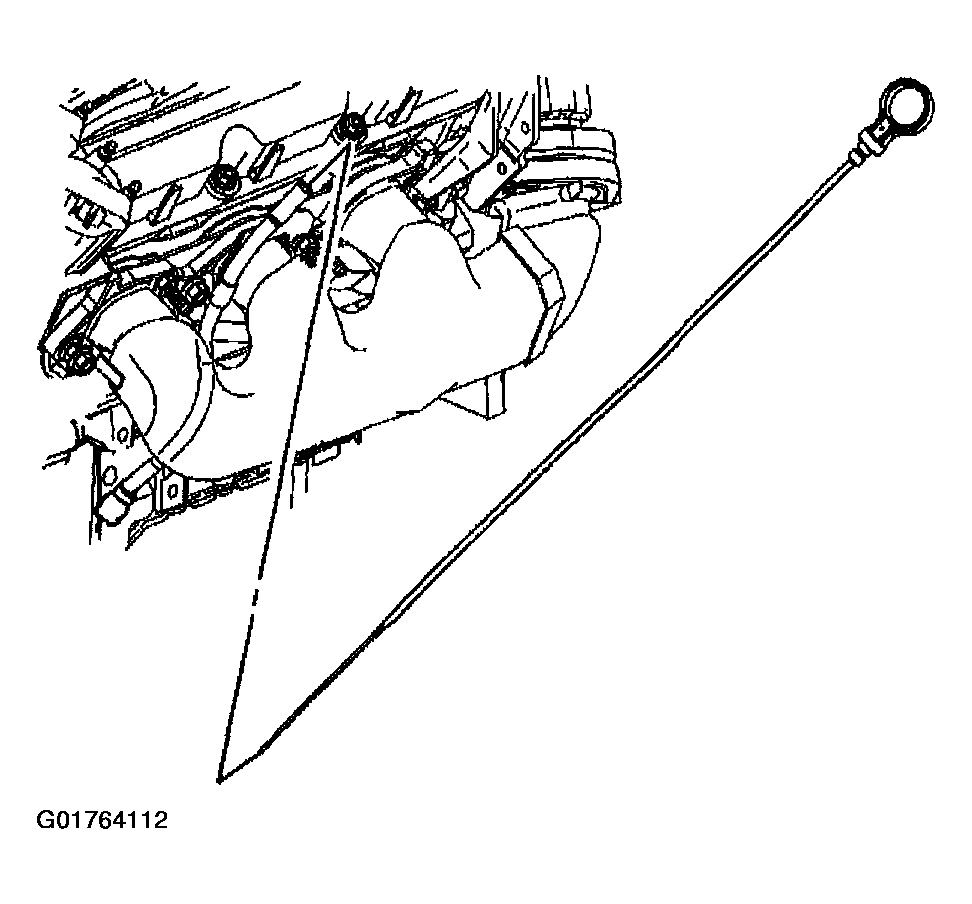

    Fig 1: Oil Level Indicator
    G01764112Courtesy of GENERAL MOTORS CORP.
