Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the hood.
  2. Disconnect the negative battery cable.
  3. Remove the cross vehicle brace. Refer to BRACE REPLACEMENT - CROSS VEHICLE in BODY FRONT END .
  4. Remove the hood side rear seal from the pinchweld flange.

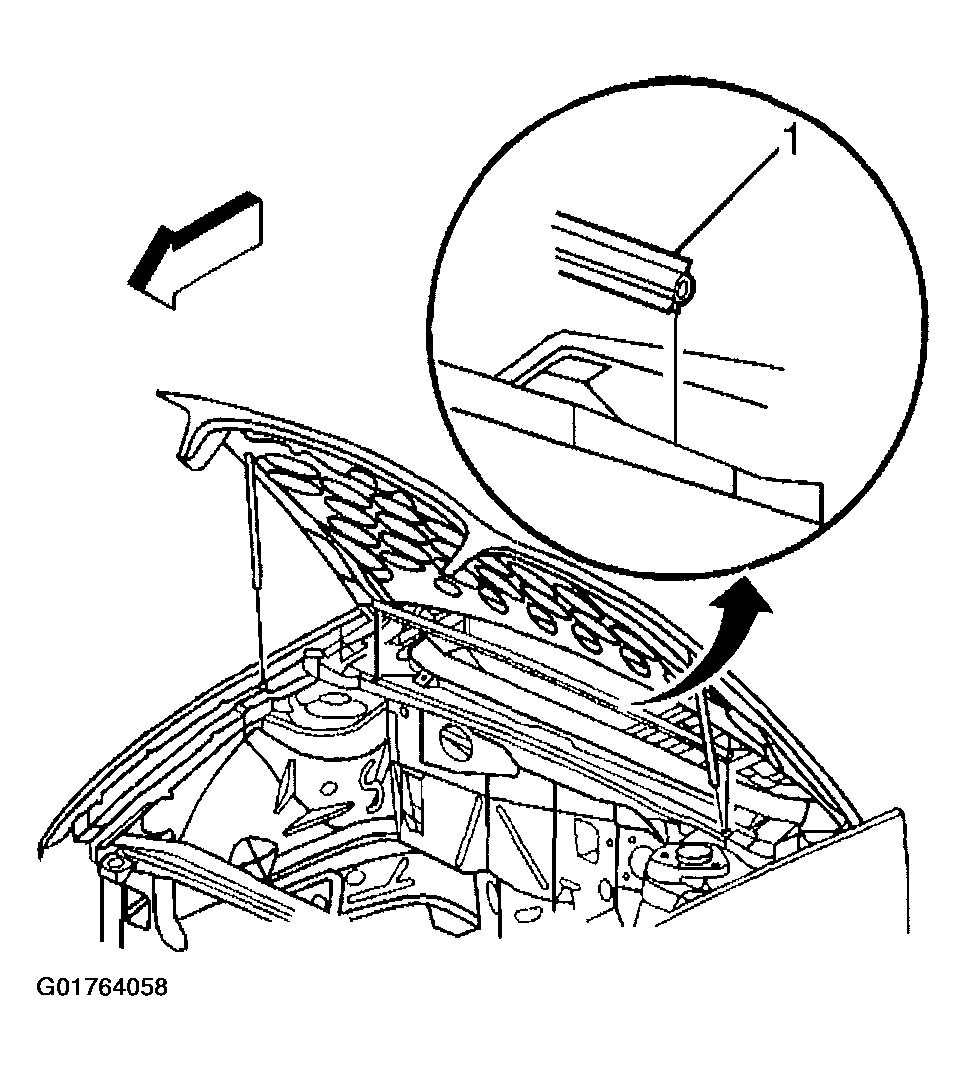

    Fig 1: Remove The Hood Side Rear Seal From The Pinchweld Flange
    G01764058Courtesy of GENERAL MOTORS CORP.

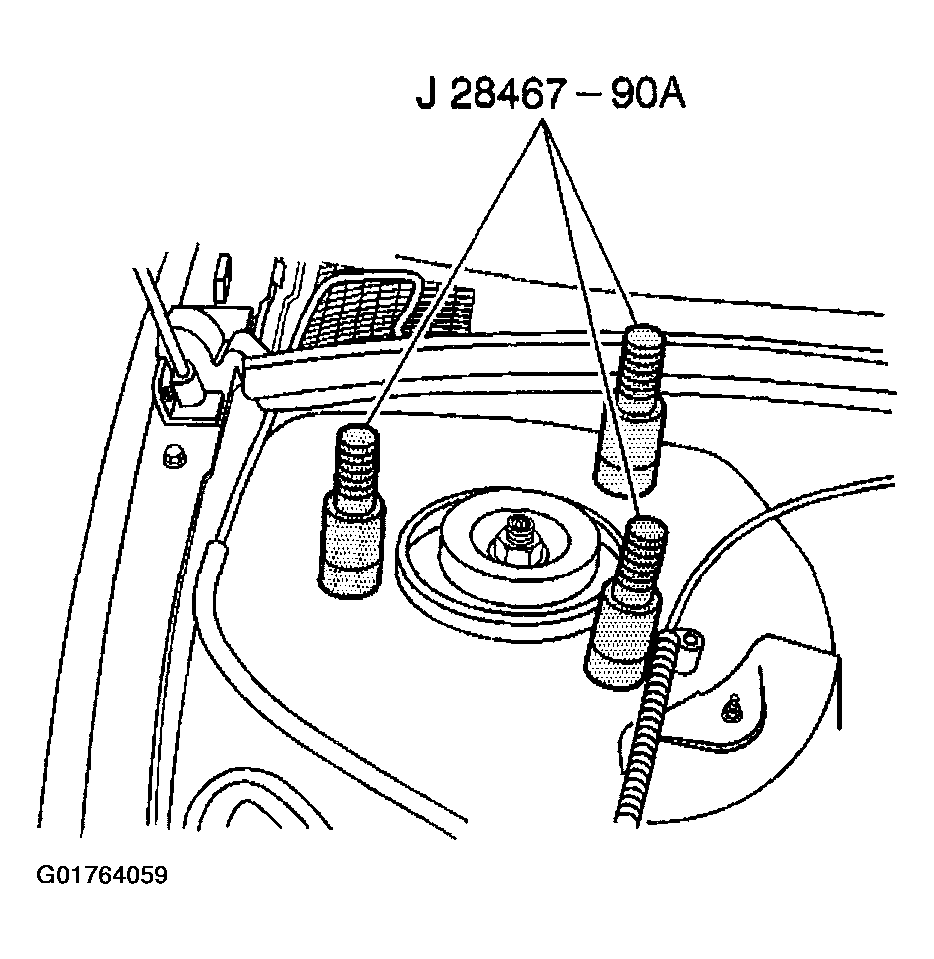

  5. Install the J 28467-90A onto the strut attaching studs.
    Fig 2: Install The J 28467-90A Onto The Strut Attaching Studs
    G01764059Courtesy of GENERAL MOTORS CORP.
  6. Install the strut tower support assemblies J 28467-5A over the J 28467-90A.

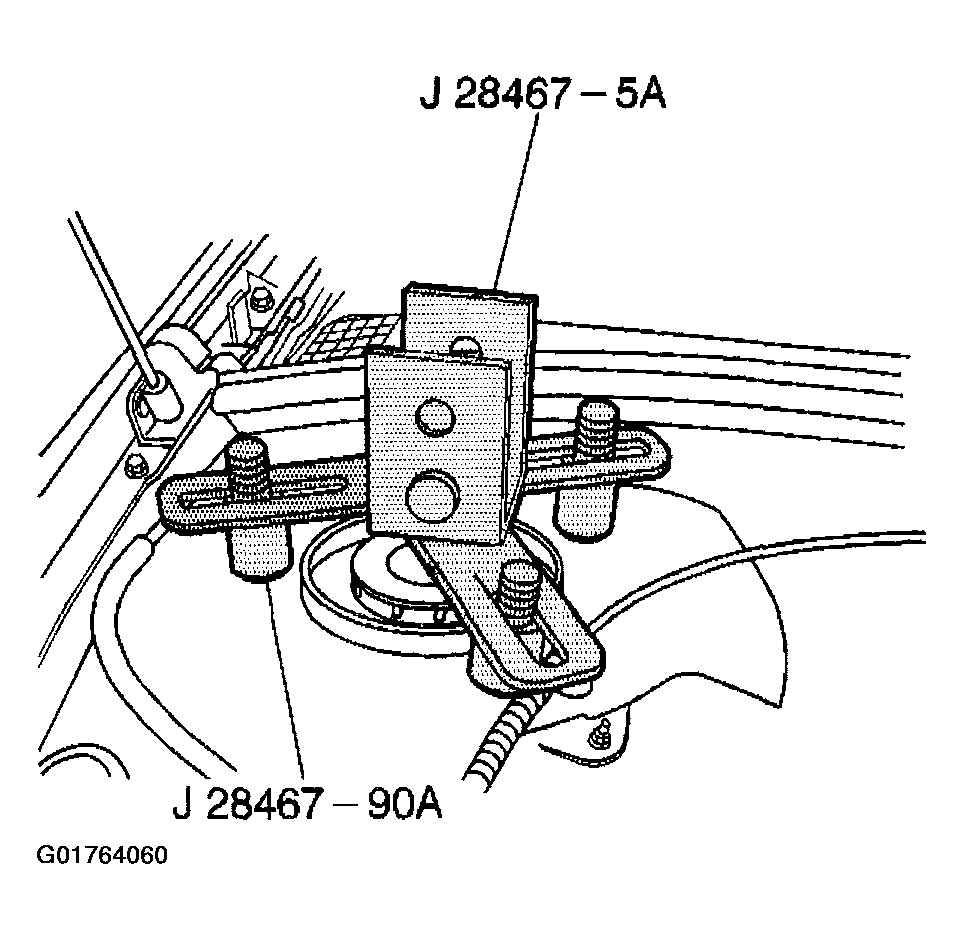

    Fig 3: Install The Strut Tower Support Assemblies
    G01764060Courtesy of GENERAL MOTORS CORP.

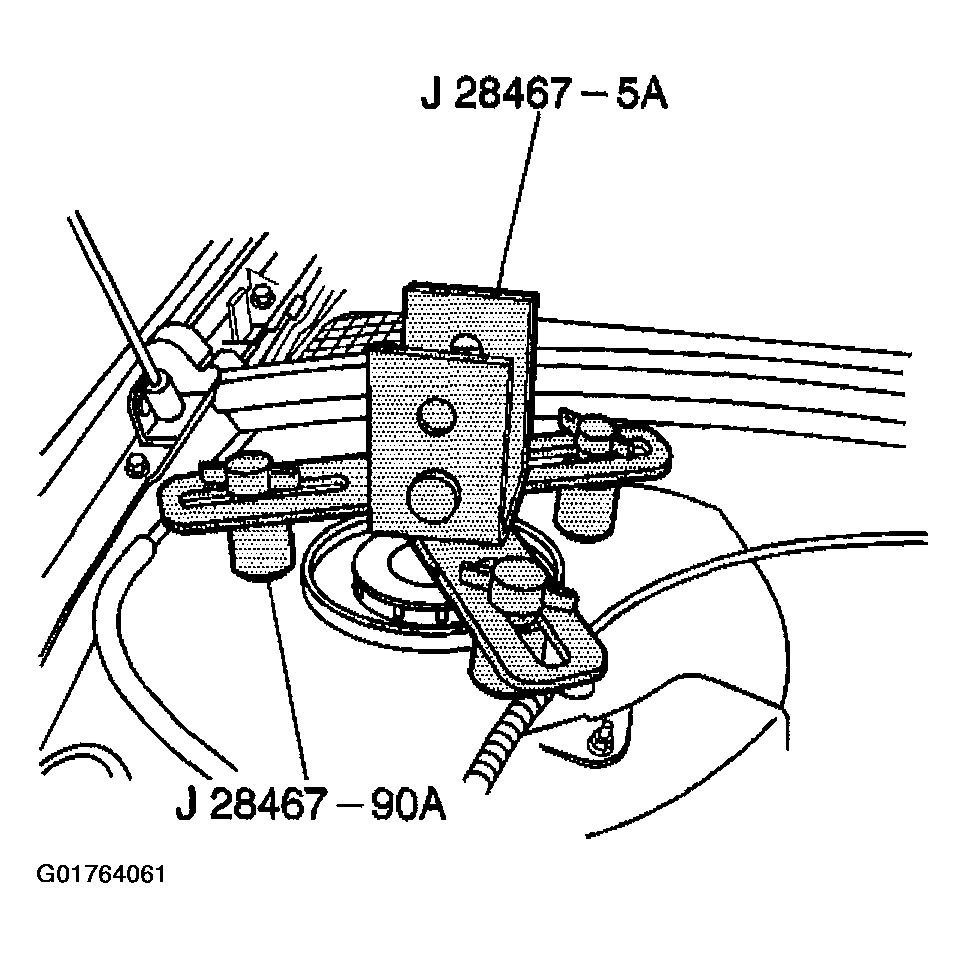

  7. Install the wing nuts to the J 28467-90A.
    Fig 4: Install The Wing Nuts To The J 28467-90A
    G01764061Courtesy of GENERAL MOTORS CORP.
  8. Install the strut tower tube J 28467-3 into the strut tower support assemblies J 28467-5A.

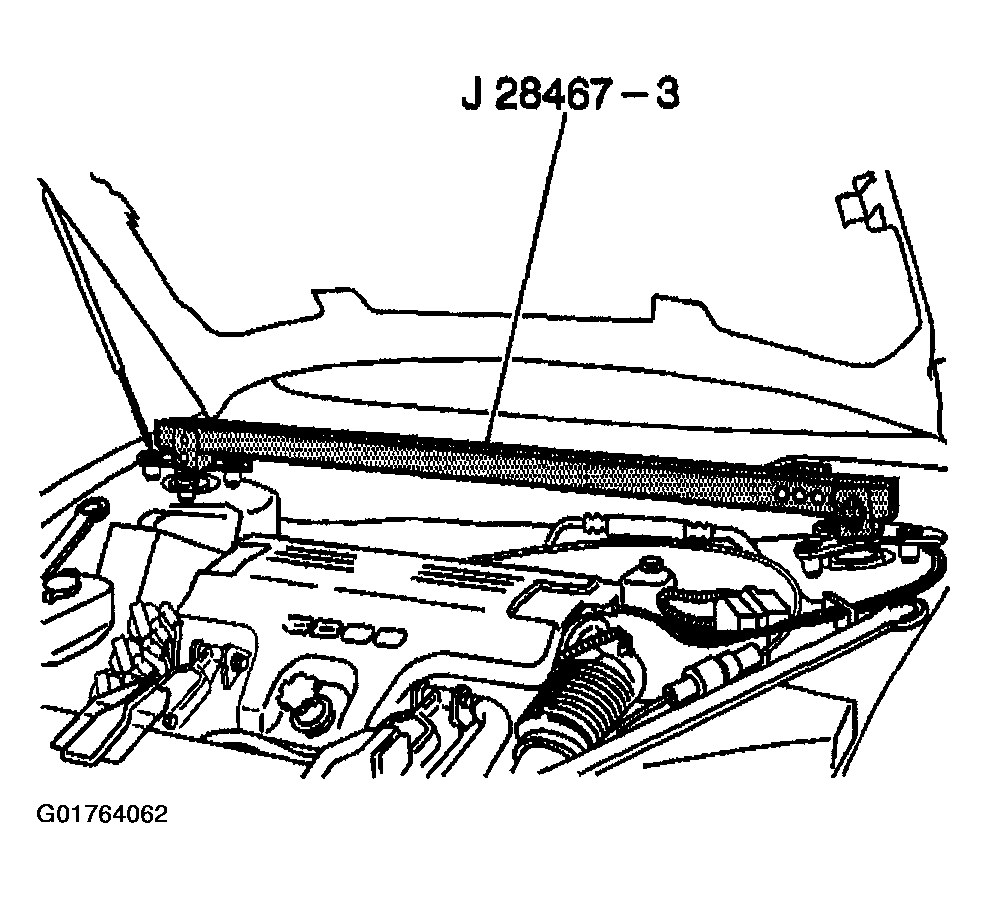

    Fig 5: Install The Strut Tower Tube J 28467-3 Into The Strut Tower Support Assemblies J 28467-5A
    G01764062Courtesy of GENERAL MOTORS CORP.
  9. Install the 1/2 inch x 2.5 inch quick release pin J 28467-10 through the strut tower support assemblies J 28467-5A and the strut tower tube J 28467-3 on one side only.

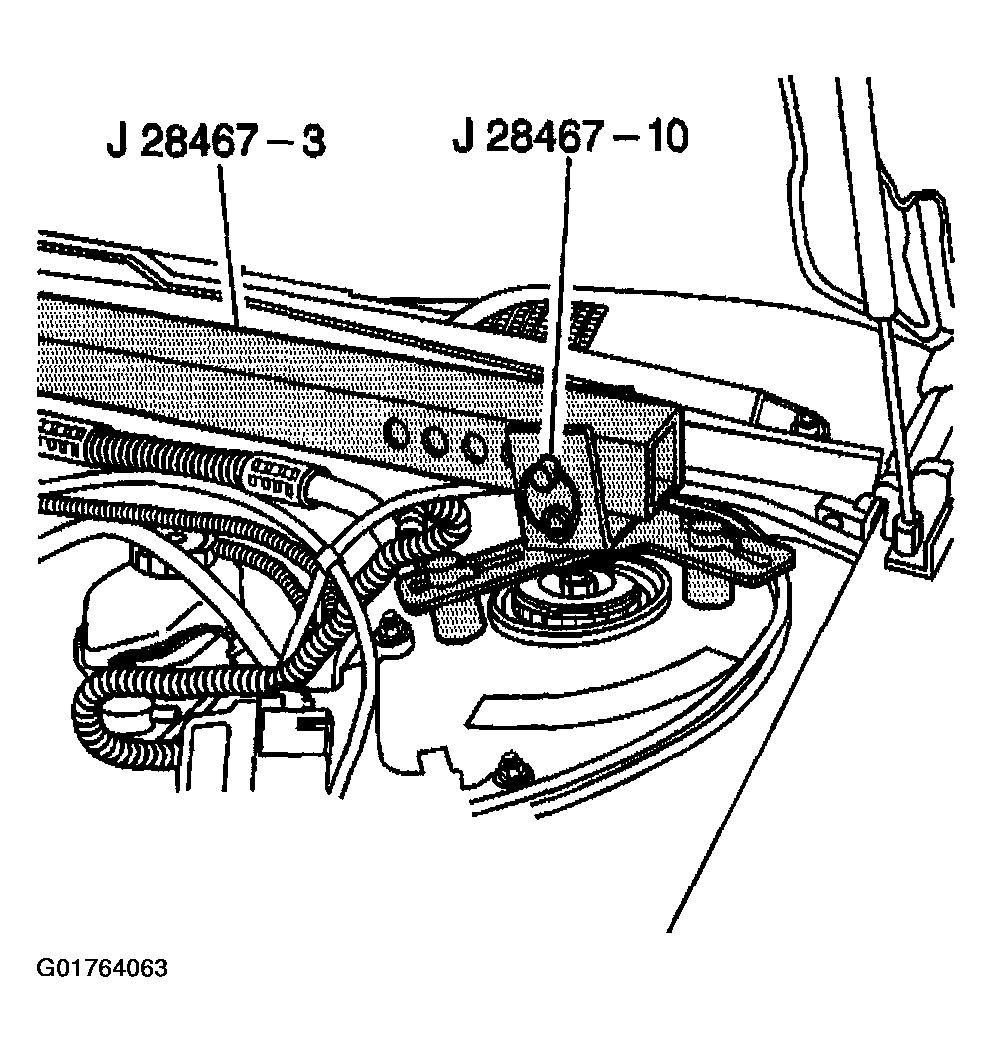

    Fig 6: Strut Tower Support Assemblies
    G01764063Courtesy of GENERAL MOTORS CORP.
  10. Install the radiator shelf tube J 28467-2A on the top of the strut tower tube J 28467-3 on the driver side.
  11. Install the round tube of the front support assembly J 28467-4A through the large hole in the radiator shelf tube J 28467-2A.

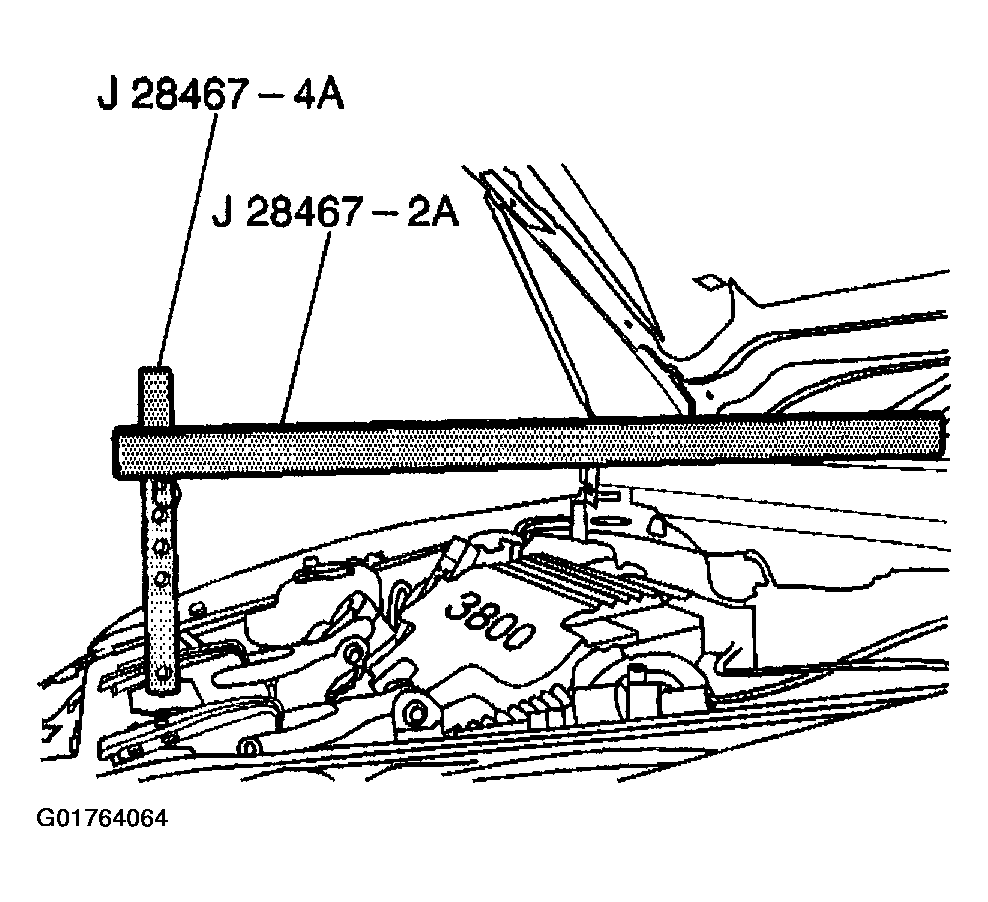

    Fig 7: Setting Up Engine Support
    G01764064Courtesy of GENERAL MOTORS CORP.
  12. Install the 7/16 inch x 2.0 inch quick release pin J 28467-9 through the hole in the front support assembly J 28467-4A in order to level the radiator shelf tube J 28467-2A.

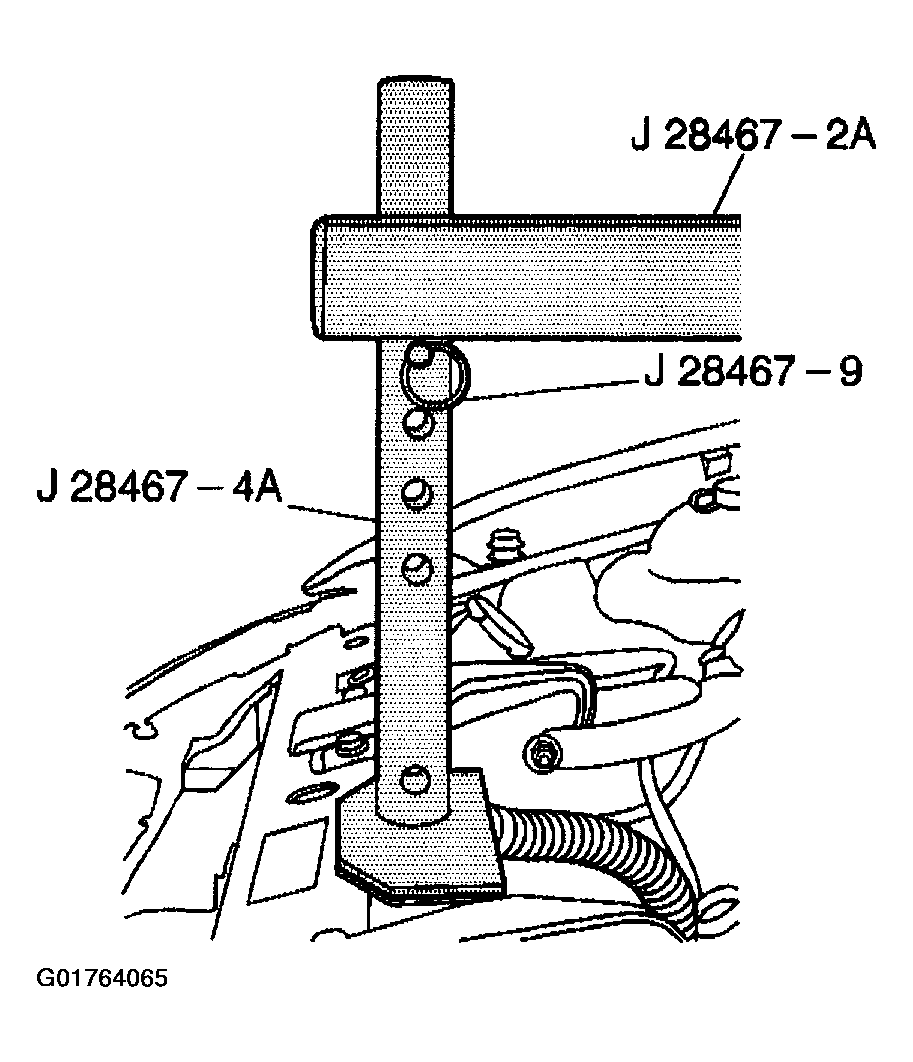

    Fig 8: Install The 7/16 Inch X 2.0 Inch Quick Release Pin
    G01764065Courtesy of GENERAL MOTORS CORP.
  13. Install the cross bracket assembly J 28467-1A.
  14. Install the lift hook J 28467-7A through the lift hook bracket J 28467-6A.
  15. Install the 1/2 inch lift hook washer and lift hook wing nut J 28467-34 onto the lift hook J 28467-7A.
  16. Install the assembled lift hook bracket J 28467-6A over the passenger side radiator shelf tube J 28467-2A.

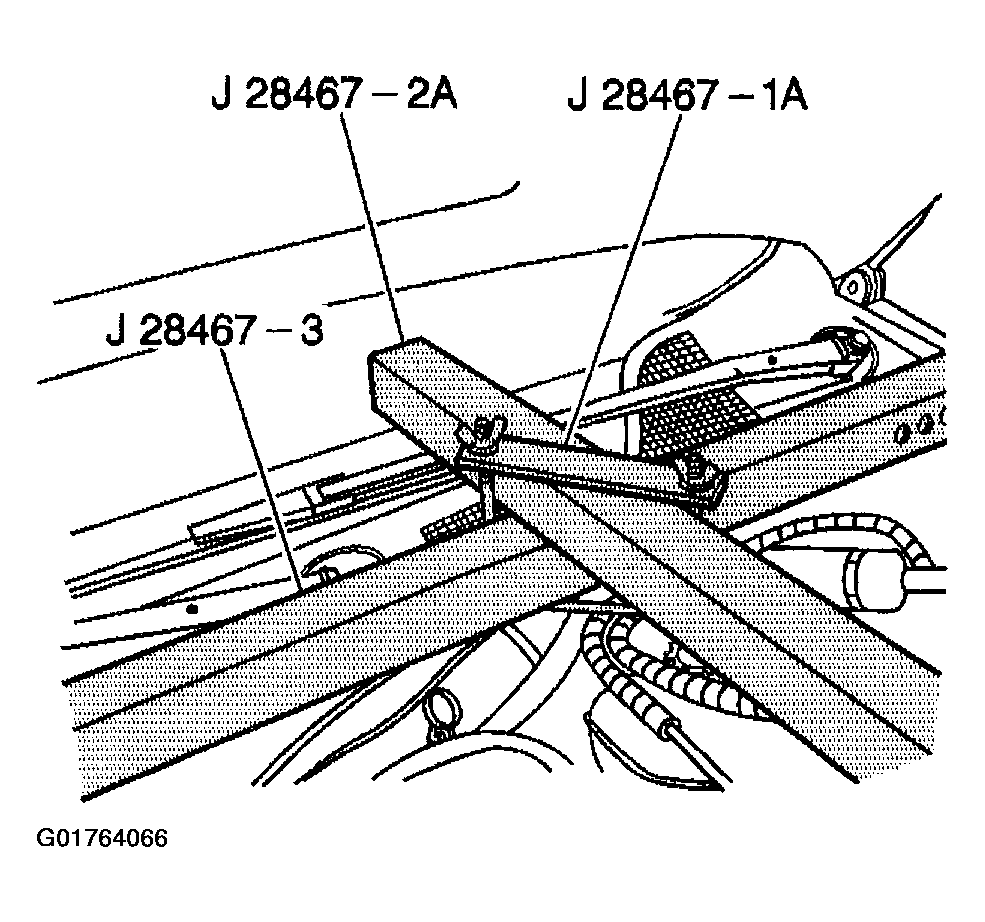

    Fig 9: Install The Assembled Lift Hook Bracket
    G01764066Courtesy of GENERAL MOTORS CORP.
  17. Adjust the passenger side radiator shelf tube J 28467-2A and the assembled lift hook bracket J 28467-6A in order to align the hook with the left, rear of engine, lift hook bracket attached to the left exhaust manifold.
  18. Install the lift hook J 28467-7A through the lift hook bracket J 28467-6A.
  19. Install the 1/2 inch lift hook washer and lift hook wing nut J 28467-34 onto the lift hook J 28467-7A.
  20. Install the assembled lift hook bracket J 28467-6A over the strut tower tube J 28467-3.

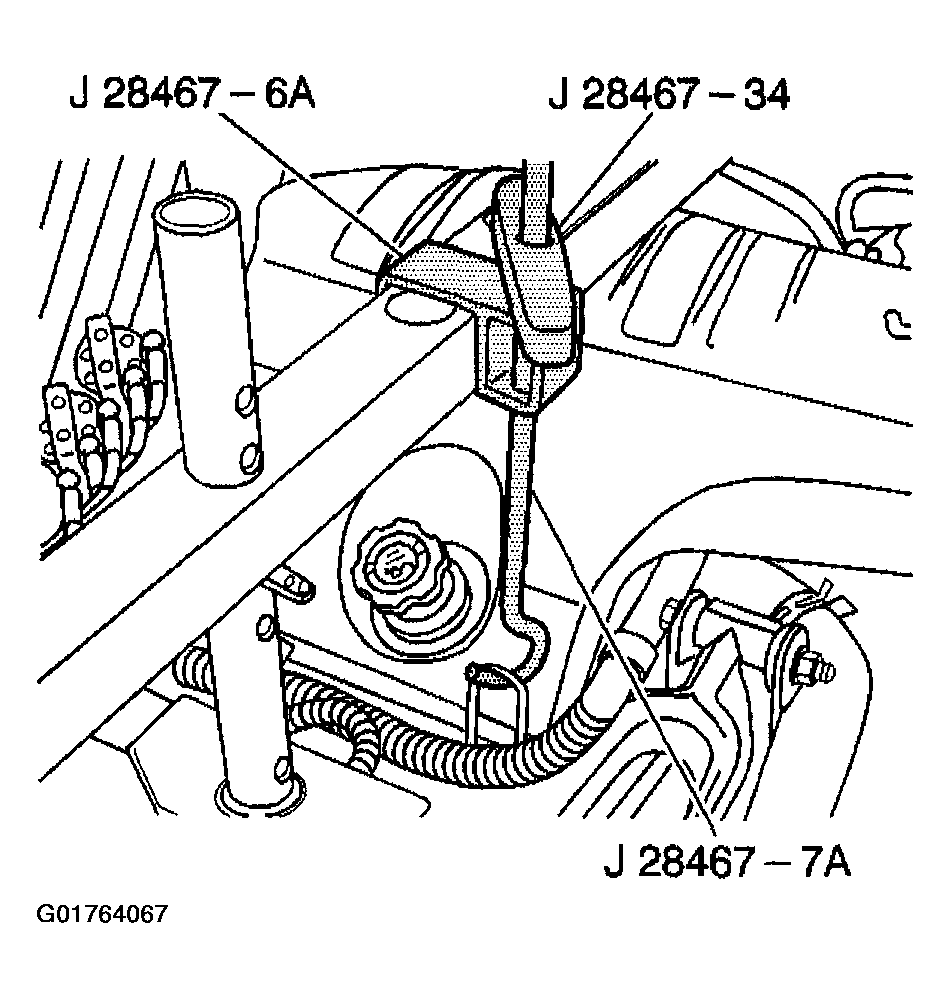

    Fig 10: Install The Assembled Lift Hook Bracket J 28467-6A Over The Strut Tower Tube J 28467-3
    G01764067Courtesy of GENERAL MOTORS CORP.

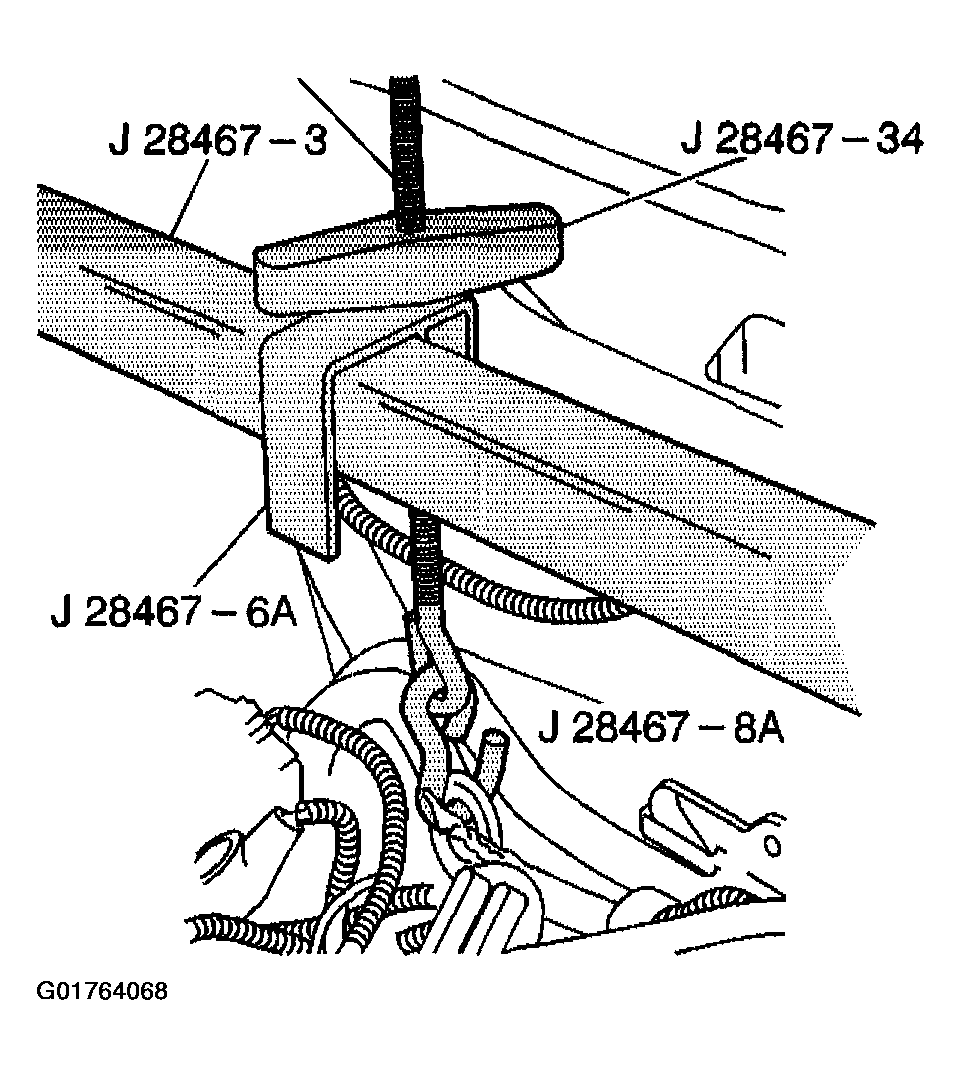

  21. Adjust the assembled swivel lift hook bracket J 28467-8A in order to align the hook with the right, front of engine, lift hook bracket attached to the right exhaust manifold.
    Fig 11: Adjust The Assembled Swivel Lift Hook Bracket
    G01764068Courtesy of GENERAL MOTORS CORP.

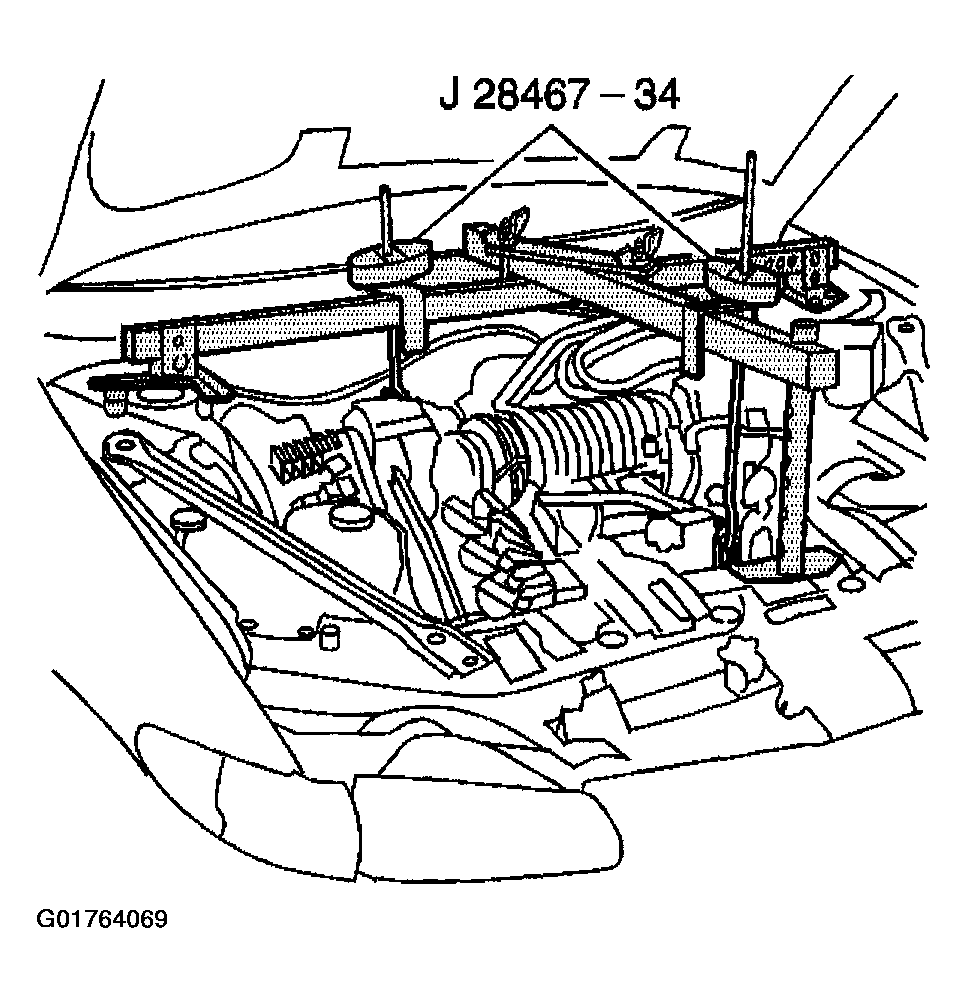

  22. Hand tighten the cross bracket assembly J 28467-1A wing nuts.
  23. Hand tighten the lift hook wing nuts J 28467-34 securely to remove all slack from the engine support fixture assembly.
    Fig 12: J 28467-1A
    G01764069Courtesy of GENERAL MOTORS CORP.
