Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut.
  2. Install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the upper radiator support.

    Tighten:

    Tighten the engine mount strut nut to 48 N.m (35 lb ft)

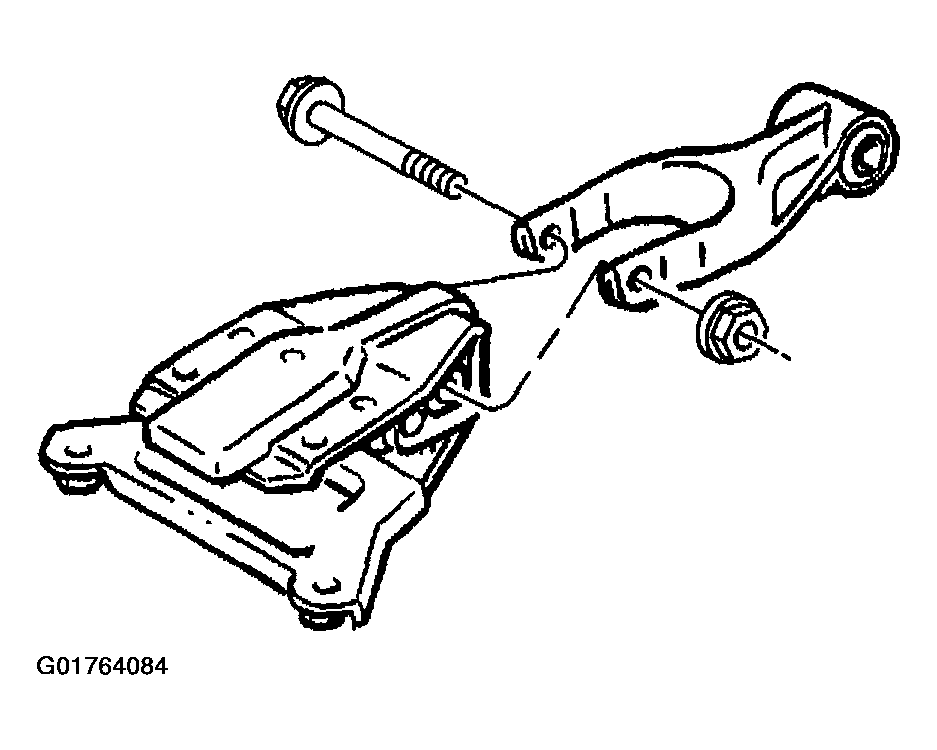

    Fig 1: Right Engine Mount Strut
    G01764084Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the engine.

    Tighten:

    Tighten the engine mount strut nut to 48 N.m (35 lb ft)

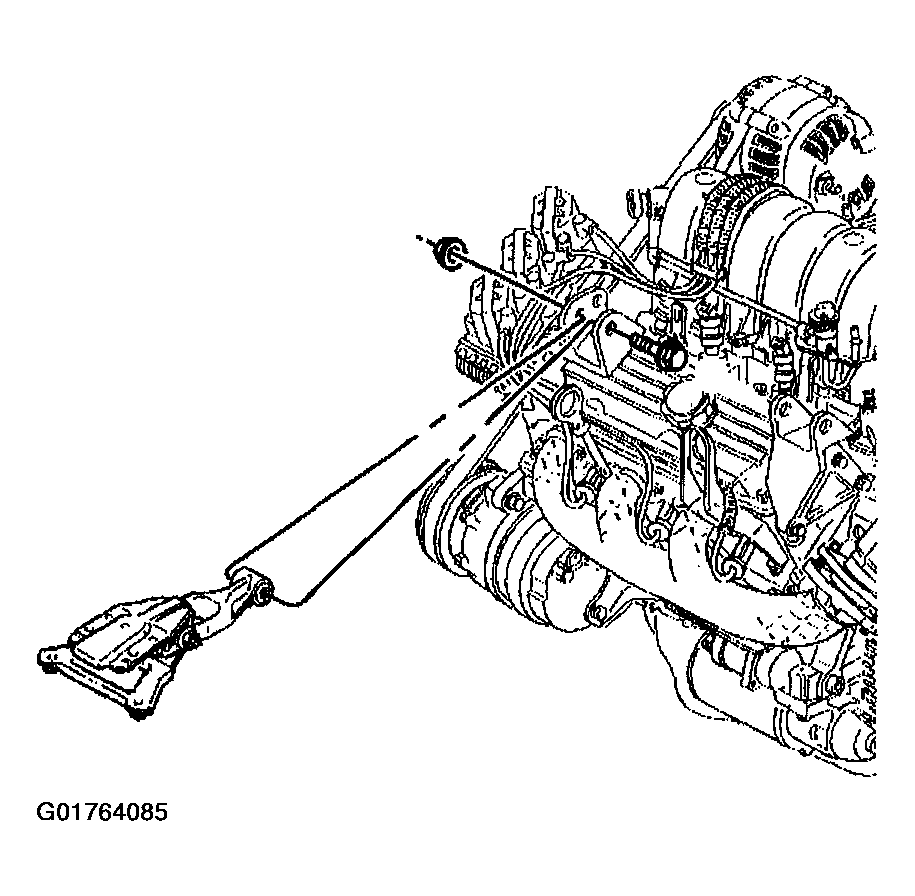

    Fig 2: Right Engine Mount Strut At The Right Engine Mount Strut Bracket
    G01764085Courtesy of GENERAL MOTORS CORP.
