Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt and the nut from the left engine mount strut at the left engine mount strut bracket on the engine.

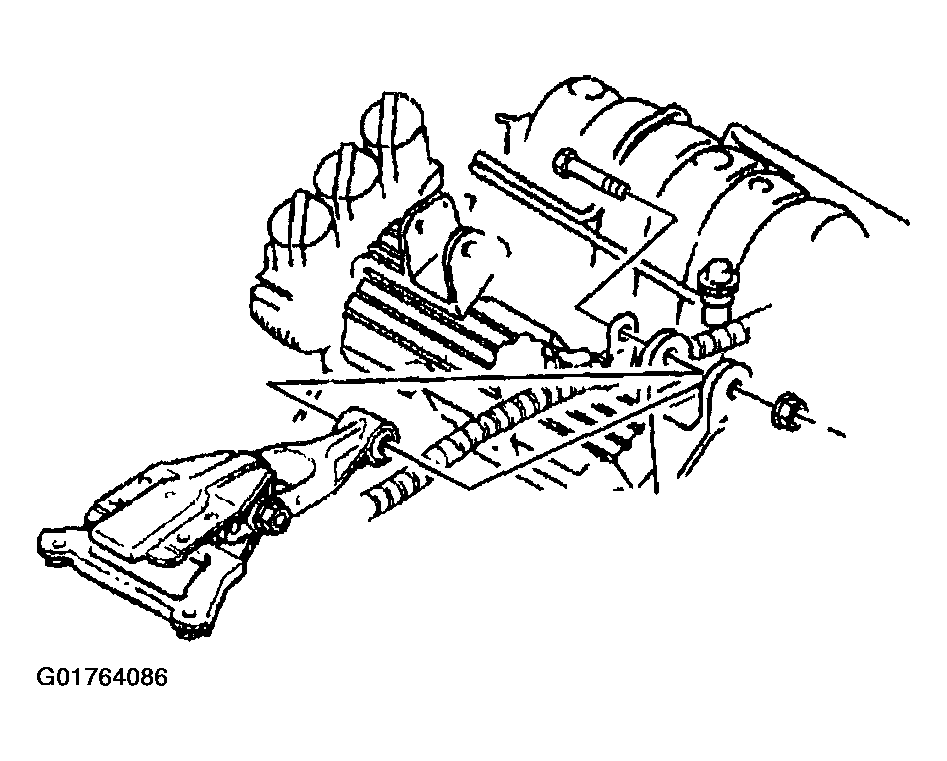

    Fig 1: Left Engine Mount Strut At The Left Engine Mount Strut Bracket
    G01764086Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the left engine mount strut at the left engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking
    Fig 2: Left Engine Mount Strut
    G01764087Courtesy of GENERAL MOTORS CORP.
