Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine mount strut.
Install the bolt and the nut to the left engine mount strut at the left engine mount strut bracket on the upper radiator support.
Tighten:

Tighten the engine mount strut nut to 48 N.m (35 lb ft)

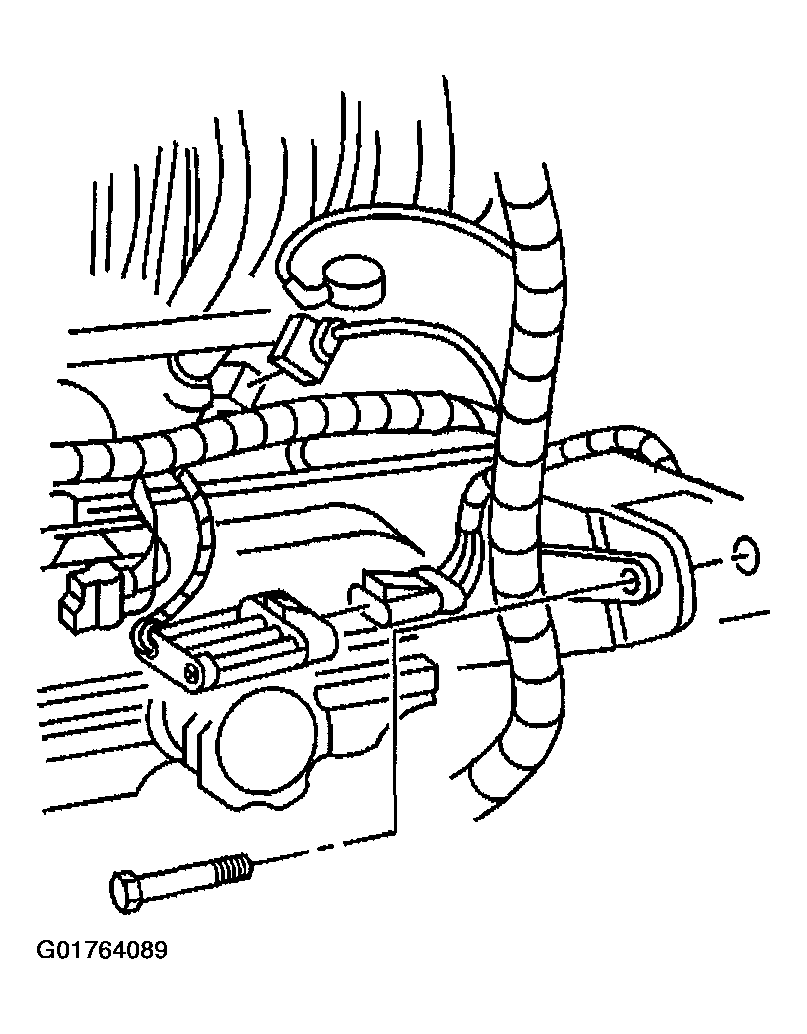

Fig 1: Left Engine Mount Strut At The Left Engine Mount Strut Bracket
Courtesy of GENERAL MOTORS CORP.

NOTE: The P-clip on the engine wiring harness must be vertical, as shown, to the left engine mount strut bracket when installed.
Position the P-clip to the left engine mount strut bracket bolt.

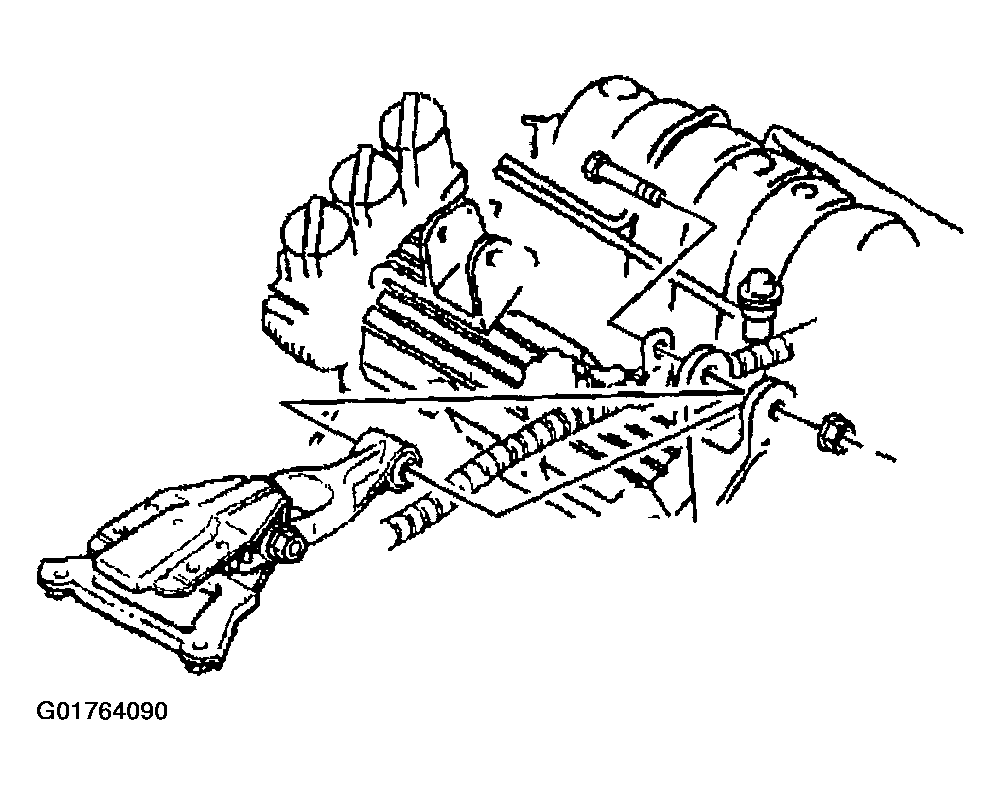

Fig 2: P-Clip To The Left Engine Mount Strut Bracket
Courtesy of GENERAL MOTORS CORP.

Important: The engine mount strut bolt must always be installed as shown in the graphic.
Install the bolt and the nut to the left engine mount strut at the left engine mount strut bracket on the engine.
Tighten:

Tighten the engine mount strut nut to 48 N.m (35 lb ft)

Fig 3: Engine Mount Strut Bolt
Courtesy of GENERAL MOTORS CORP.
