Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the engine mount strut bracket over the upper radiator support so the engine mount strut bracket and the engine mount strut are aligned. Align the engine mount strut bracket with the proper holes of the upper radiator support.
  2. Install the four bolts through the engine mount strut bracket to the upper radiator support.

    Tighten:

    Tighten the engine mount strut bracket bolts to 28 N.m (21 lb ft)

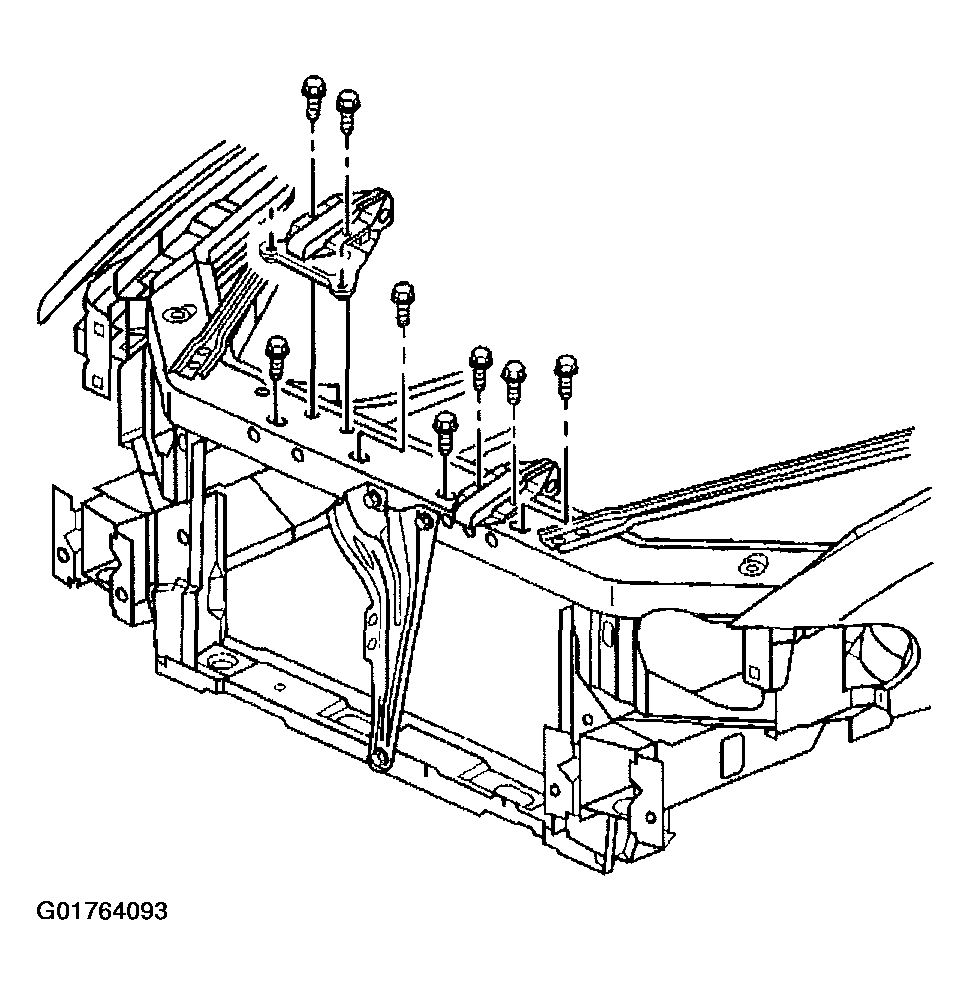

    Fig 1: Engine Mount Strut Bolts And Bracket To Upper Radiator Support
    G01764093Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount strut(s) to the engine mount strut bracket(s) at the upper radiator support. Refer to Engine Mount Strut Replacement - Right
    Fig 2: Engine Mount Strut(s) To The Engine Mount Strut Bracket(s) At The Upper Radiator Support
    G01764094Courtesy of GENERAL MOTORS CORP.
