Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the lower engine mount strut bracket bolts.
  3. Remove the lower engine mount bracket nut.
  4. Remove the lower engine mount bracket.

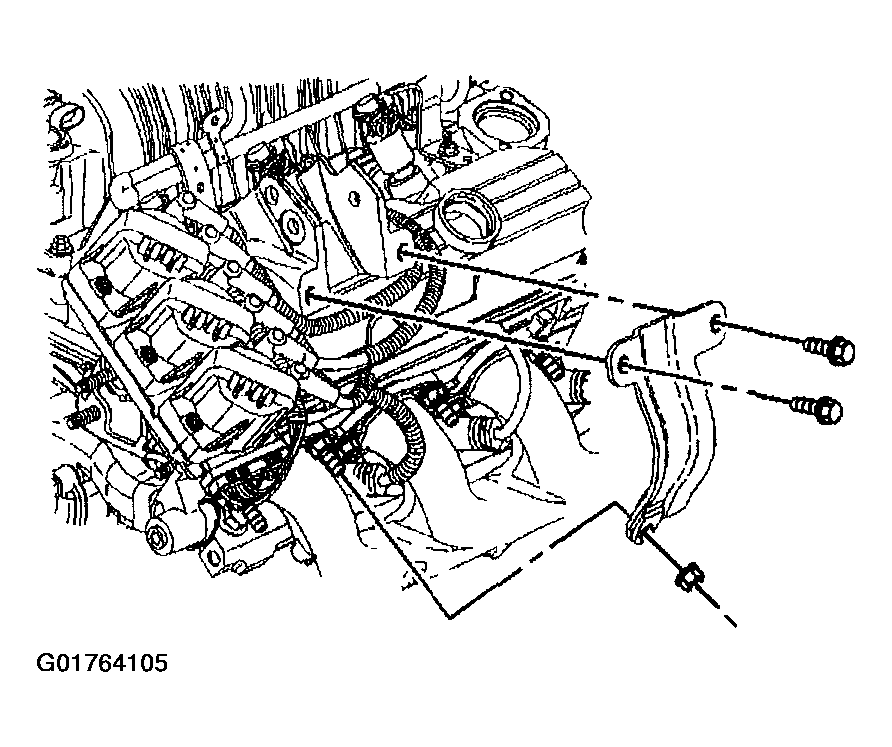

    Fig 1: Lower Engine Mount Bracket
    G01764105Courtesy of GENERAL MOTORS CORP.
