Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in ENGINE COOLING .
  2. Remove the engine coolant temperature (ECT) sensor. Refer to ENGINE COOLANT TEMPERATURE SENSOR .
  3. Remove the left engine mount strut from the left engine mount strut bracket. Refer to Engine Mount Strut Replacement - Left

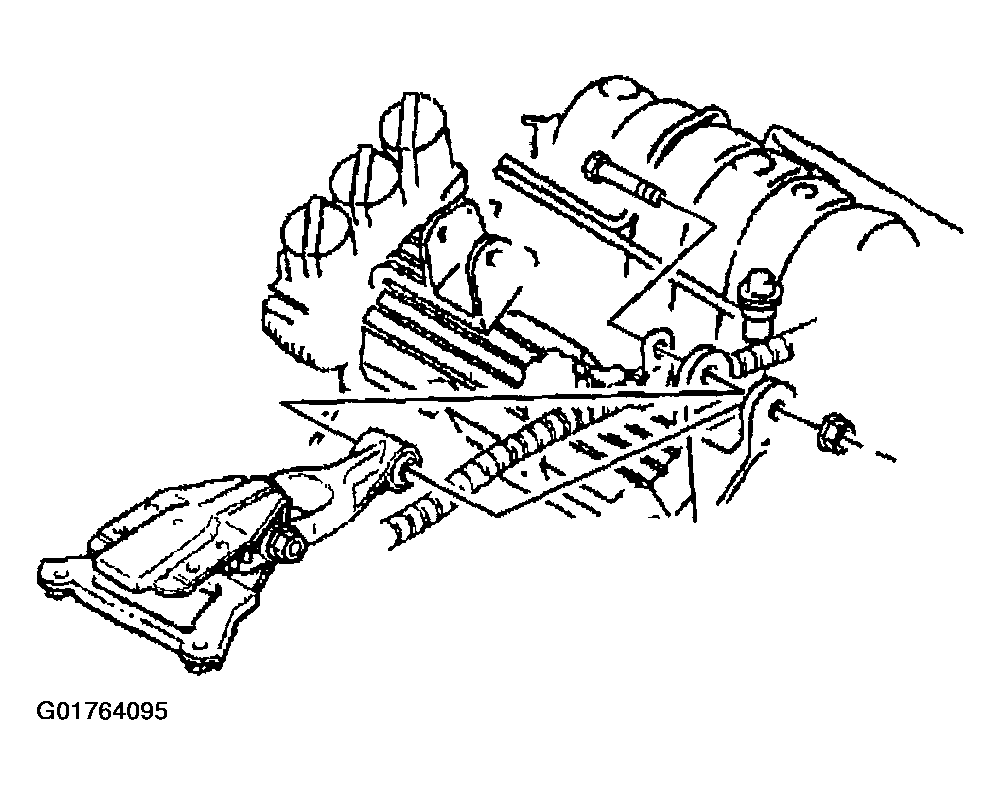

    Fig 1: Left Engine Mount Strut
    G01764095Courtesy of GENERAL MOTORS CORP.
  4. Remove the left engine mount strut bracket bolts.
  5. Remove the left engine mount strut bracket from the cylinder head.

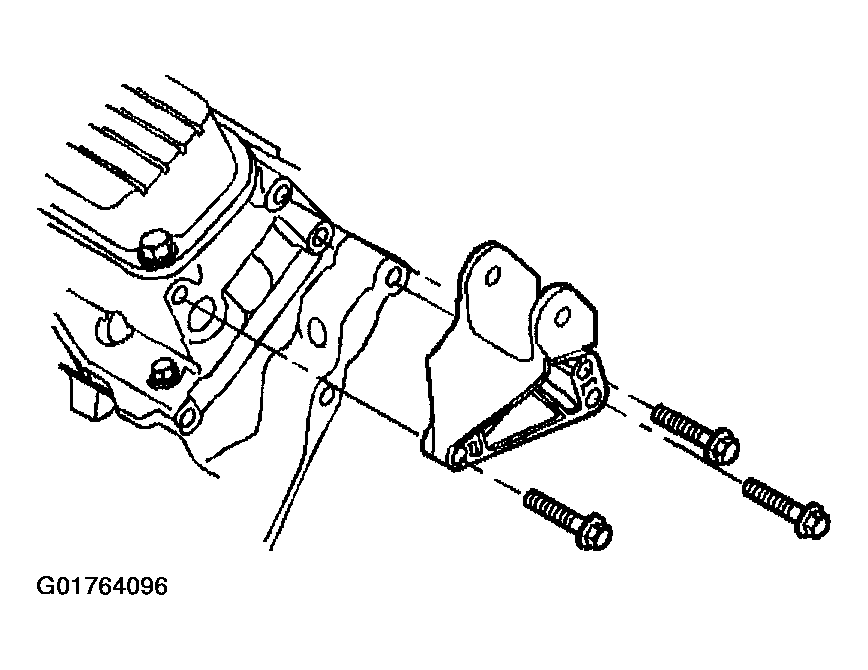

    Fig 2: Left Engine Mount Strut Bracket From The Cylinder Head
    G01764096Courtesy of GENERAL MOTORS CORP.
