Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left engine mount strut bracket to the cylinder head.
  2. Install the left engine mount strut bracket bolts.

    Tighten:

    Tighten the engine mount strut bracket bolts to 50 N.m (37 lb ft)

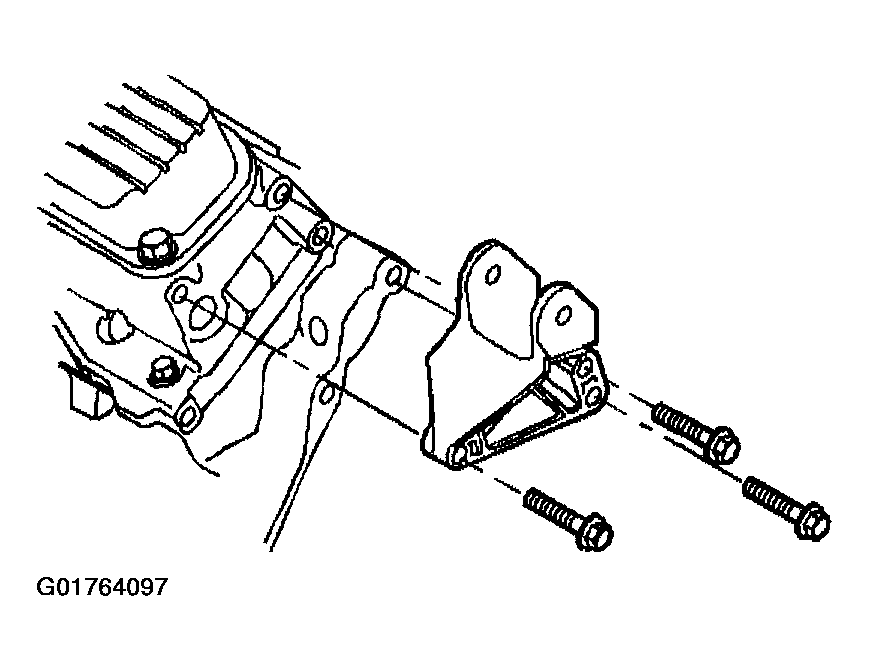

    Fig 1: Left Engine Mount Strut Bracket Bolts
    G01764097Courtesy of GENERAL MOTORS CORP.
  3. Install the left engine mount strut to the left engine mount strut bracket. Refer to Engine Mount Strut Replacement - Left

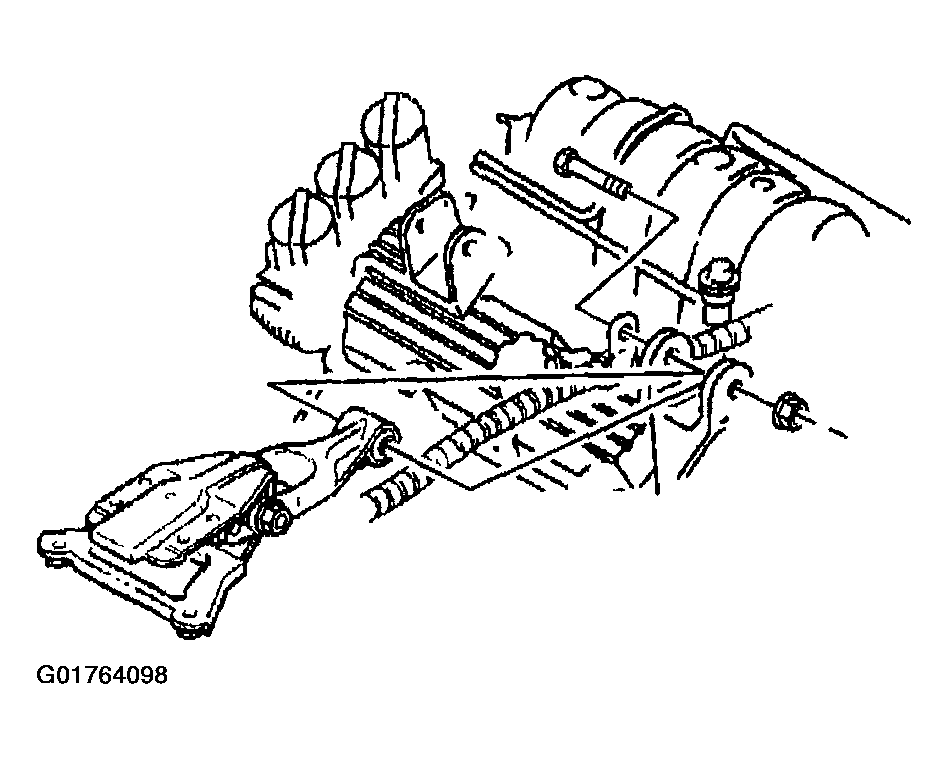

    4. Fig 2: Left Engine Mount Strut To The Left Engine Mount Strut Bracket
    G01764098Courtesy of GENERAL MOTORS CORP.
  4. Install the engine coolant temperature (ECT) sensor. Refer to ENGINE COOLANT TEMPERATURE SENSOR
  5. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in ENGINE COOLING .
