Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. Refer to TRANSMISSION REPLACEMENT in AUTOMATIC TRANSAXLE-4T65-E .
  2. Use the J 37096 in order to prevent crankshaft rotation.

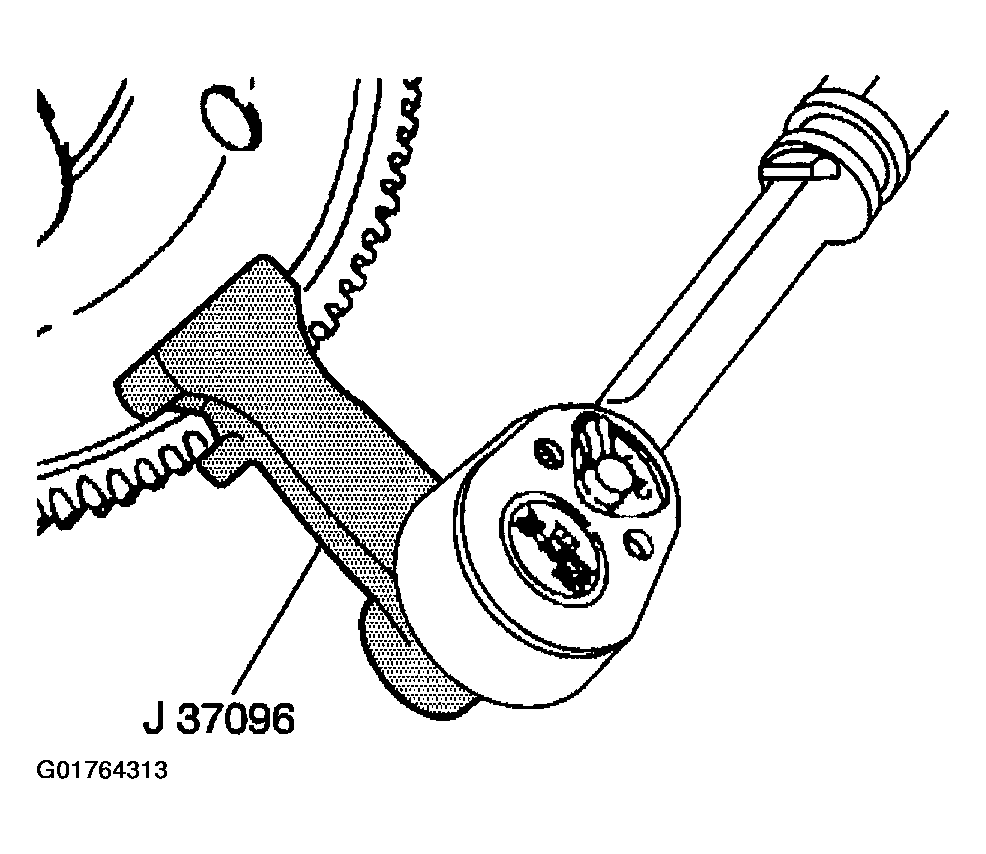

    Fig 1: Use J 37096 In Order To Prevent Crankshaft Rotation
    G01764313Courtesy of GENERAL MOTORS CORP.
  3. Loosen the 8 engine flywheel bolts.

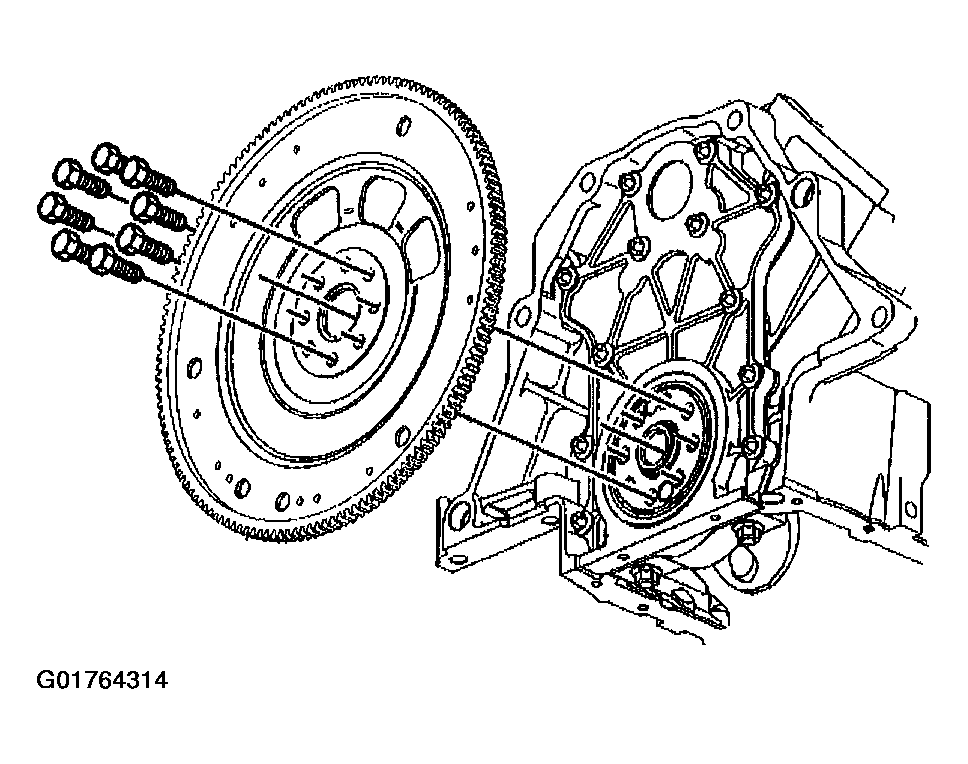

    4. Fig 2: Engine Flywheel Bolts
    G01764314Courtesy of GENERAL MOTORS CORP.
  4. Remove 7 of the 8 engine flywheel bolts, leaving one bolt at the top of the crankshaft rotation.
  5. Firmly grasp the engine flywheel and remove the remaining bolt. Do not drop the engine flywheel when removing the final bolt.
  6. Remove the engine flywheel.
