Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine flywheel.
Use the J 37096 in order to prevent the crankshaft from rotating.
Install the new engine flywheel bolts.
Tighten:

Tighten the engine flywheel bolts to 15 N.m (11 lb ft). Use the J 36660-A in order to rotate the engine flywheel bolts an additional 50 degrees

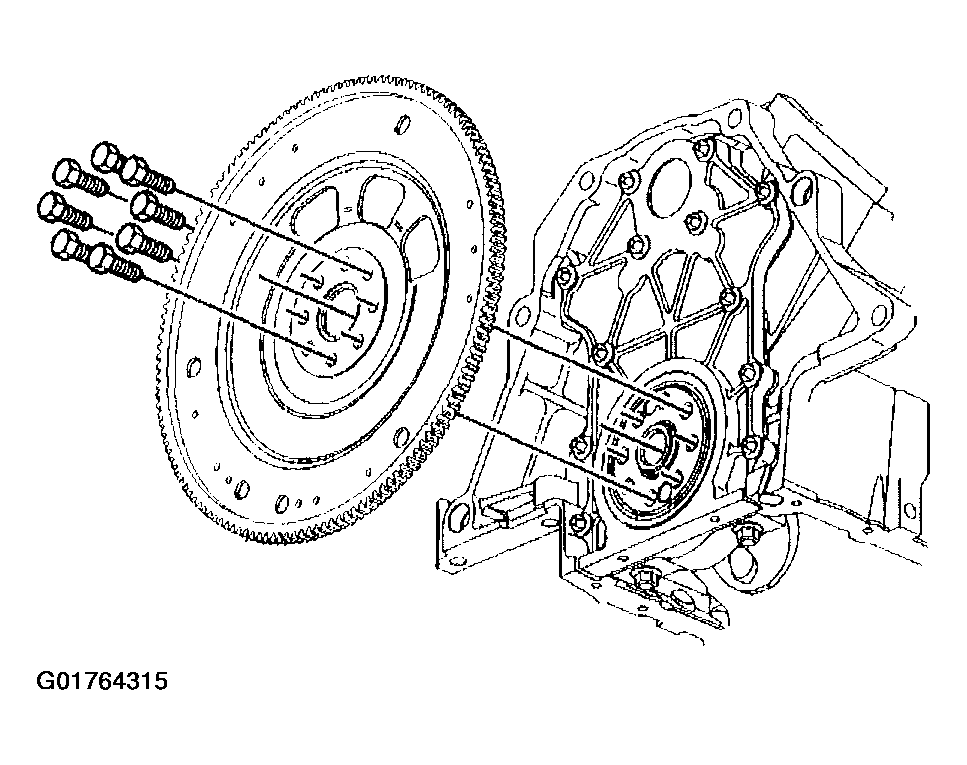

Fig 1: Engine Flywheel Bolts
Courtesy of GENERAL MOTORS CORP.
Measure engine flywheel runout:
1. 4.1. Install a dial indicator on the engine block and check the engine flywheel runout at three attaching bosses. Refer to Engine Mechanical Specifications
2. 4.2. If the condition cannot be corrected, replace the engine flywheel.
Install the transaxle. Refer to TRANSMISSION REPLACEMENT in AUTOMATIC TRANSAXLE-4T65-E
