Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
  2. Install the drive belt tensioner nut.

    Tighten:

    Tighten the drive belt tensioner nut to 50 N.m (37 lb ft)

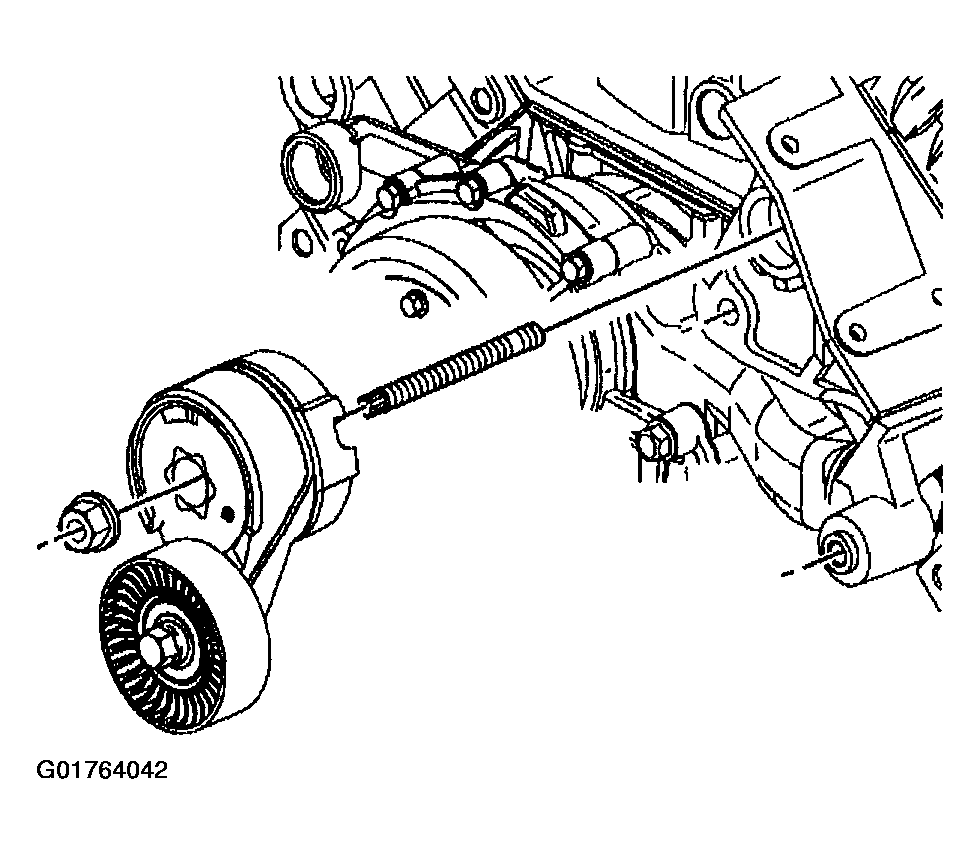

    Fig 1: Drive Belt Tensioner And Nut
    G01764042Courtesy of GENERAL MOTORS CORP.
  3. Install the supercharger drive belt. Refer to Drive Belt Replacement (L67) .

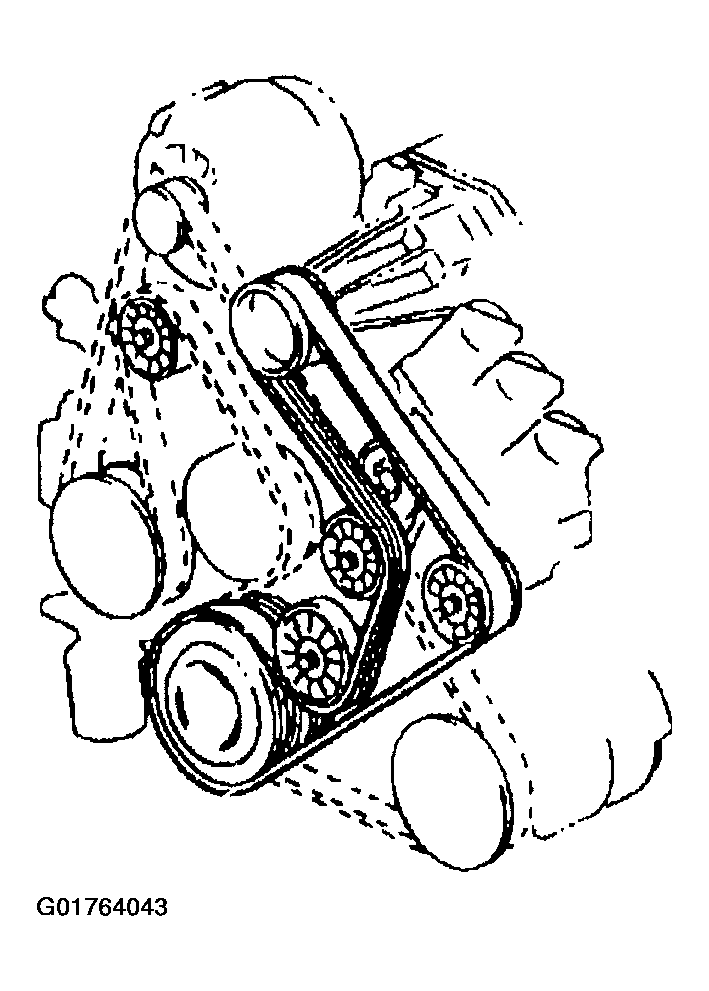

    Fig 2: Supercharger Drive Belt (L67)
    G01764043Courtesy of GENERAL MOTORS CORP.
