Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift or rotate the drive belt tensioner using a 15-mm box end wrench on the pulley nut.
  2. Install the drive belt.

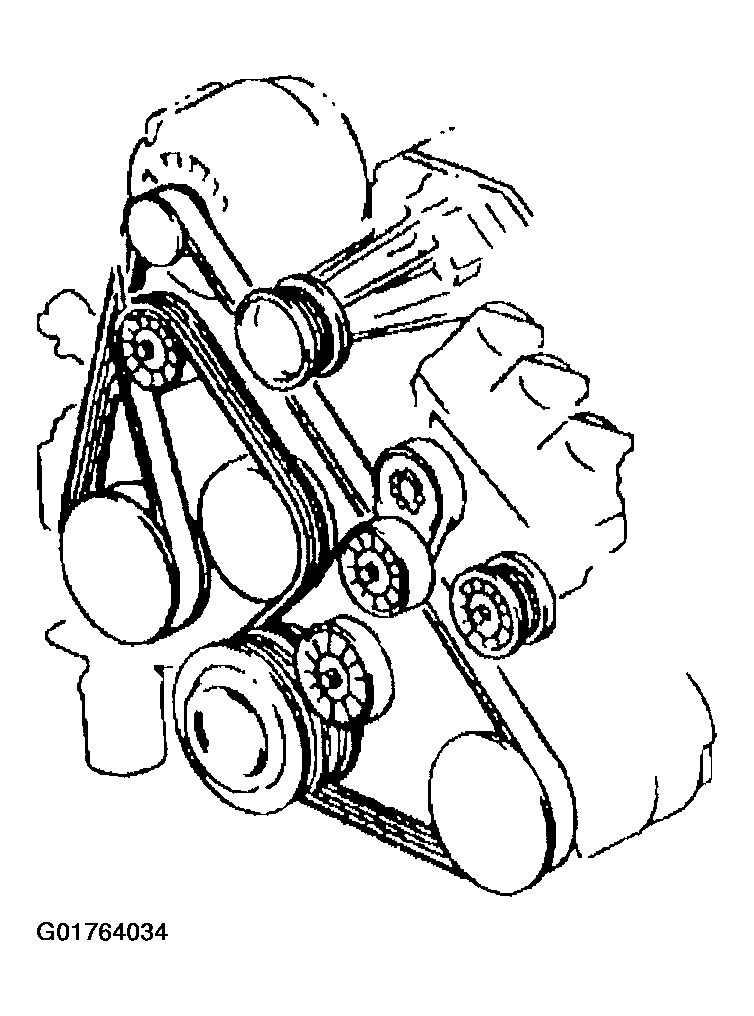

    Fig 1: Install The Drive Belt
    G01764034Courtesy of GENERAL MOTORS CORP.
  3. Lift or rotate the supercharger drive belt tensioner using a 15-mm box end wrench on the pulley nut.
  4. Install the supercharger drive belt.

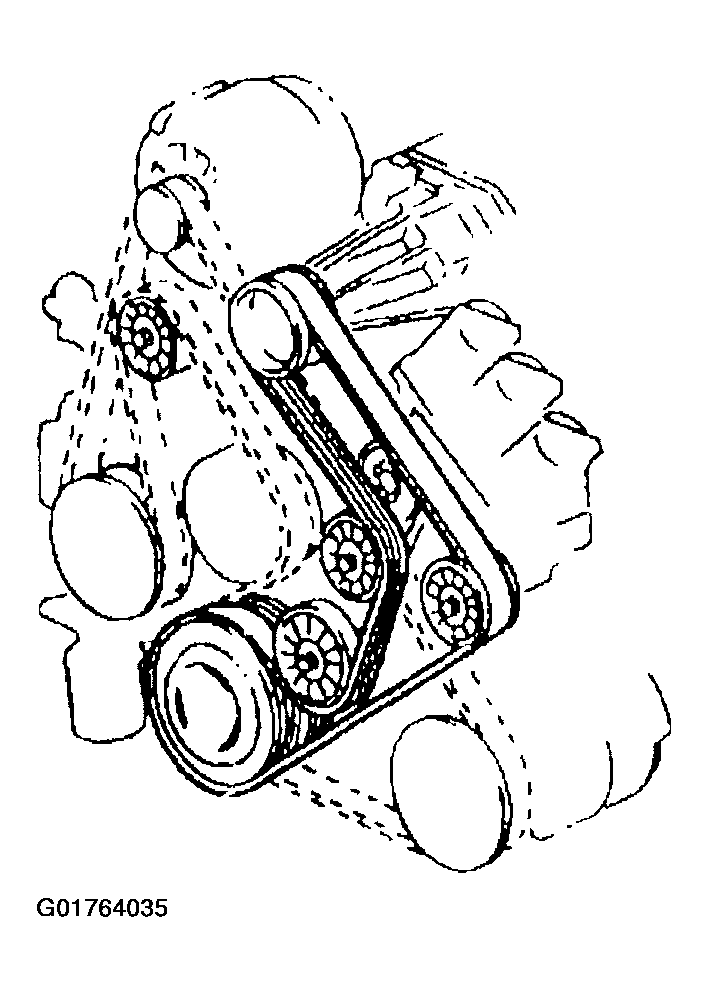

    Fig 2: Supercharger Drive Belt
    G01764035Courtesy of GENERAL MOTORS CORP.
