Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift or rotate the drive belt tensioner using a 15-mm box end wrench on the pulley nut.
  2. Remove the drive belt.

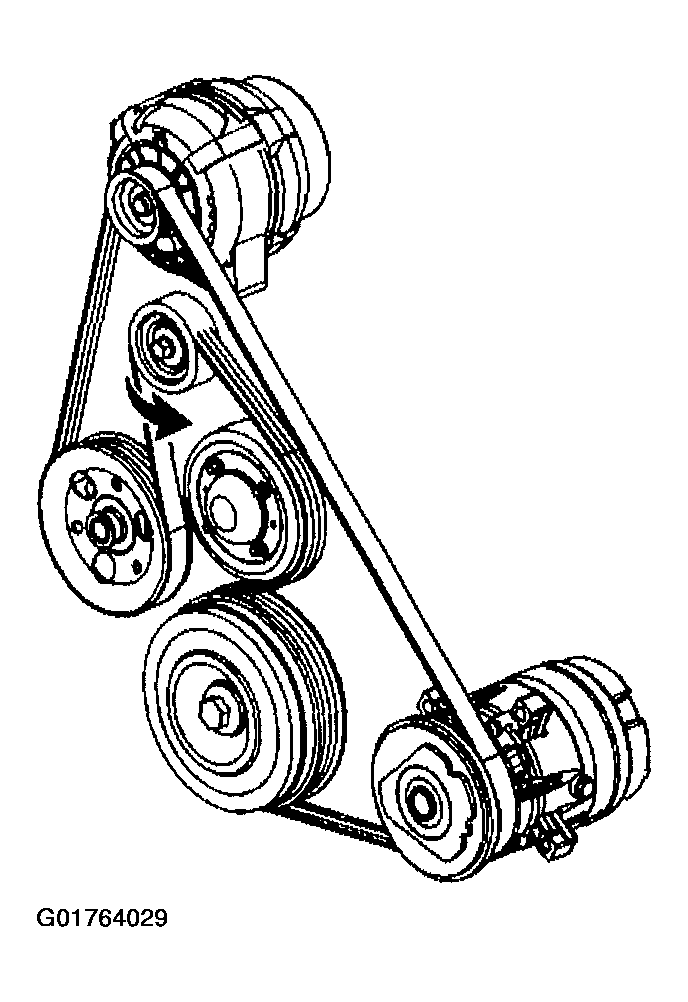

    Fig 1: Drive Belt Tensioner (L36)
    G01764029Courtesy of GENERAL MOTORS CORP.
