Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the supercharger drive belt. Refer to Drive Belt Replacement (L67) .
    Fig 1: Supercharger Drive Belt
    G01764048Courtesy of GENERAL MOTORS CORP.
  2. Remove the idler pulley bolt.
  3. Remove the drive belt idler pulley.

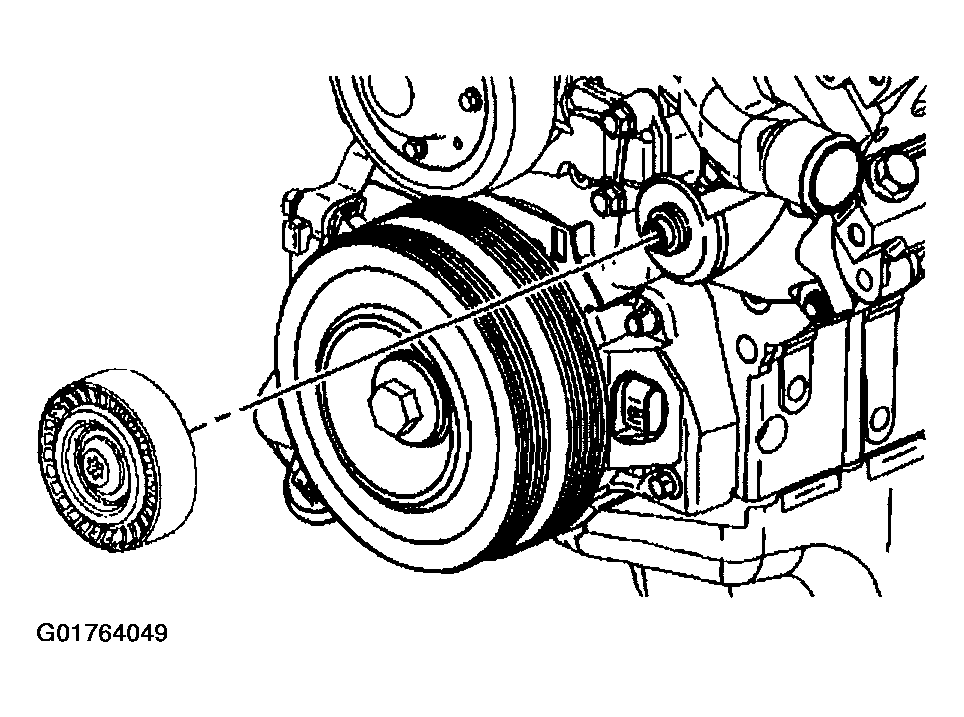

    Fig 2: Drive Belt Idler Pulley
    G01764049Courtesy of GENERAL MOTORS CORP.
