Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply engine oil to the inside and the outside diameter of the new crankshaft rear oil seal. Slide the new crankshaft rear oil seal over the mandrel until the back of the crankshaft rear oil seal bottoms squarely against the collar of the J 38196.
    Fig 1: Installing Oil Seal
    G01764318Courtesy of GENERAL MOTORS CORP.
  2. Install the crankshaft rear oil seal using the following steps:
    1. 2.1. Attach the J 38196 to the crankshaft by hand, or tighten the attaching screws.

      Tighten:

      Tighten the screws to 5 N.m (54 lb in)

    2. 2.2. Turn the T-handle of the J 38196 so that the collar pushes the seal into the bore. Turn the handle until the collar is tight against the case. This will ensure that the crankshaft rear oil seal is seated properly between the crankshaft and the crankshaft rear oil seal housing.

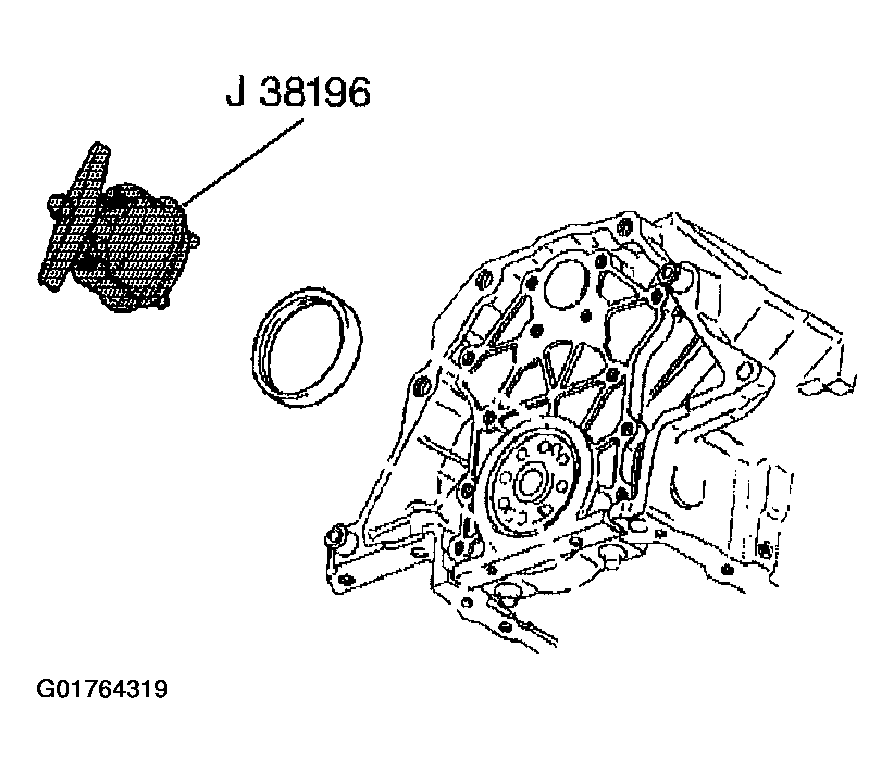

      Fig 2: Using The J 38196 To Install Oil Seal
      G01764319Courtesy of GENERAL MOTORS CORP.
    3. 2.3. Loosen the T-handle of J 38196 until it comes to a stop. This will make sure that the collar will be in the proper position for installing another new crankshaft rear oil seal.
    4. 2.4. Remove the attaching screws.
  3. Install the engine flywheel. Refer to Engine Flywheel Replacement
  4. Check and fill crankcase as necessary.
  5. Inspect for leaks.
