Base Engine Misfire without Internal Engine Noises

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

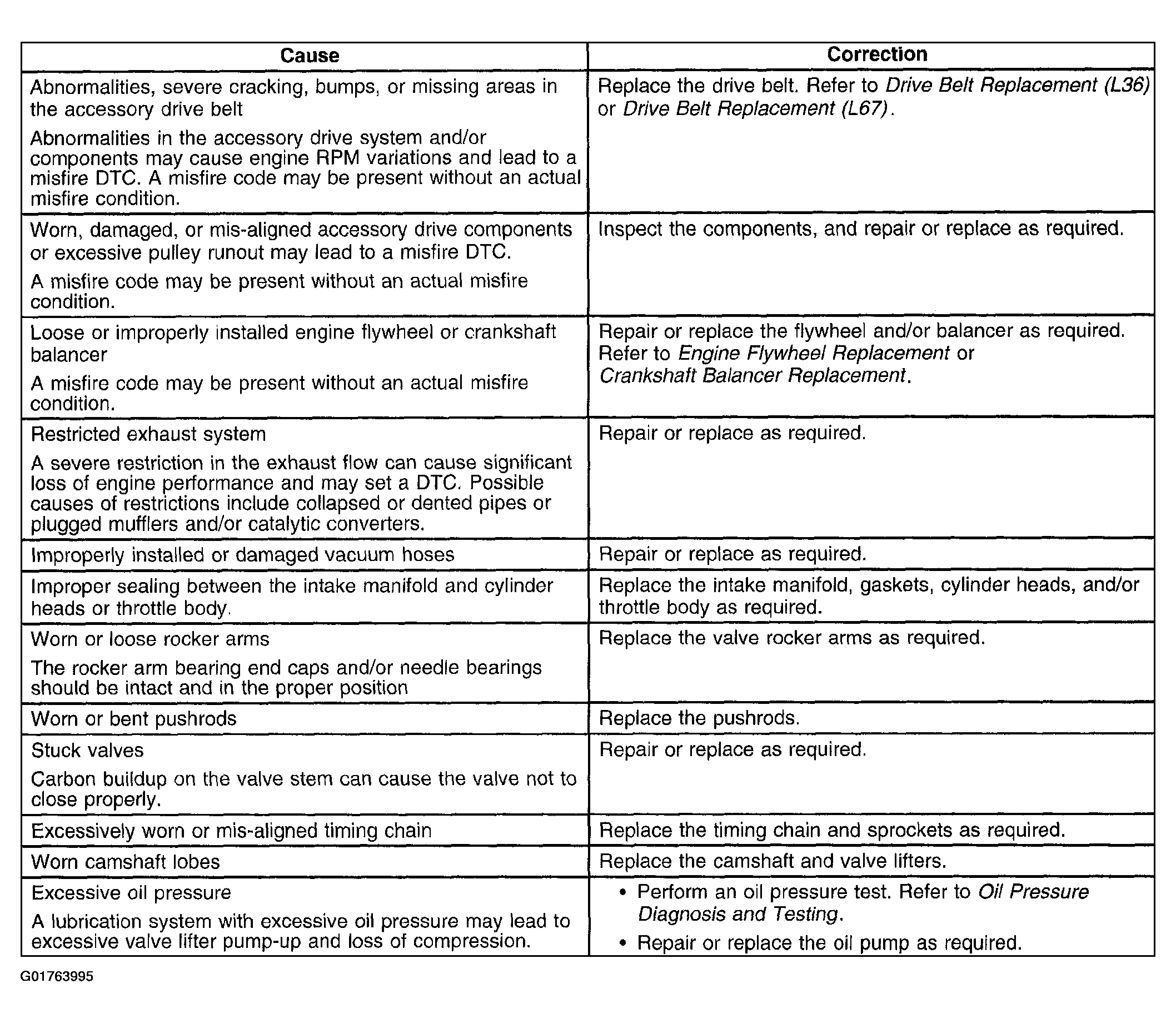

Fig 1: Base Engine Misfire without Internal Engine Noises, Symptom Chart (1 of 2)
G01763995Courtesy of GENERAL MOTORS CORP.

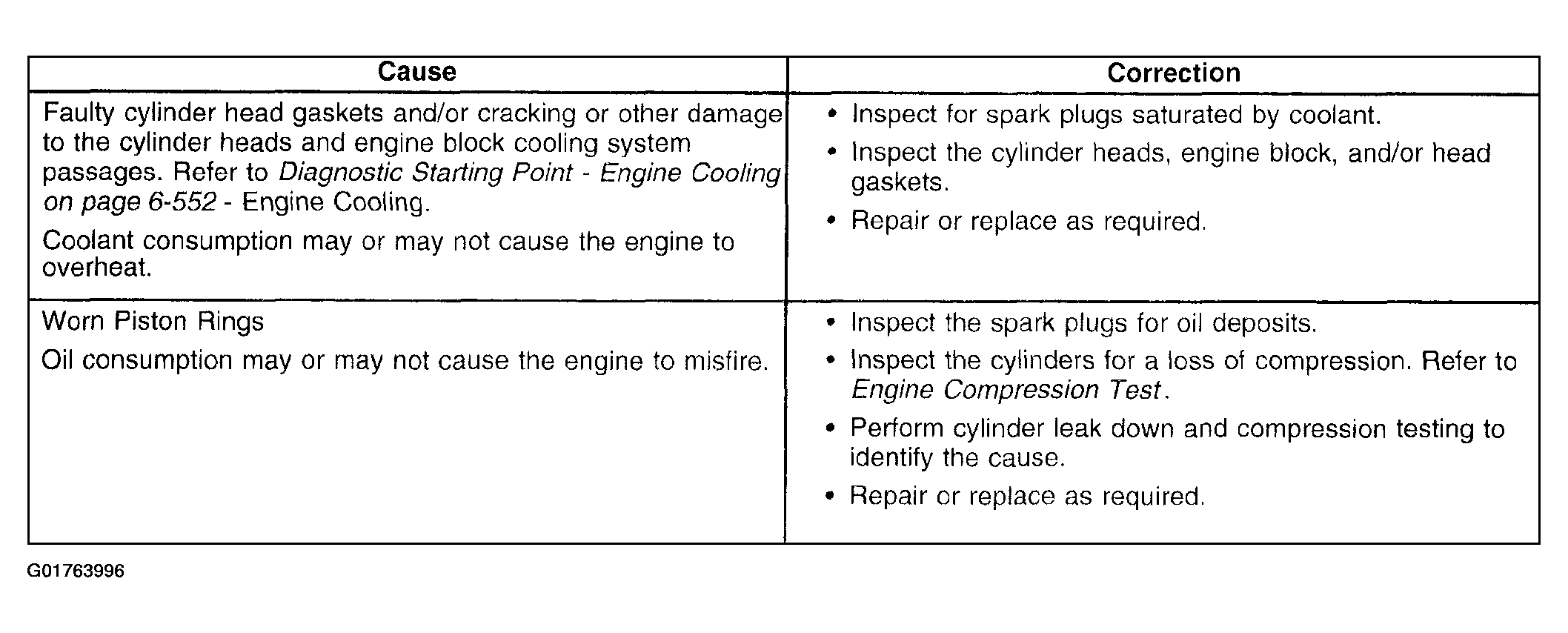

Fig 2: Base Engine Misfire without Internal Engine Noises, Symptom Chart (2 of 2)
G01763996Courtesy of GENERAL MOTORS CORP.
