Oil Pan Removal

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level pressure sensor and sensor bolt.
  2. Remove the oil pan side bolts.
  3. Remove the oil pan bolts.
  4. Remove the oil pan.
  5. Remove the oil pan gasket.

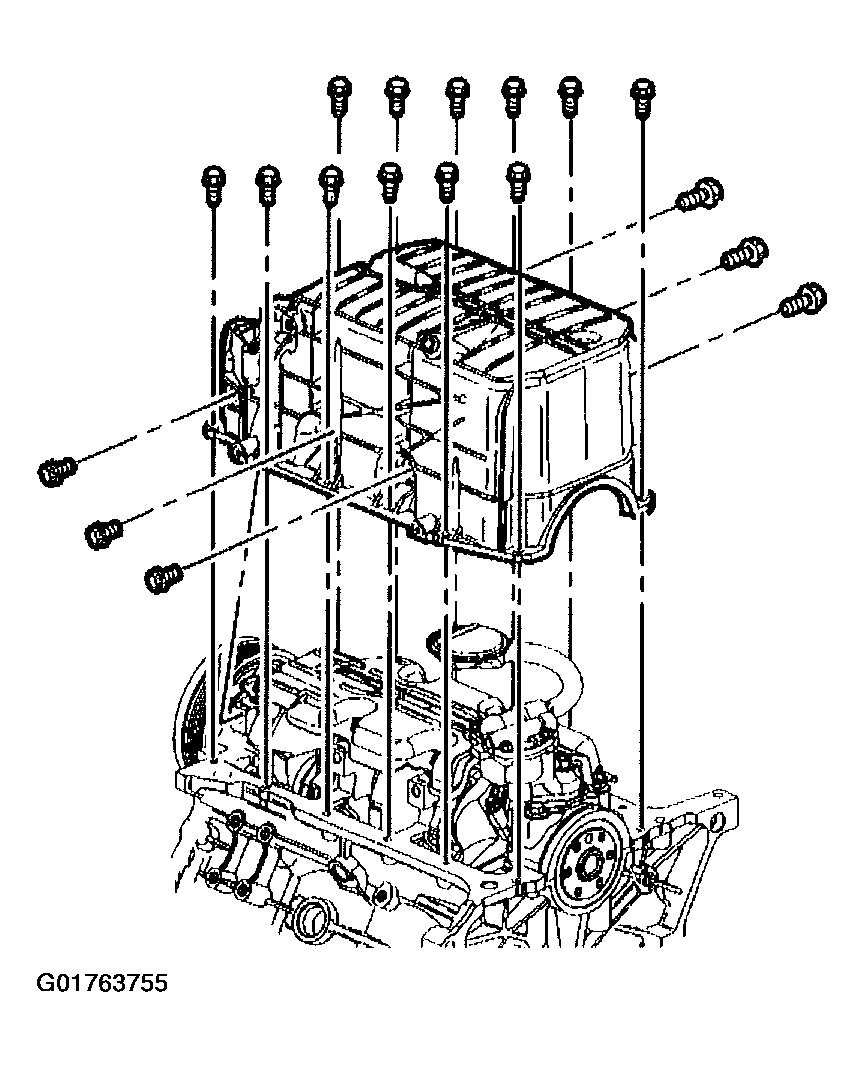

    Fig 1: Oil Pan Bolts And Gasket
    G01763755Courtesy of GENERAL MOTORS CORP.
