Engine Front Cover Removal (N Car)

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft position sensor wiring bracket bolt.
  2. Remove the crankshaft position sensor wiring bracket.

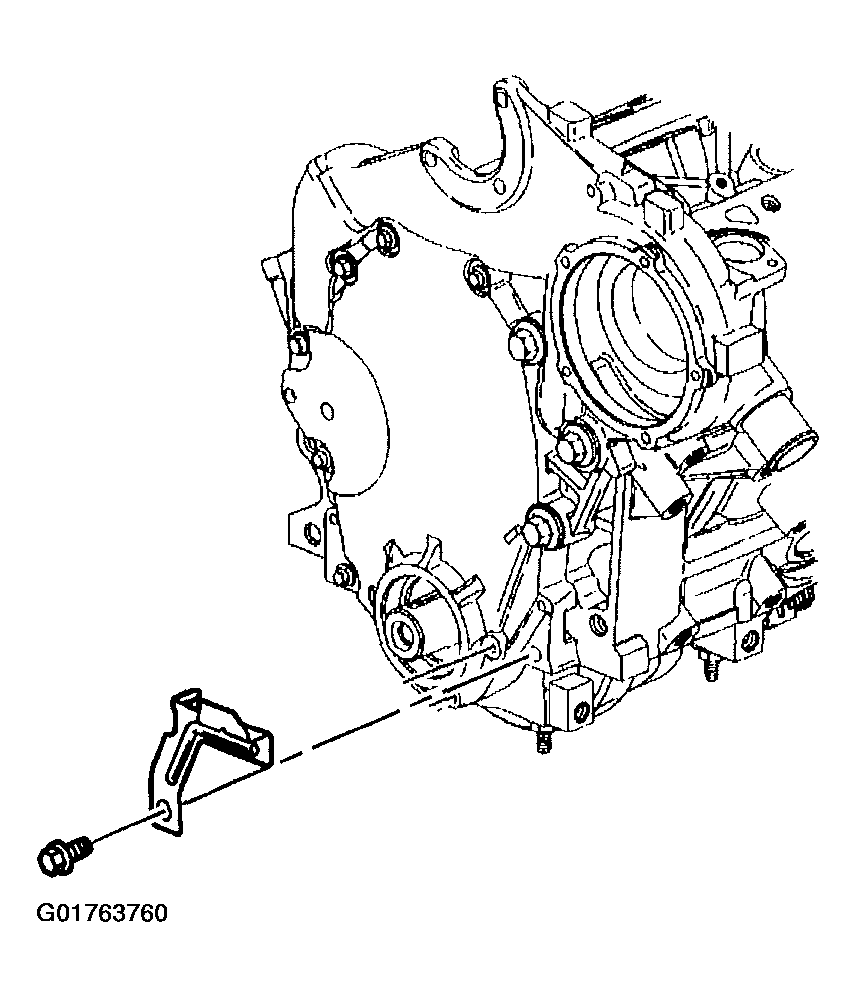

    Fig 1: Crankshaft Position Sensor Wiring Bracket And Bolt
    G01763760Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine front cover bolts (1, 2, 3).
  4. Remove the engine front cover.
  5. Remove the engine front cover gasket.

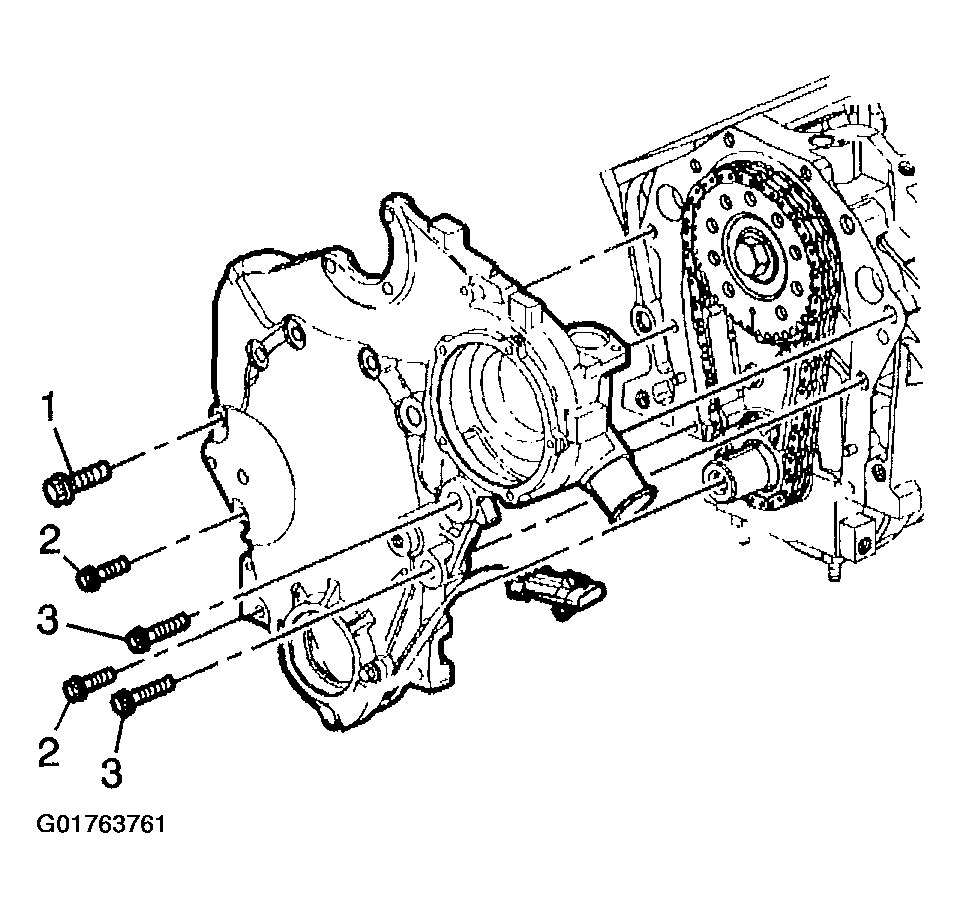

    Fig 2: Engine Front Cover Bolts (N Car)
    G01763761Courtesy of GENERAL MOTORS CORP.
