Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine coolant. Refer to Draining and Filling Cooling System .
Remove the radiator outlet hose from the radiator.
Remove the coolant hose from the vehicle.

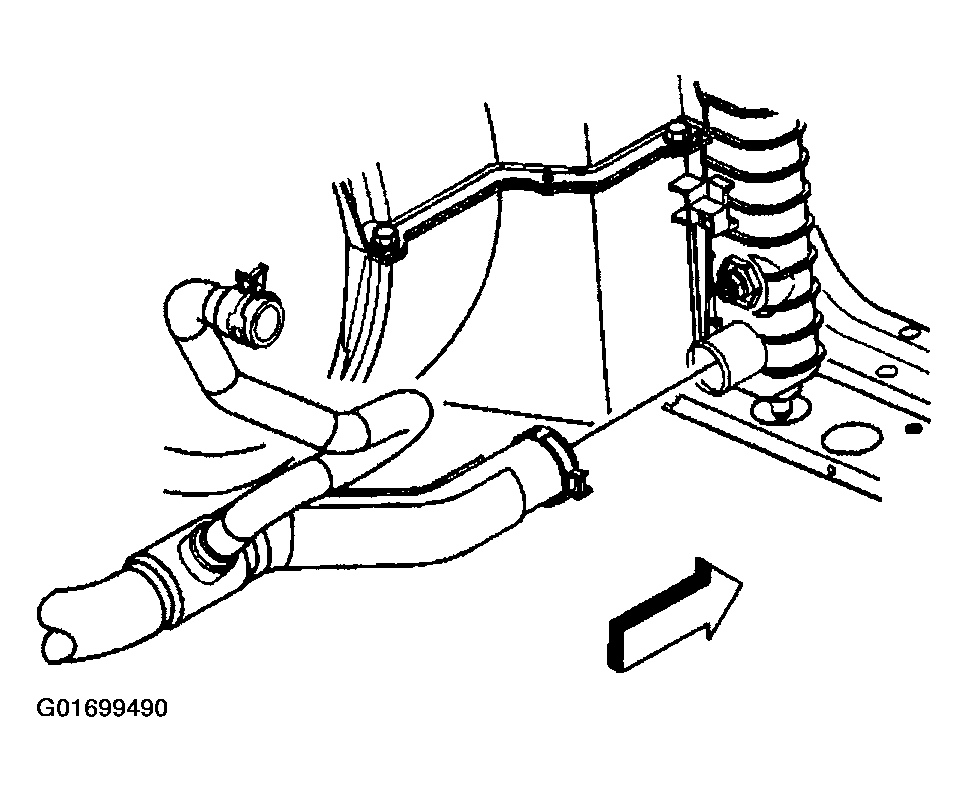

Fig 1: Removing Radiator Outlet Hose & Coolant Hose
Courtesy of GENERAL MOTORS CORP.
Remove the radiator outlet hose from the water pump.

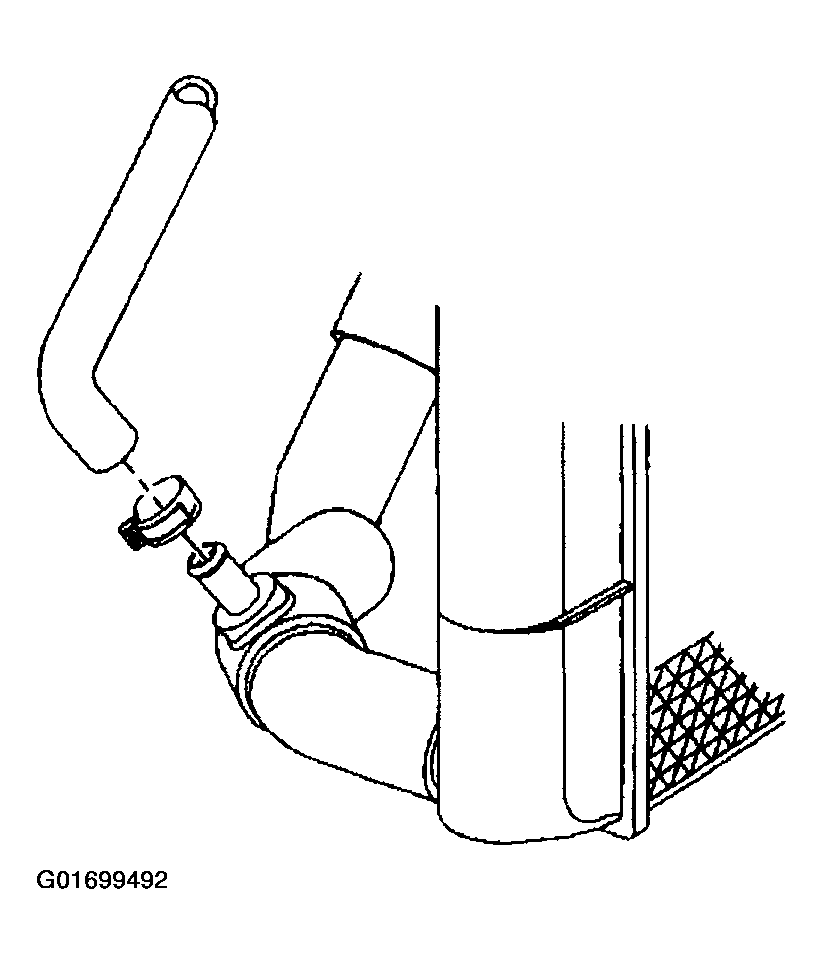

Fig 2: Removing Radiator Outlet Hose From Water Pump
Courtesy of GENERAL MOTORS CORP.
On the 6.5L and 8.1L, remove the surge tank outlet hose from the radiator outlet hose.

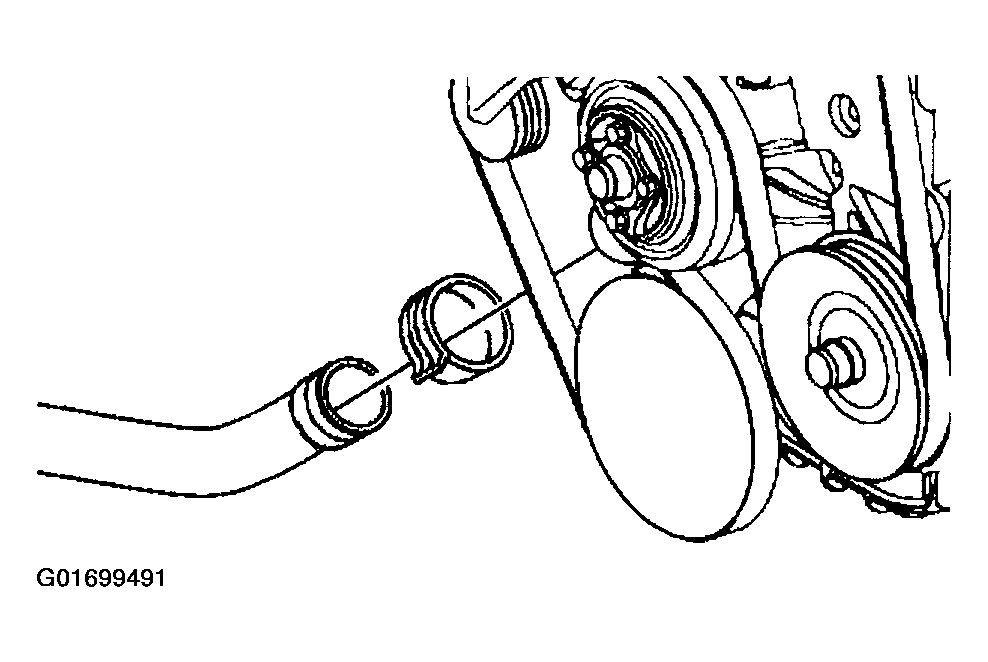

Fig 3: Removing Surge Tank Hose From Radiator Outlet Hose
Courtesy of GENERAL MOTORS CORP.
