Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain the engine coolant. Refer to Draining and Filling Cooling System .
Remove the air cleaner assembly. Refer to the appropriate procedure:
- For 6.5L, refer to AIR CLEANER ASSEMBLY
Remove the radiator inlet hose from the radiator.

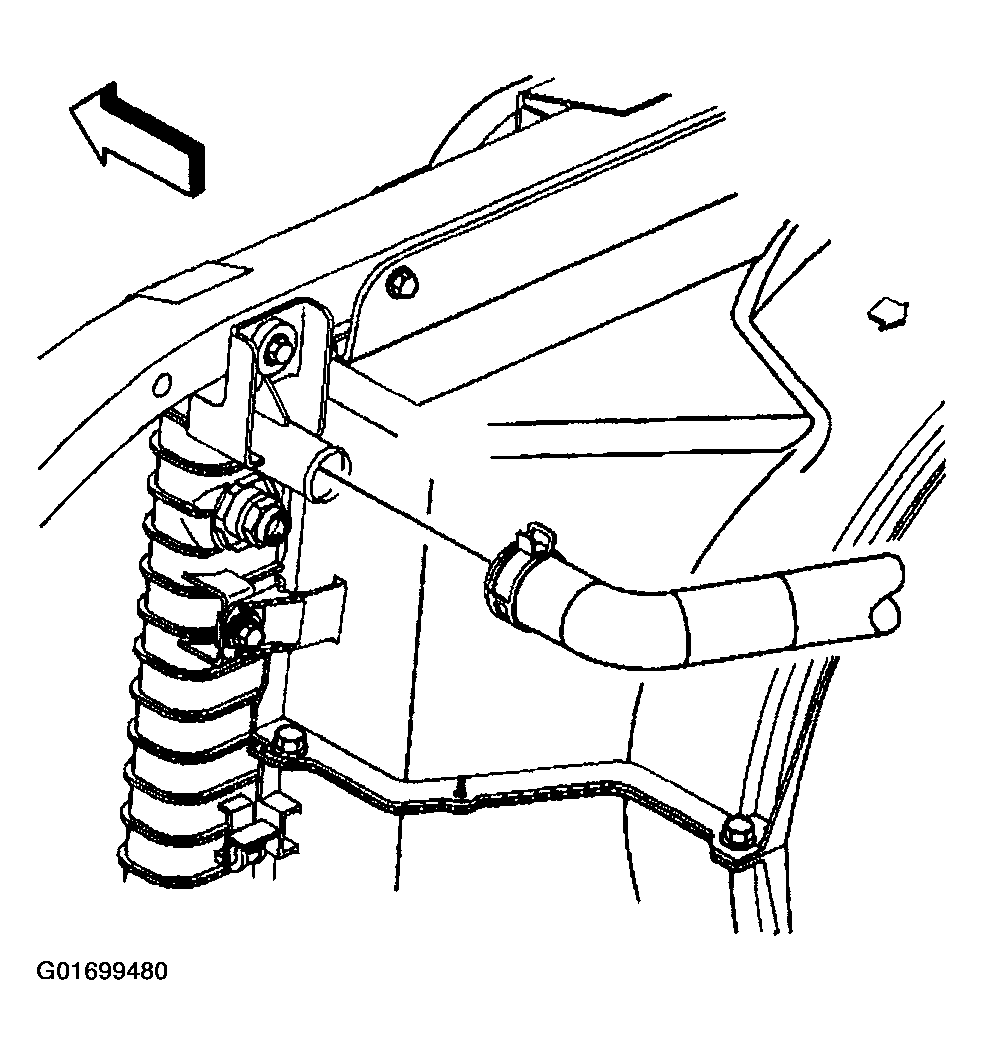

Fig 1: Removing Air Cleaner Assembly & Inlet Hose From Radiator
Courtesy of GENERAL MOTORS CORP.
If equipped with 4.3L, remove the radiator inlet hose from the water outlet.

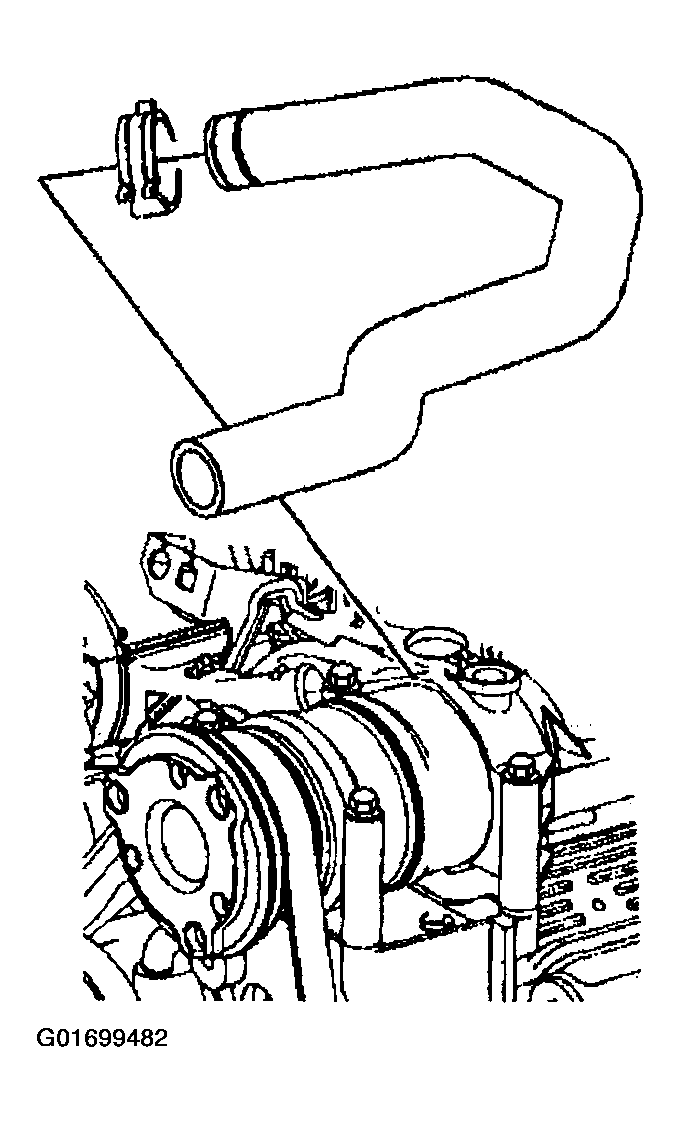

Fig 2: Removing Radiator Inlet Hose From Water Outlet (4.3L)
Courtesy of GENERAL MOTORS CORP.
If equipped with 5.0L or 5.7L, remove the radiator inlet hose from the water outlet.

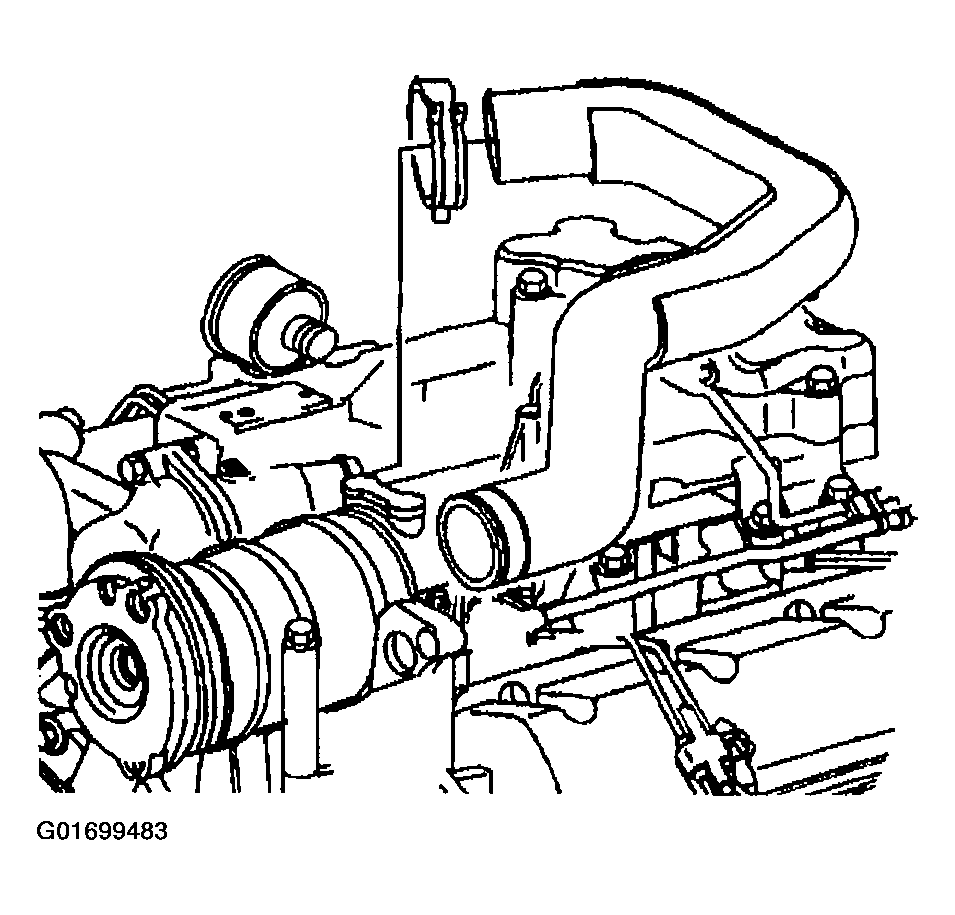

Fig 3: Removing Radiator Inlet Hose From Water Outlet (5.0L & 5.7L)
Courtesy of GENERAL MOTORS CORP.
If equipped with 6.5L, remove the radiator inlet hose from the water outlet.

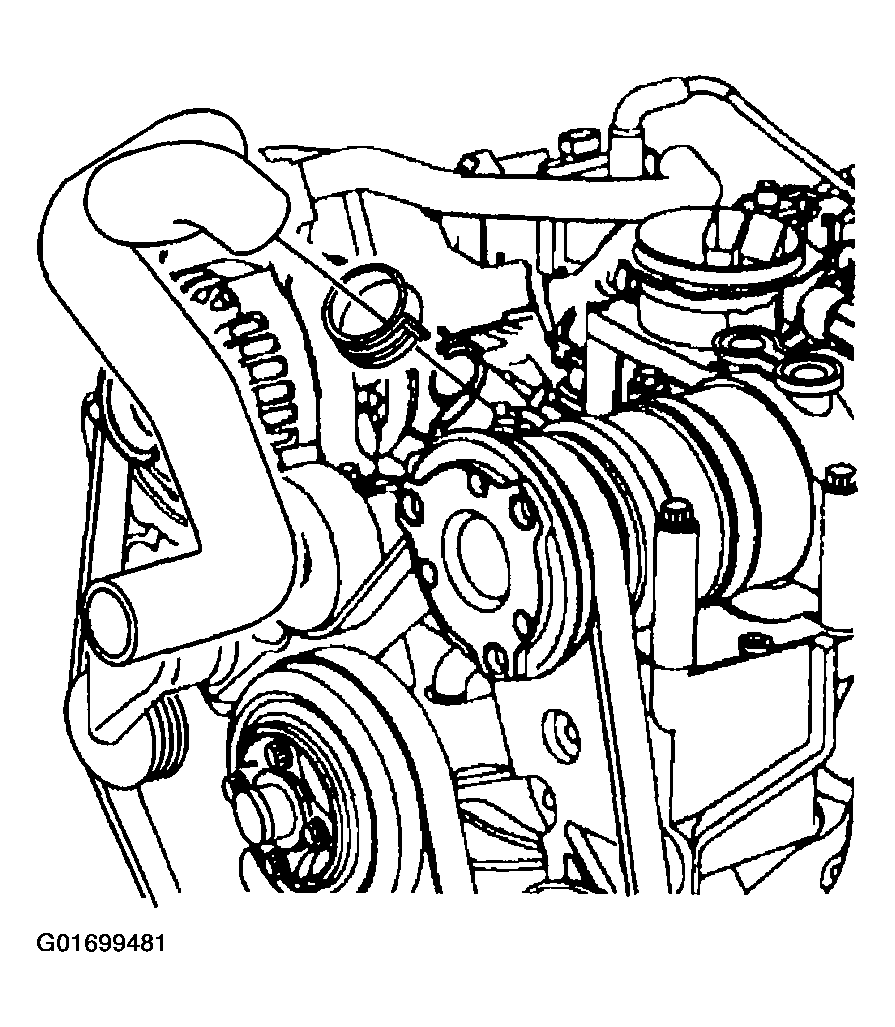

Fig 4: Removing Radiator Inlet Hose From Water Outlet (6.5L)
Courtesy of GENERAL MOTORS CORP.
If equipped with 8.1L, remove the radiator inlet hose from the water outlet.

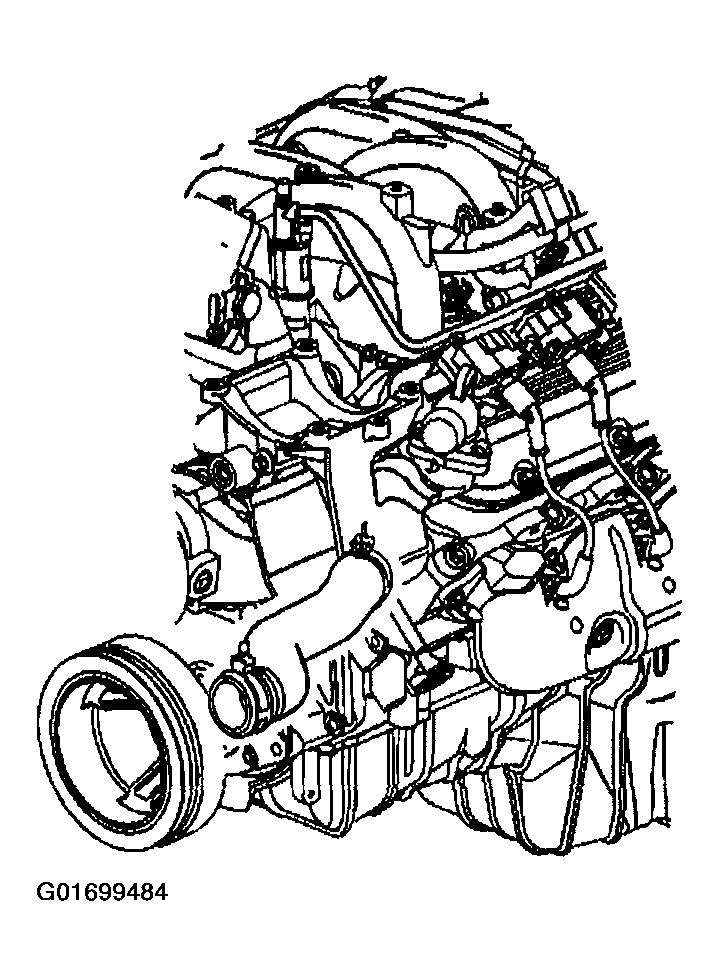

Fig 5: Removing Radiator Inlet Hose From Water Outlet (8.1L)
Courtesy of GENERAL MOTORS CORP.
