Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary oil cooler.
  2. Install the air baffle to the vehicle.
  3. Connect the oil cooler lines to the vehicle. Refer to Engine Oil Cooler Hose/Pipe Replacement .
  4. Remove the safety stands.
  5. Lower the vehicle.

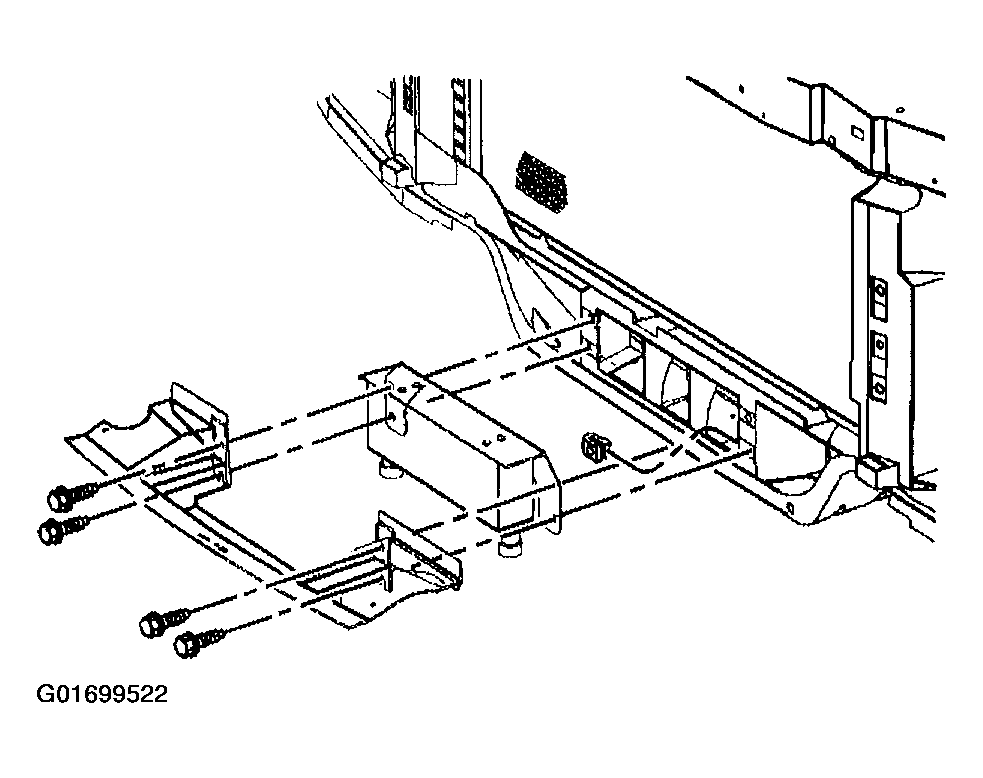

    Fig 1: Installing Air Baffle & Connecting Oil Cooler Lines
    G01699522Courtesy of GENERAL MOTORS CORP.
