Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially drain the engine coolant. Refer to Draining and Filling Cooling System .
  2. Remove the coolant recovery reservoir hose clamp and the hose at the radiator overflow fitting.

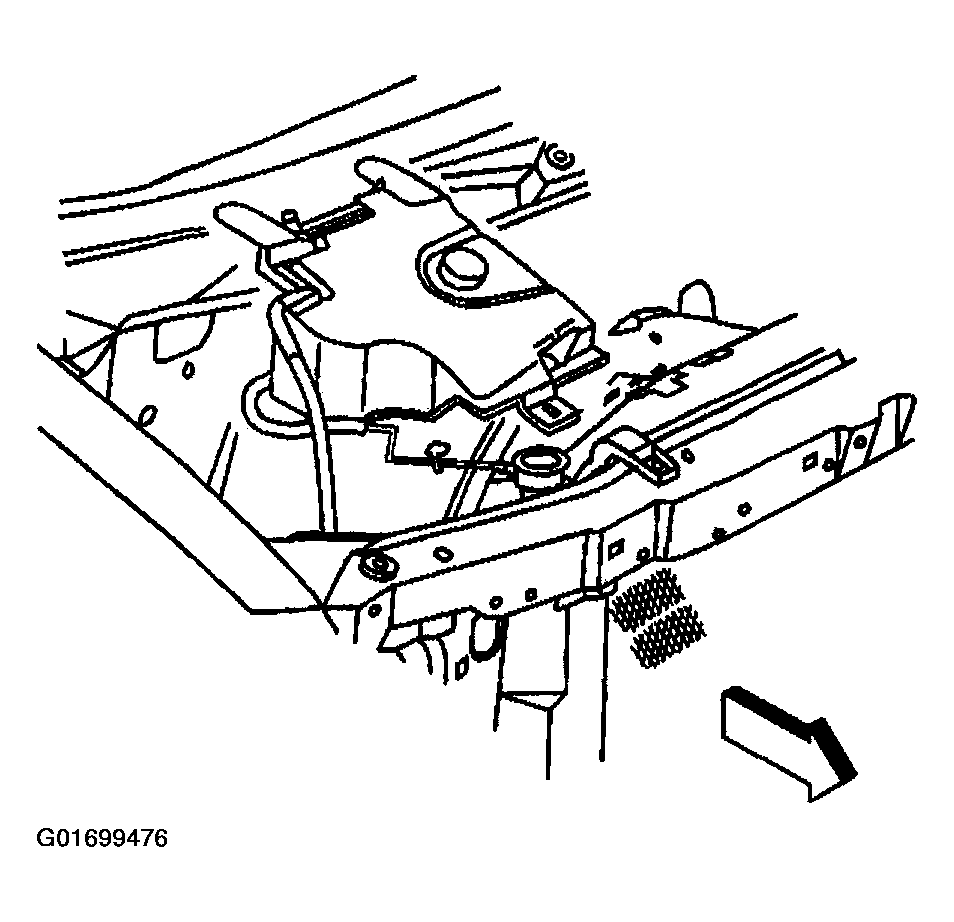

    Fig 1: Removing Coolant Recovery Reservoir Hose Clamp
    G01699476Courtesy of GENERAL MOTORS CORP.
  3. Remove the coolant recovery reservoir retaining bolt.
  4. Remove the coolant recovery reservoir from the cowl tabs.
  5. Remove the coolant recovery reservoir from the vehicle.
  6. Clean the coolant recovery reservoir with soap and water.
  7. Rinse the coolant recovery reservoir with clean water.

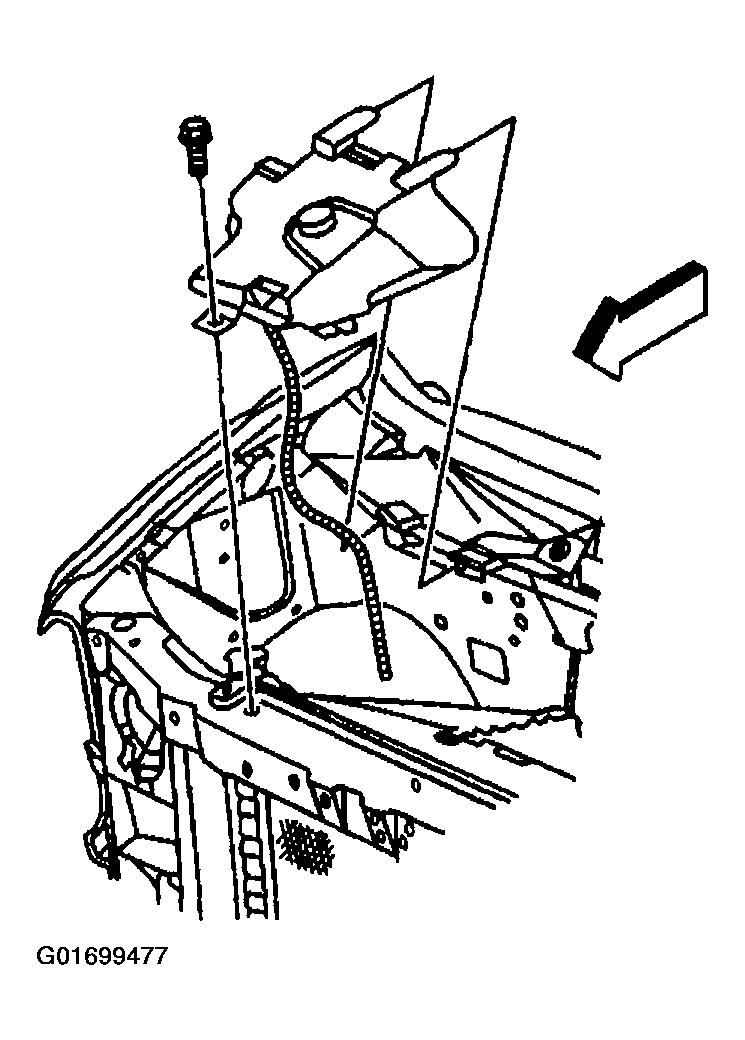

    Fig 2: Removing Coolant Recovery Reservoir
    G01699477Courtesy of GENERAL MOTORS CORP.
