Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When adding coolant, use DEX-COOL coolant. If silicated coolant is added to the system, premature engine, heater core or radiator corrosion may result. In addition, the engine coolant will require change sooner-at 50 000 km (30,000 mi) or 24 months.

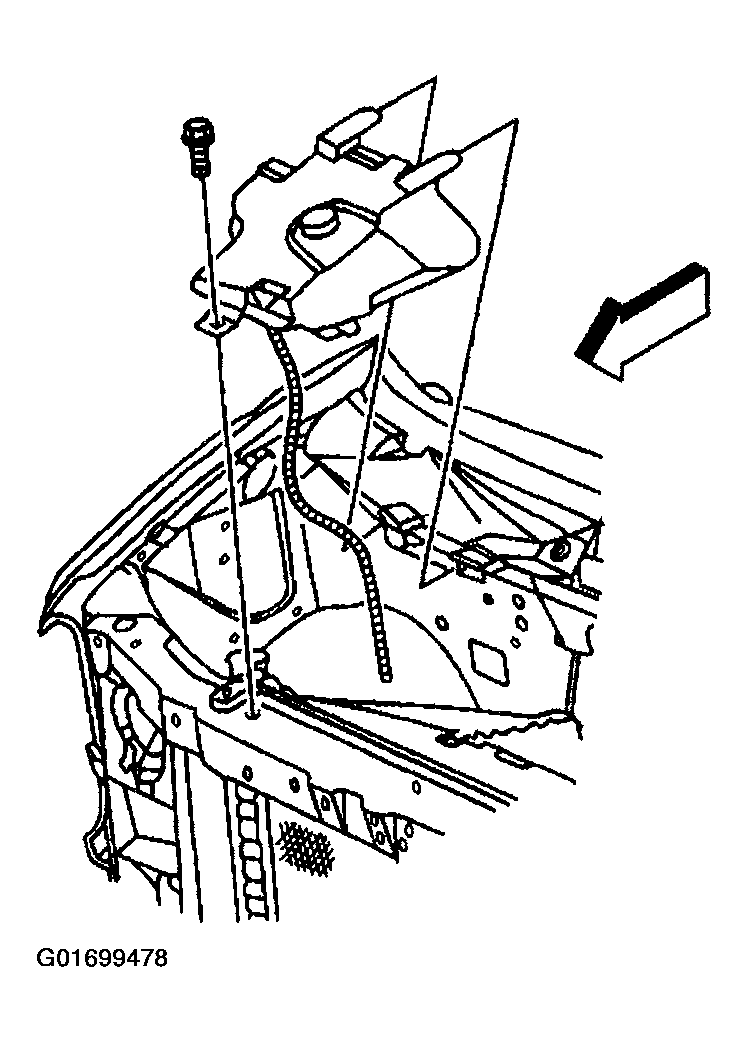

- Install the coolant recovery reservoir to the cowl tabs.CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the coolant recovery reservoir retaining bolt.
Tighten
Tighten the coolant recovery reservoir bolt to 11 N.m (97 in lbs).

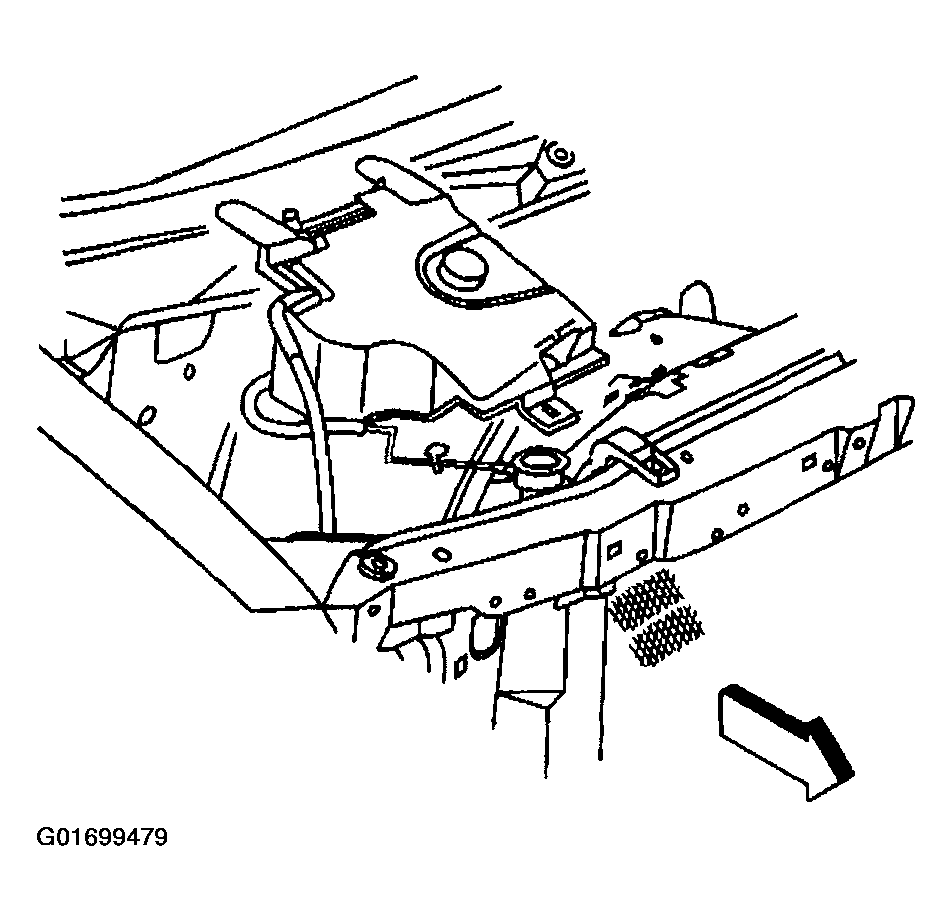

- Install the coolant recovery reservoir hose clamp and the hose at the radiator overflow fitting.
- Fill the coolant recovery reservoir with coolant to the proper level. Refer to Draining and Filling Cooling System .
