Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to Draining and Filling Cooling System .
Disconnect the engine block heater cord (1) from the block heater.

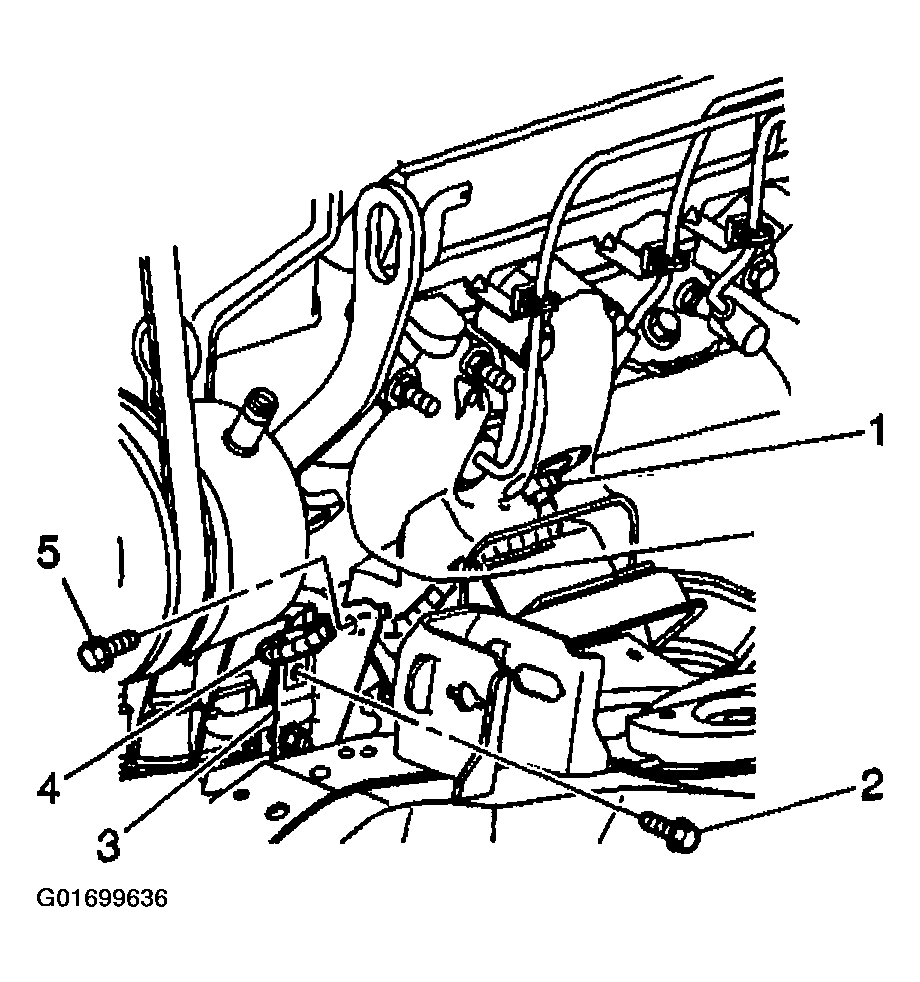

Fig 1: Disconnecting Engine Block Heater Cord
Courtesy of GENERAL MOTORS CORP.
Remove the engine block heater from the engine block.

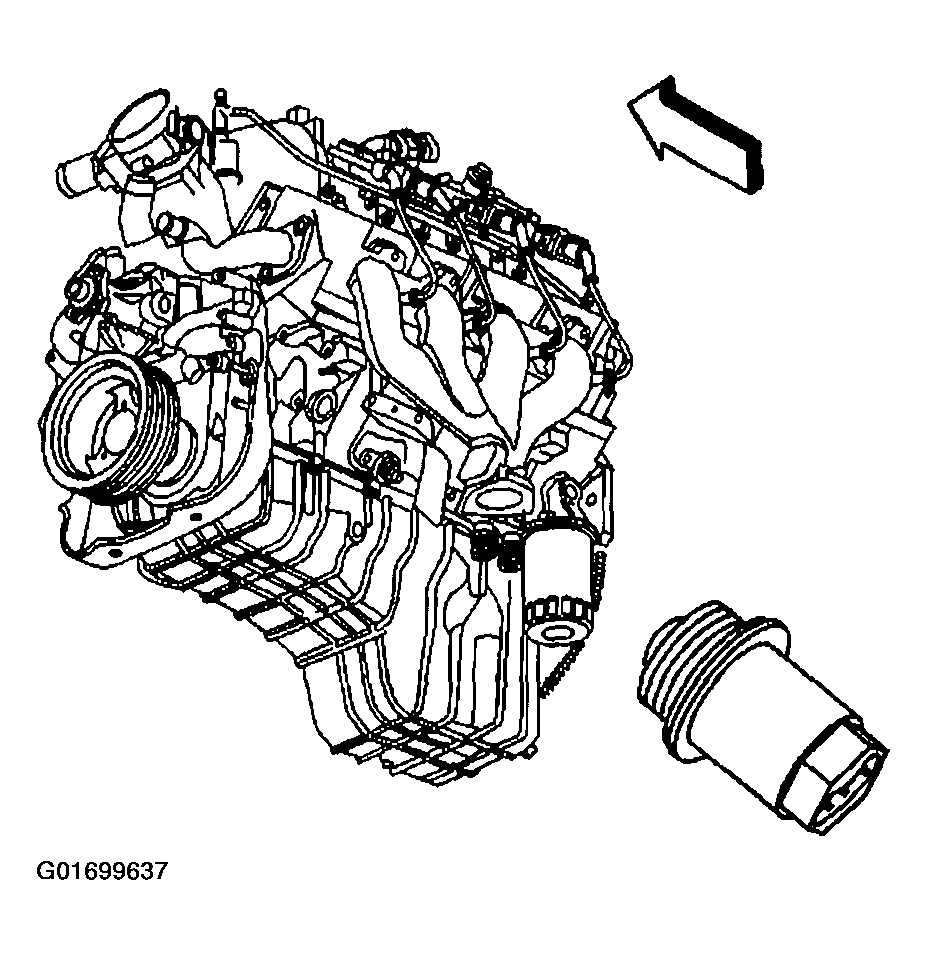

Fig 2: Removing Engine Block Heater
Courtesy of GENERAL MOTORS CORP.
