Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover.
  2. Remove the bolt (2) retaining the cord clip (3) to the bracket.
  3. Remove the cord clip (3) from the bracket.
  4. Remove the bolt (2) retaining the bracket to the engine block.
  5. Remove the bracket from the engine block.

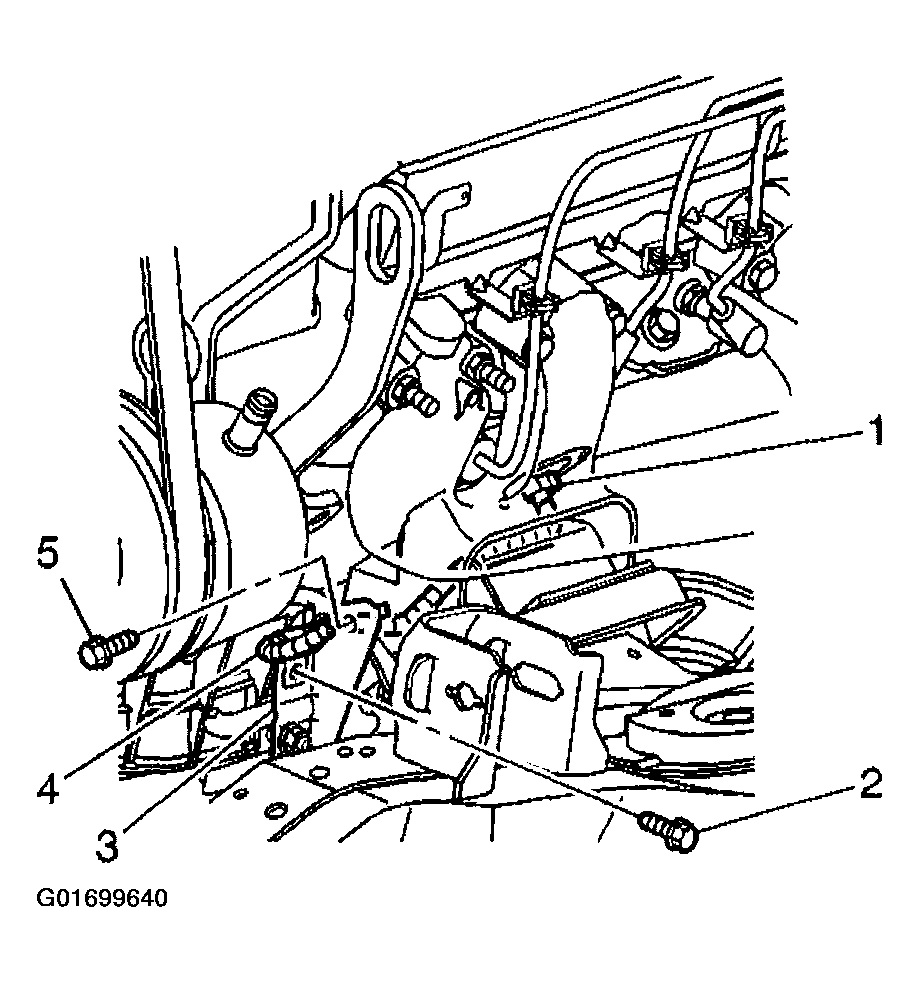

    Fig 1: Removing Bolts & Cord Clip
    G01699640Courtesy of GENERAL MOTORS CORP.
  6. Remove the cord (1) from the vehicle.

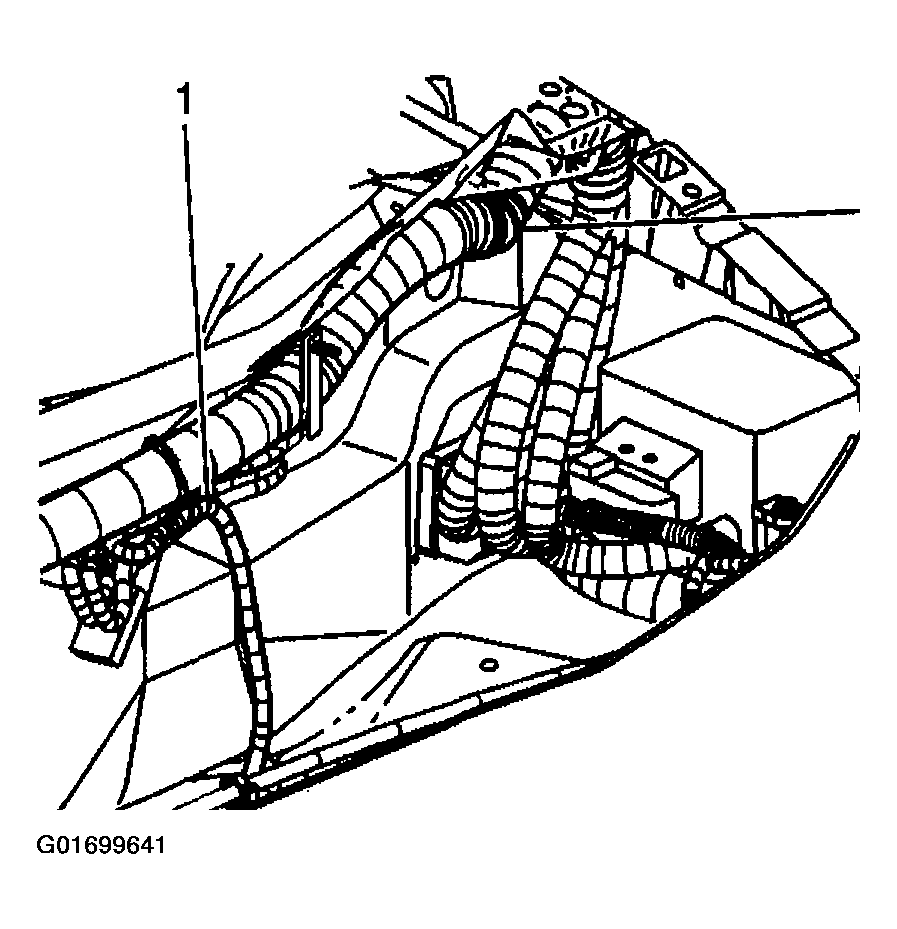

    Fig 2: Removing Cord From Vehicle
    G01699641Courtesy of GENERAL MOTORS CORP.
