Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner assembly. Refer to the appropriate procedure:
- For 6.5L, refer to AIR CLEANER ASSEMBLY
Drain the engine cooling system. Refer to Draining and Filling Cooling System .
Remove the coolant recovery reservoir or surge tank. Refer to Coolant Recovery Reservoir Replacement or Surge Tank Replacement .
Remove the upper fan shroud. Refer to Fan Shroud Replacement .

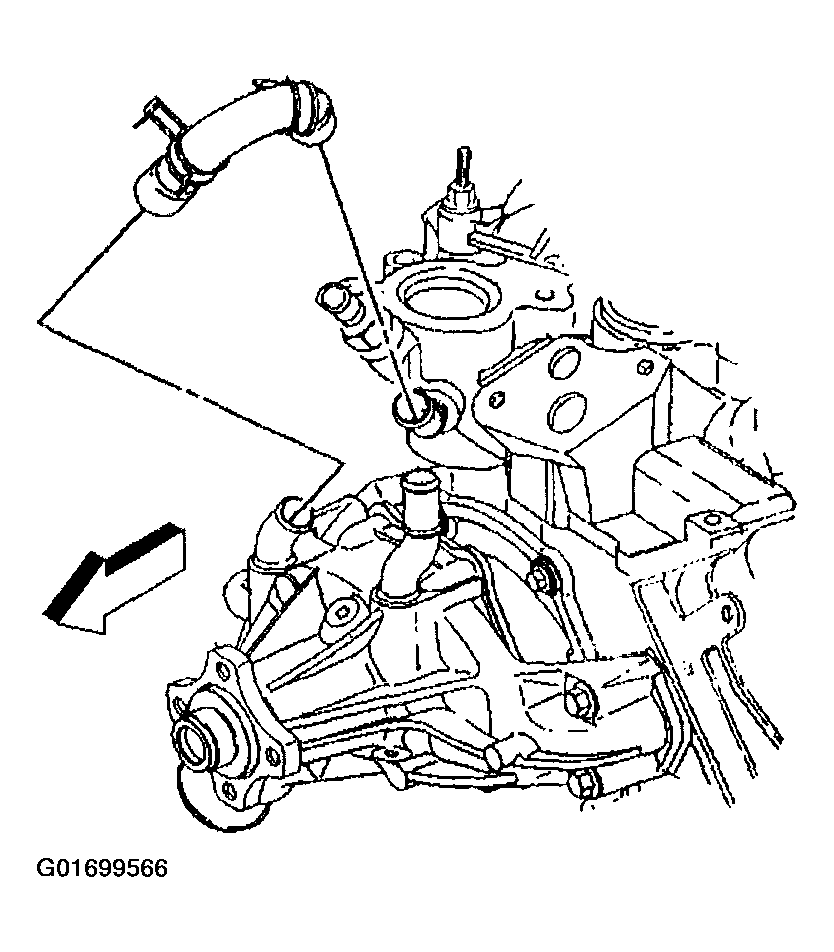

For vehicles with the 4.3L and 5.0/5.7L engines, disconnect the by-pass hose from the water pump.

Fig 1: Disconnecting By-Pass Hose (4.3L & 5.0/5.7L)

Courtesy of GENERAL MOTORS CORP.

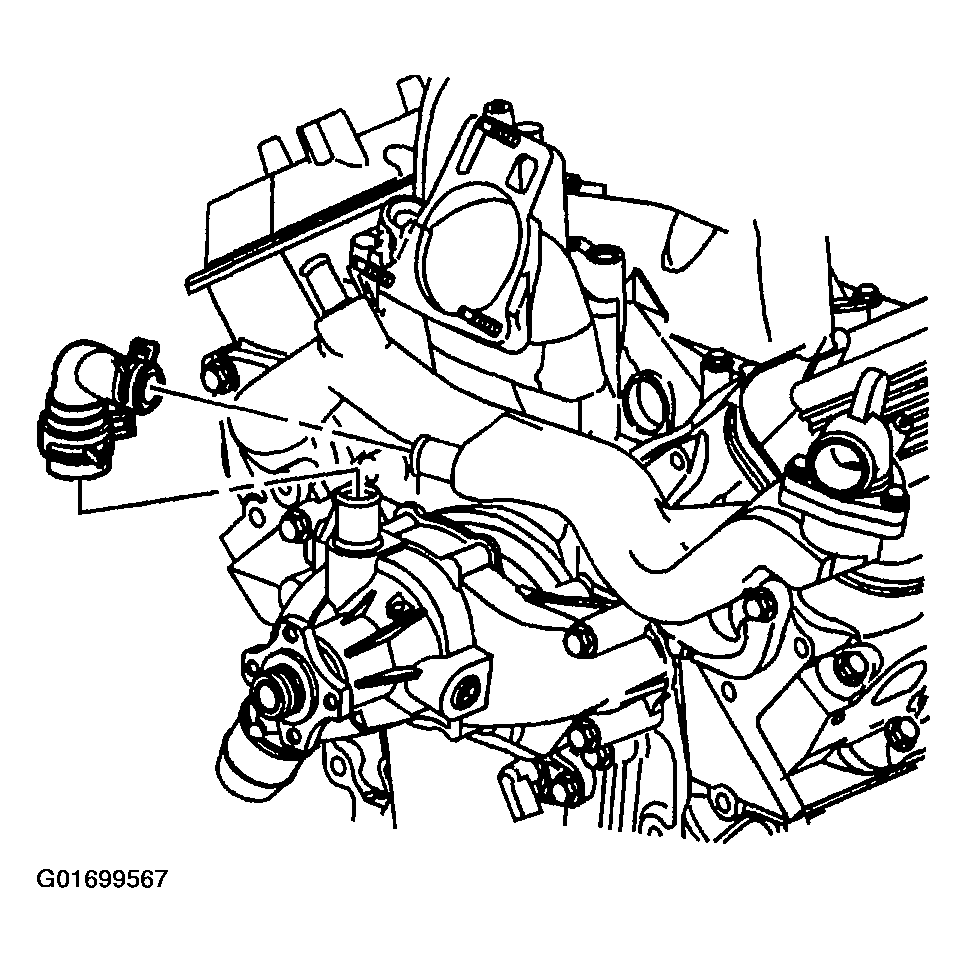

For vehicles with the 8.1L engine, disconnect the by-pass hose from the water pump.

Fig 2: Disconnecting By-Pass Hose (8.1L)
Courtesy of GENERAL MOTORS CORP.

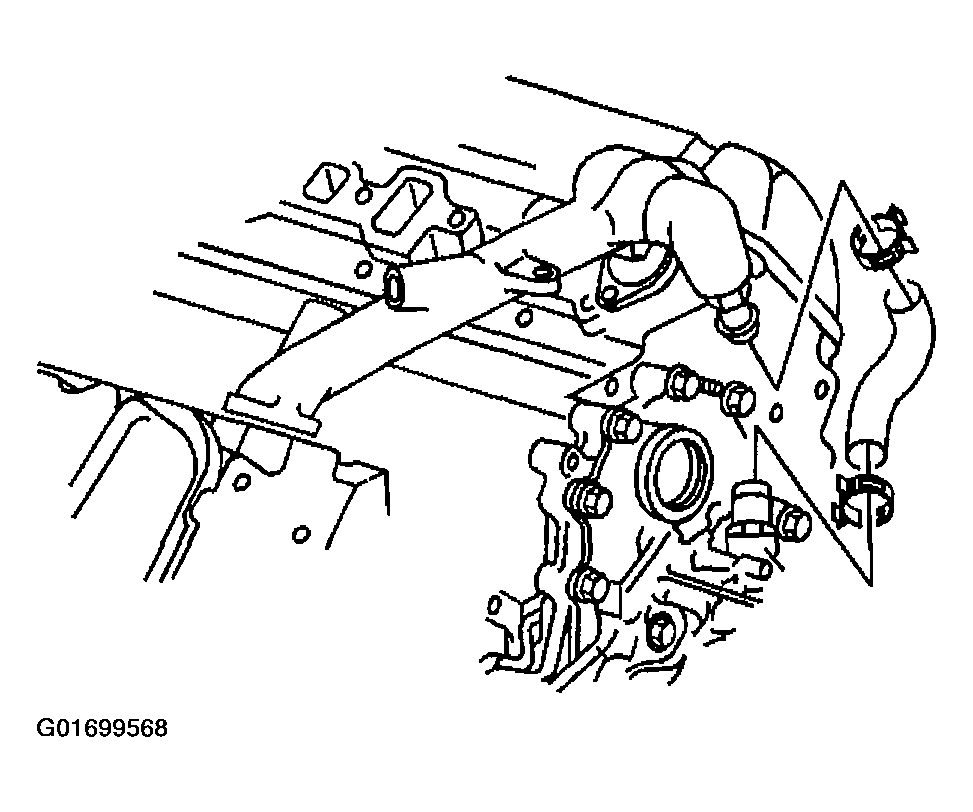

For vehicles with the 6.5L diesel engine, disconnect the by-pass hose from the water pump.
Remove the by-pass hose from the vehicle.

Fig 3: Disconnecting By-Pass Hose (6.5L)
Courtesy of GENERAL MOTORS CORP.
