Coolant Heater Inoperative

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

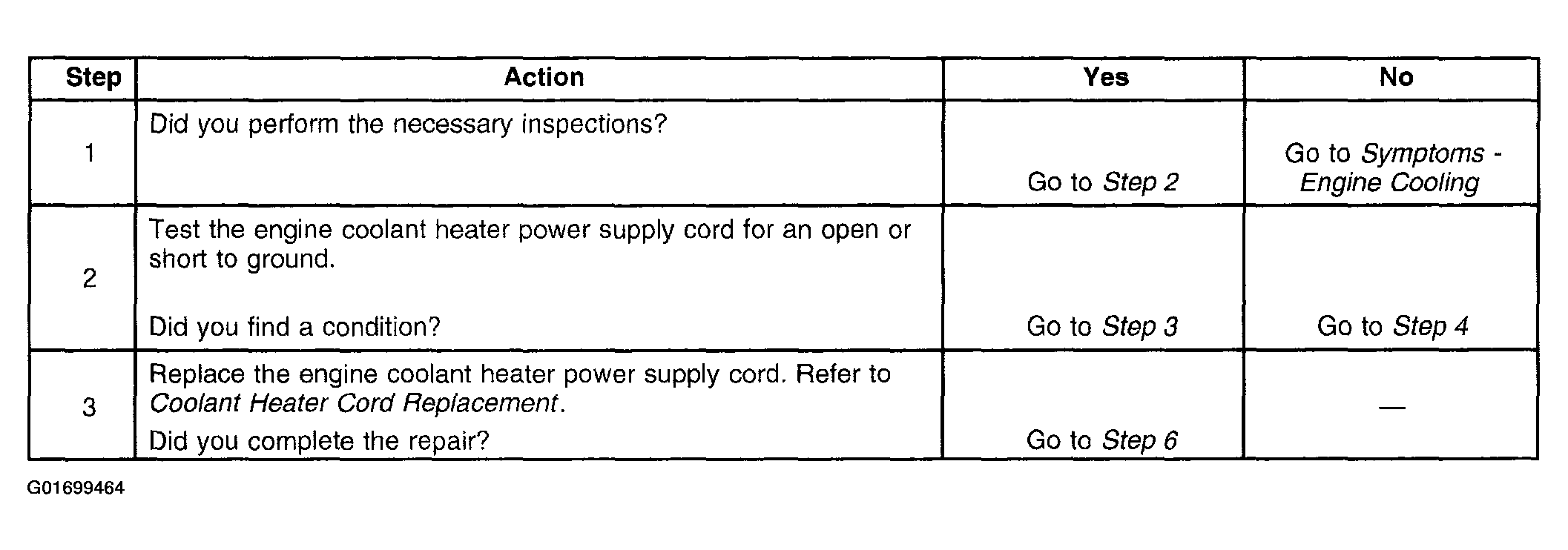

Fig 1: Coolant Heater Inoperative (1 Of 2)
G01699464Courtesy of GENERAL MOTORS CORP.

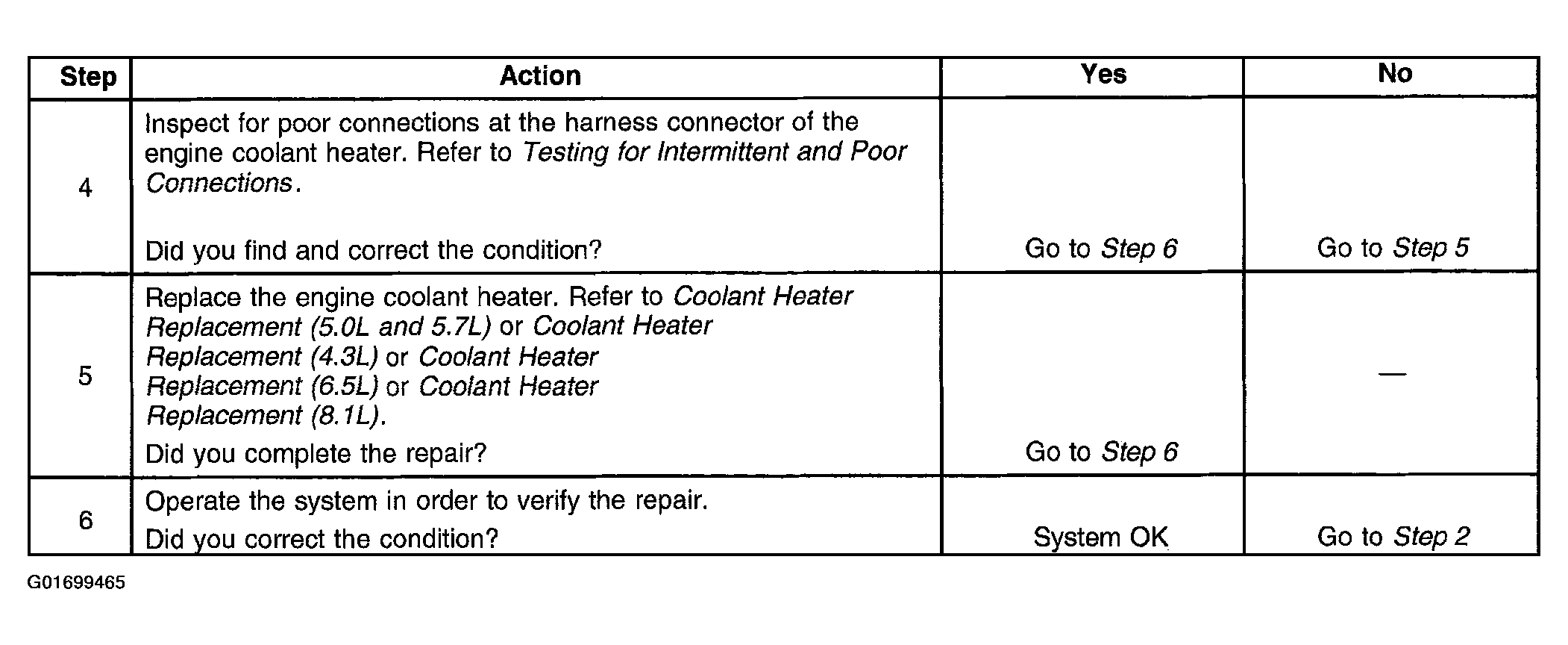

Fig 2: Coolant Heater Inoperative (2 Of 2)
G01699465Courtesy of GENERAL MOTORS CORP.
