Special Tools and Equipment

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

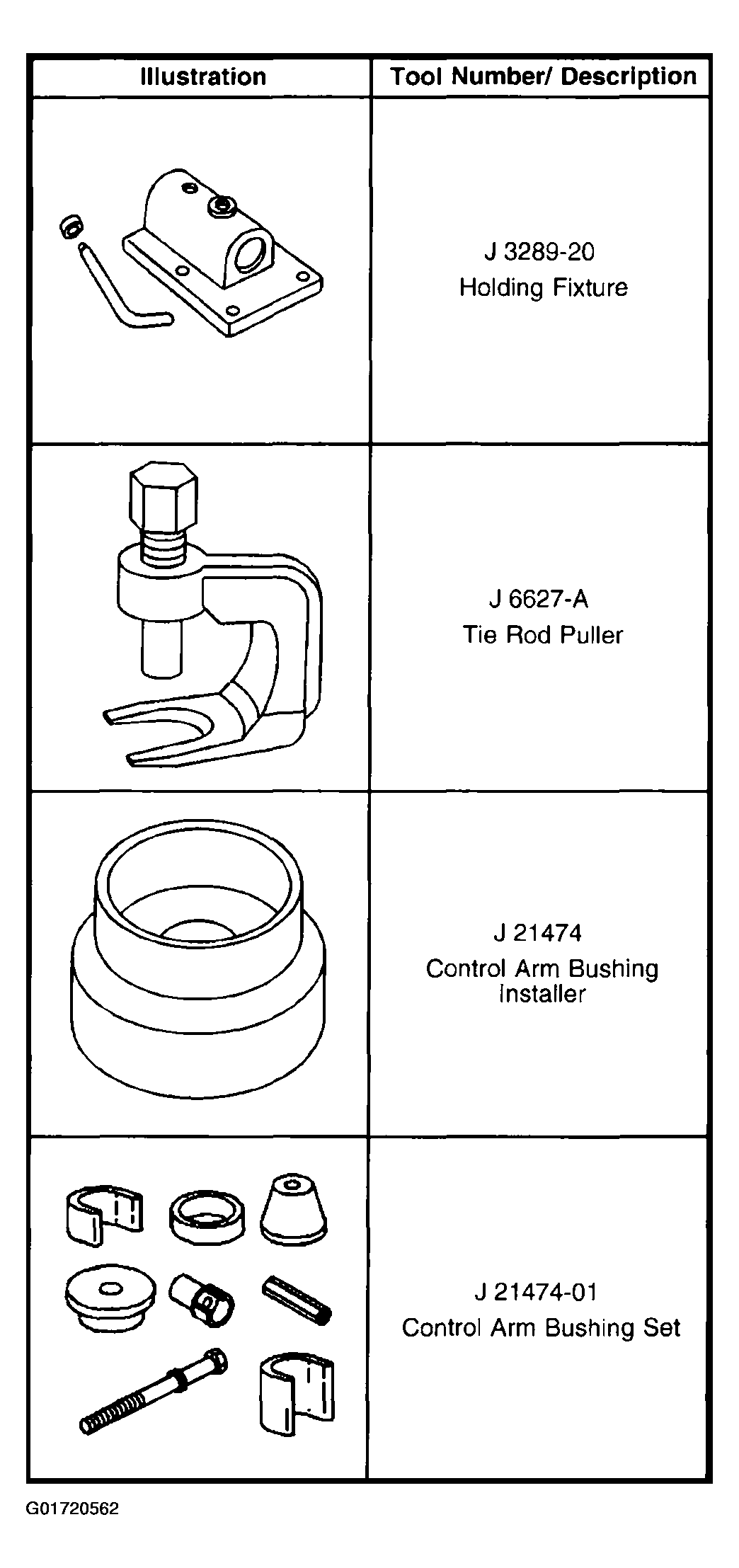

Fig 1: Special Tools and Equipment (1 of 5)

Courtesy of GENERAL MOTORS CORP.

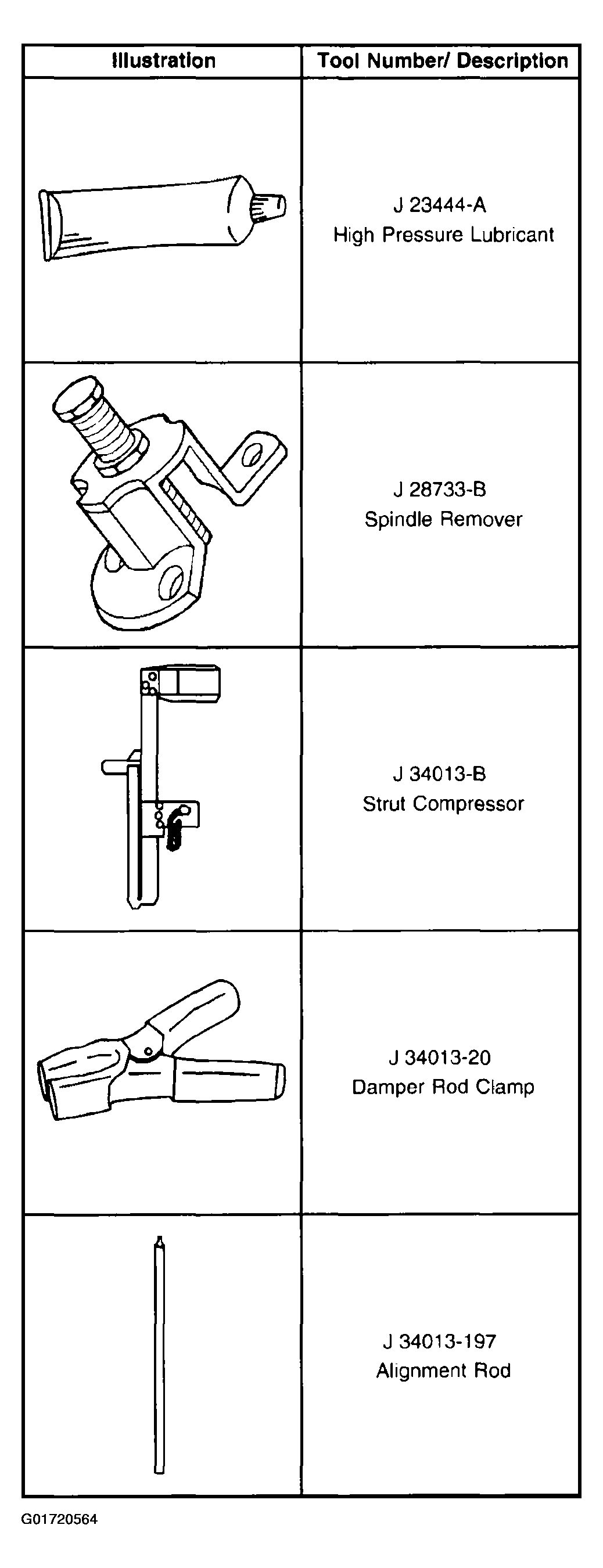

Fig 2: Special Tools and Equipment (2 of 5)

Courtesy of GENERAL MOTORS CORP.

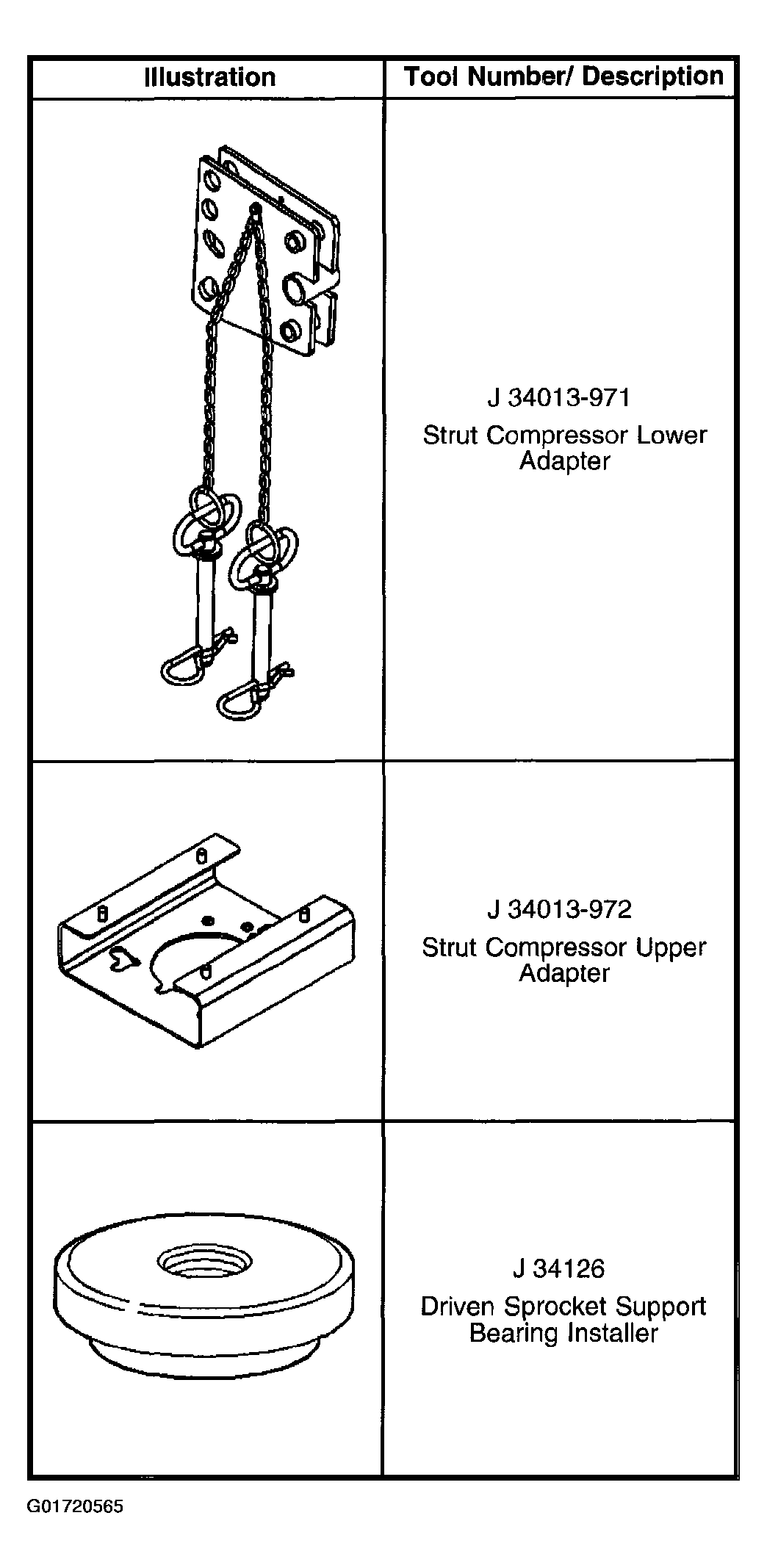

Fig 3: Special Tools and Equipment (3 of 5)

Courtesy of GENERAL MOTORS CORP.

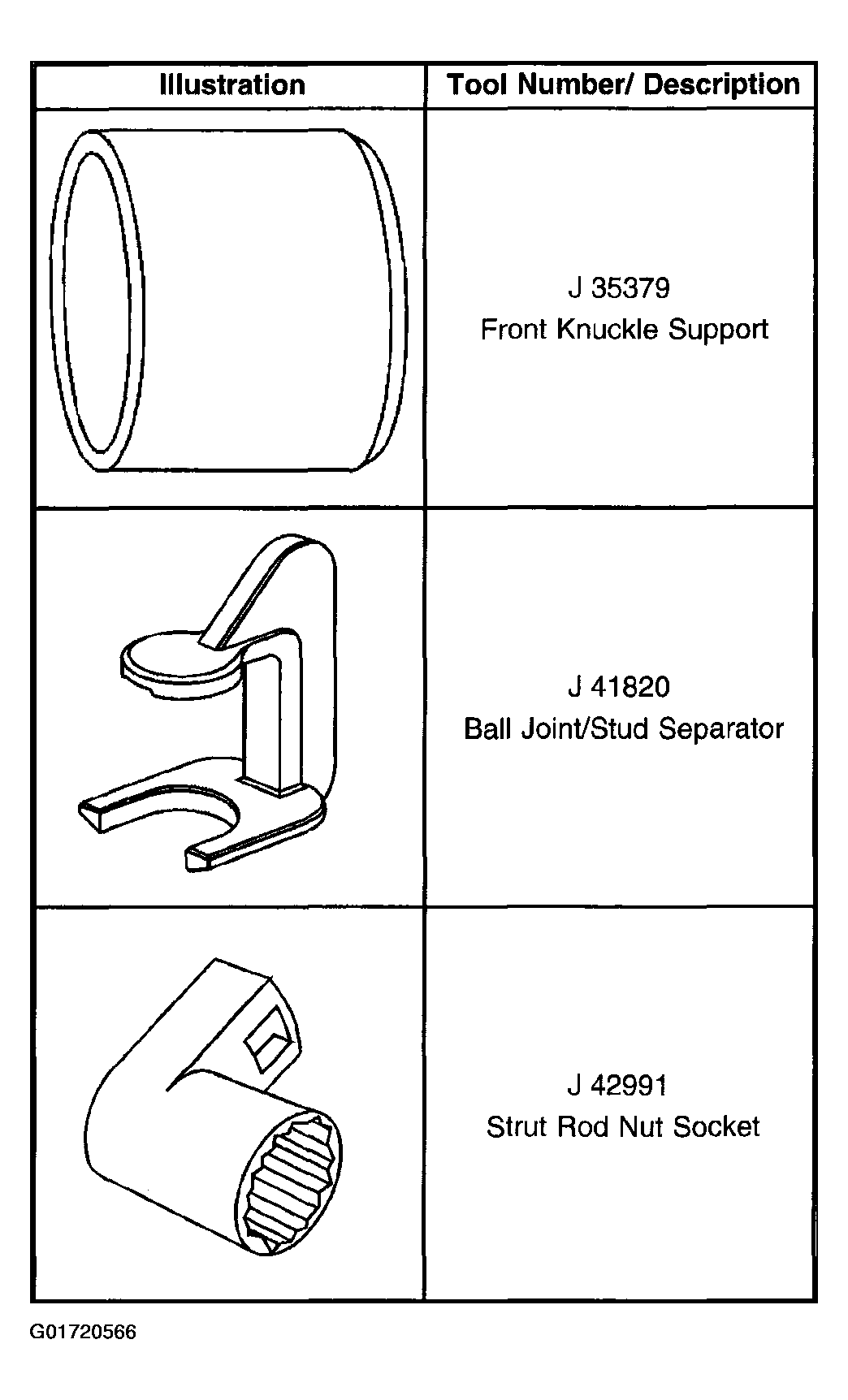

Fig 4: Special Tools and Equipment (4 of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Special Tools and Equipment (5 of 5)

Courtesy of GENERAL MOTORS CORP.
