Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tire and wheel.
  3. Disconnect the wheel speed sensor electrical connector (2).

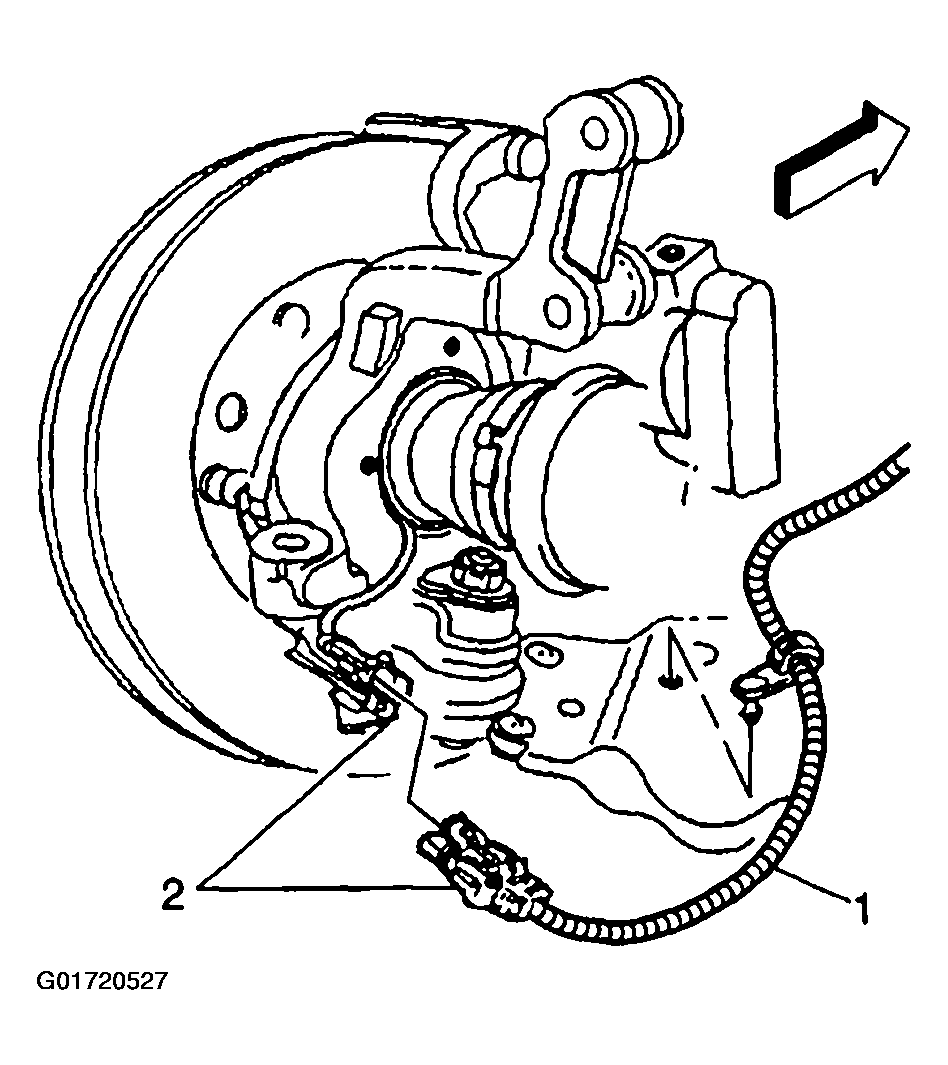

    Fig 1: Wheel Speed Sensor Electrical Connector
    G01720527Courtesy of GENERAL MOTORS CORP.
  4. Remove the wheel speed sensor electrical connector from the bracket.

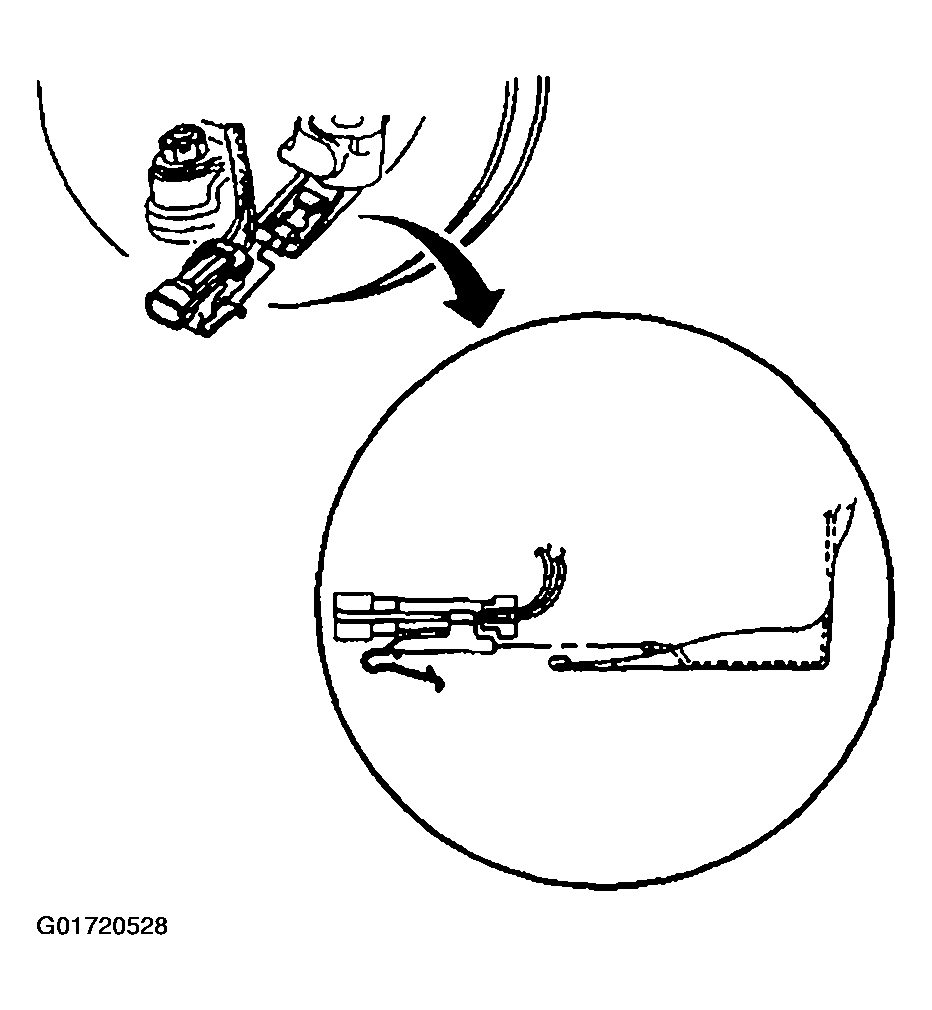

    Fig 2: Removing The Wheel Speed Sensor Electrical Connector From The Bracket
    G01720528Courtesy of GENERAL MOTORS CORP.
  5. Remove the brake caliper bracket with the brake caliper. Refer to CALIPER BRACKET (FRONT) .
  6. Remove the brake rotor. Refer to BRAKE ROTOR (FRONT) .
  7. Remove the axle shaft nut. Refer to AXLE SHAFTS .
  8. Use 3 wheel nuts in order to attach the J 28733-B  to the wheel bearing/hub.
  9. Use the J 28733-B  in order to push the axle shaft out of the wheel bearing/hub.

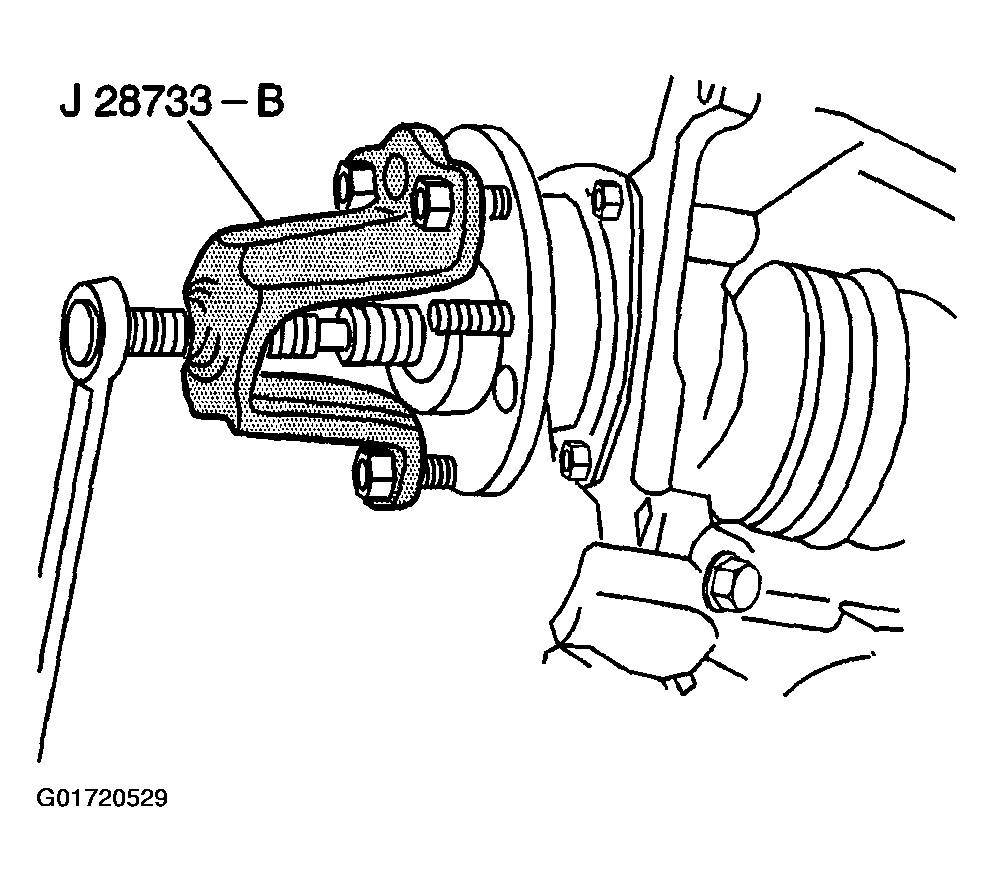

    Fig 3: Pushing The Axle Shaft Out Of The Wheel Bearing/Hub
    G01720529Courtesy of GENERAL MOTORS CORP.
  10. Remove and DISCARD the wheel bearing/hub bolts.
    NOTE: Ensure that the axle shaft outer seal/boot is not damaged.
  11. Remove the wheel bearing/hub.

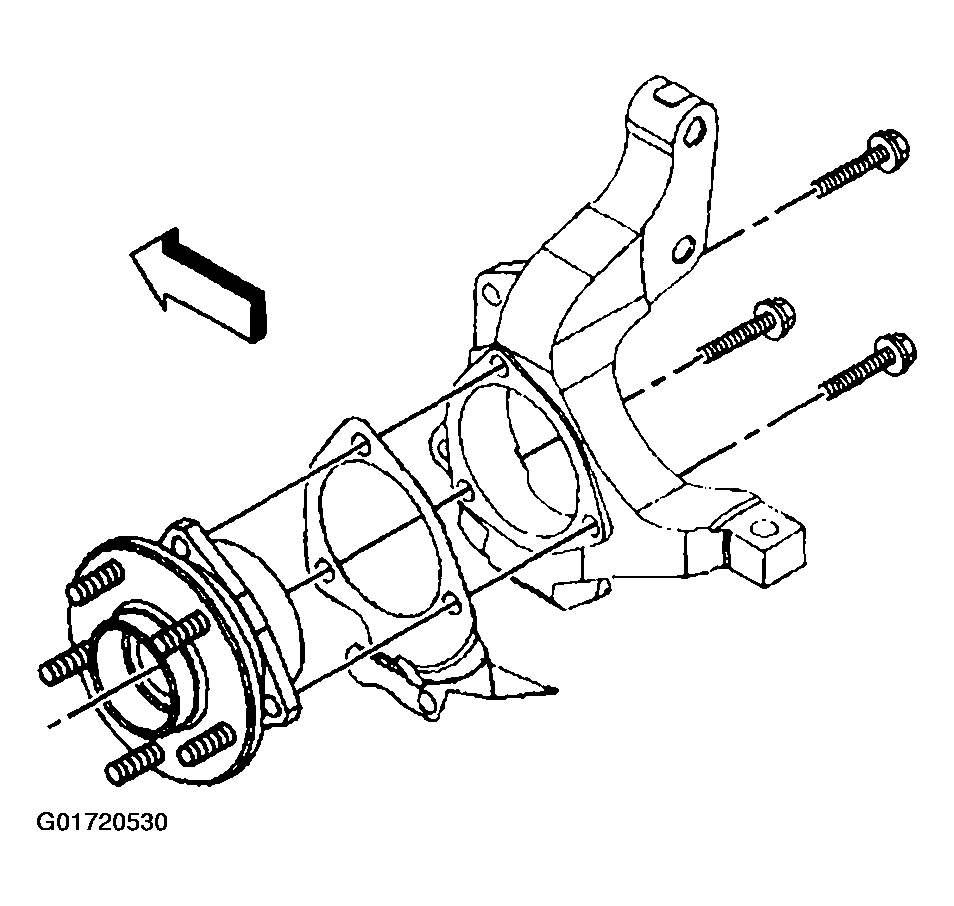

Fig 4: Wheel Bearing/Hub Bolts And Assembly
G01720530Courtesy of GENERAL MOTORS CORP.
