Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the left and right side stabilizer shaft insulator bracket bolts.
  3. Remove the left and right side stabilizer shaft insulator brackets.

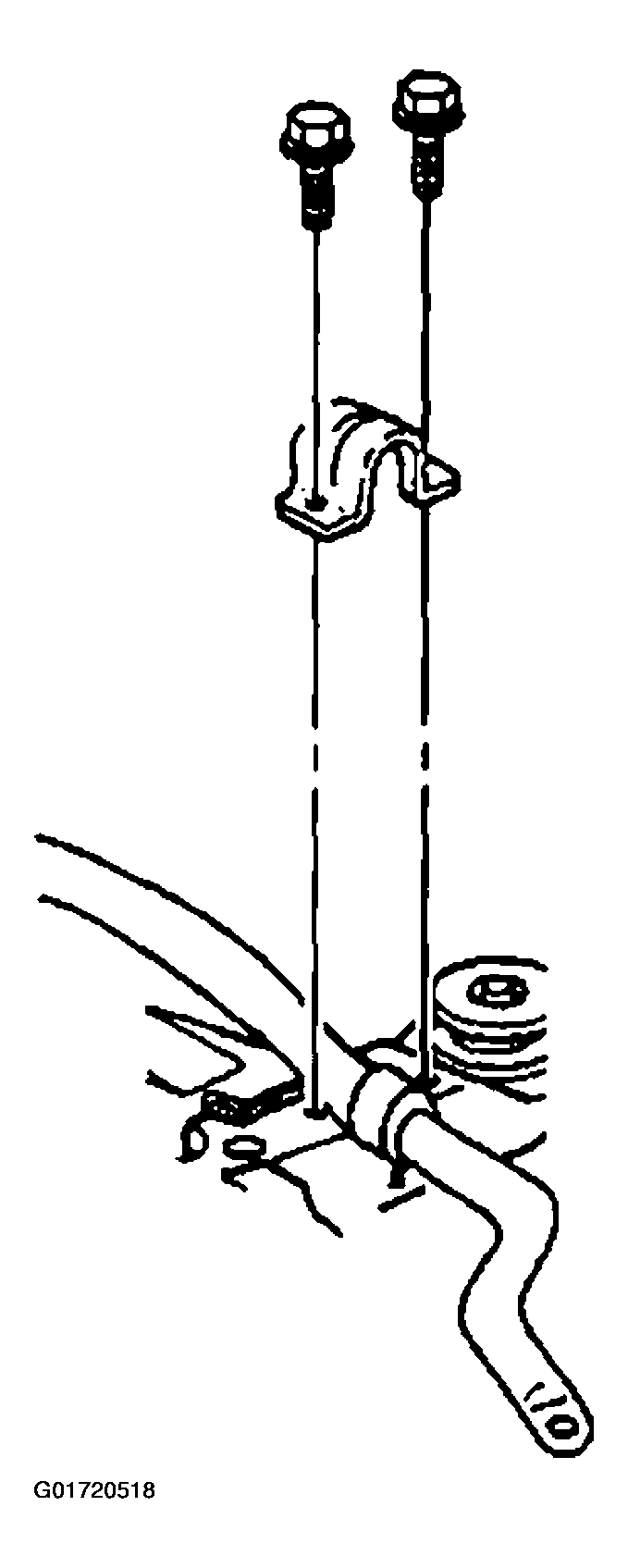

    Fig 1: Stabilizer Shaft Insulator Brackets
    G01720518Courtesy of GENERAL MOTORS CORP.
  4. Remove the left and right side stabilizer shaft insulators (1) from the stabilizer shaft (2).
    5. Fig 2: Stabilizer Shaft Insulators
    G01720519Courtesy of GENERAL MOTORS CORP.
