Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
  3. Remove the rotor, except dual wheel vehicles. Refer to BRAKE ROTOR .
  4. Remove the wheel stud from the axle flange using the J 43631.
  5. Remove the axle shaft for vehicles with 9.5 in ring gear. Refer to Rear Axle Shaft Replacement in Rear Drive Axle .
  6. Remove the rear hub assembly for vehicles with 10.5/11.5 in ring gear, with single wheels. Refer to Rear Axle Shaft Replacement in Rear Drive Axle .
  7. Remove the rear axle hub for vehicles with dual wheels. Refer to Rear Axle Hub, Bearing, Cup, and/or Seal Replacement in Rear Drive Axle .
  8. Remove the wheel stud from the axle flange using the J 43631.
  9. Remove the wheel stud from the hub flange using the J 43631.

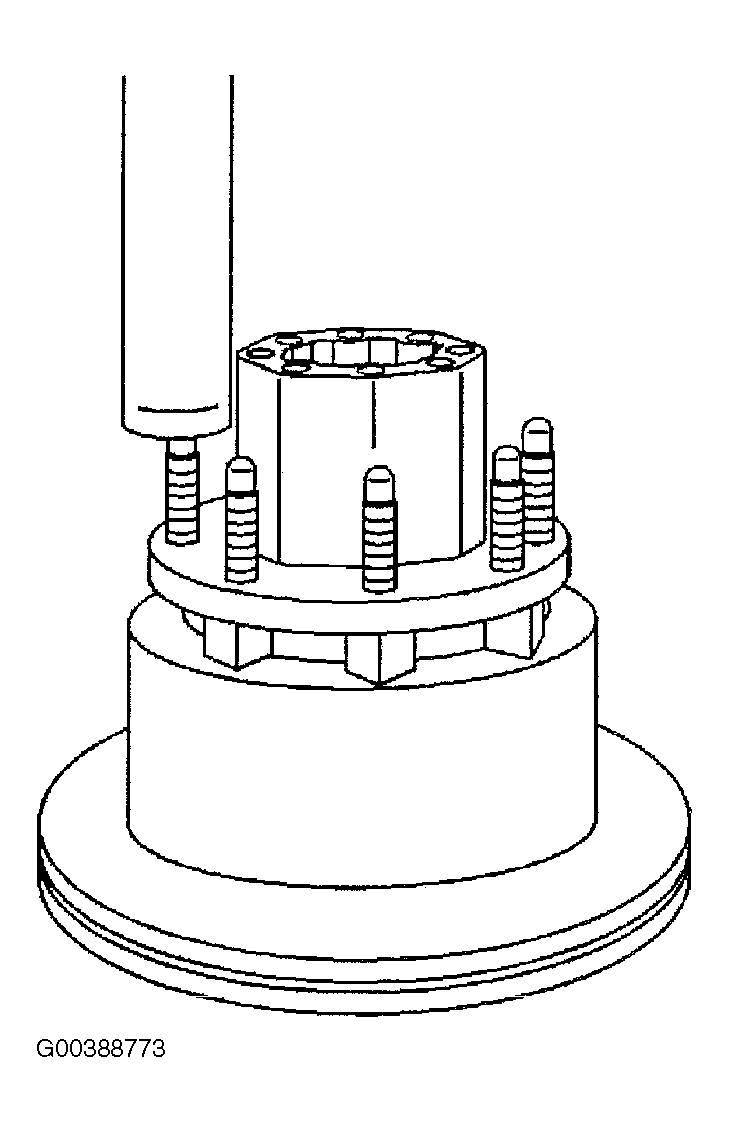

  10. Place the hub and rotor assembly in a press to remove the wheel stud. See Fig 1.
    11. Fig 1: Placing Hub & Rotor Assembly In Press
    G00388773Courtesy of GENERAL MOTORS CORP.
