Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stud. See Fig 1.
  2. Install the 4 washers and the lug nut to the stud.
  3. Tighten the lug nut in order to draw the stud into the flange until the stud fully seats.
  4. Remove the lug nut and the washers.
  5. Install the axle shaft for the vehicles with 9.5 in ring gear. Refer to Rear Axle Shaft Replacement in Rear Drive Axle .
  6. Install the rear hub assembly for the vehicles with 10.5/11.5 in ring gear, with single wheels. Refer to Rear Axle Shaft Replacement in Rear Drive Axle .
  7. Install the rear axle hub for vehicles with dual wheels. Refer to Rear Axle Hub, Bearing, Cup, and/or Seal Replacement Rear Drive Axle .
  8. Install the rotor, except dual wheels. Refer to BRAKE ROTOR .
  9. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
  10. Remove the safety stands.
  11. Lower the vehicle.

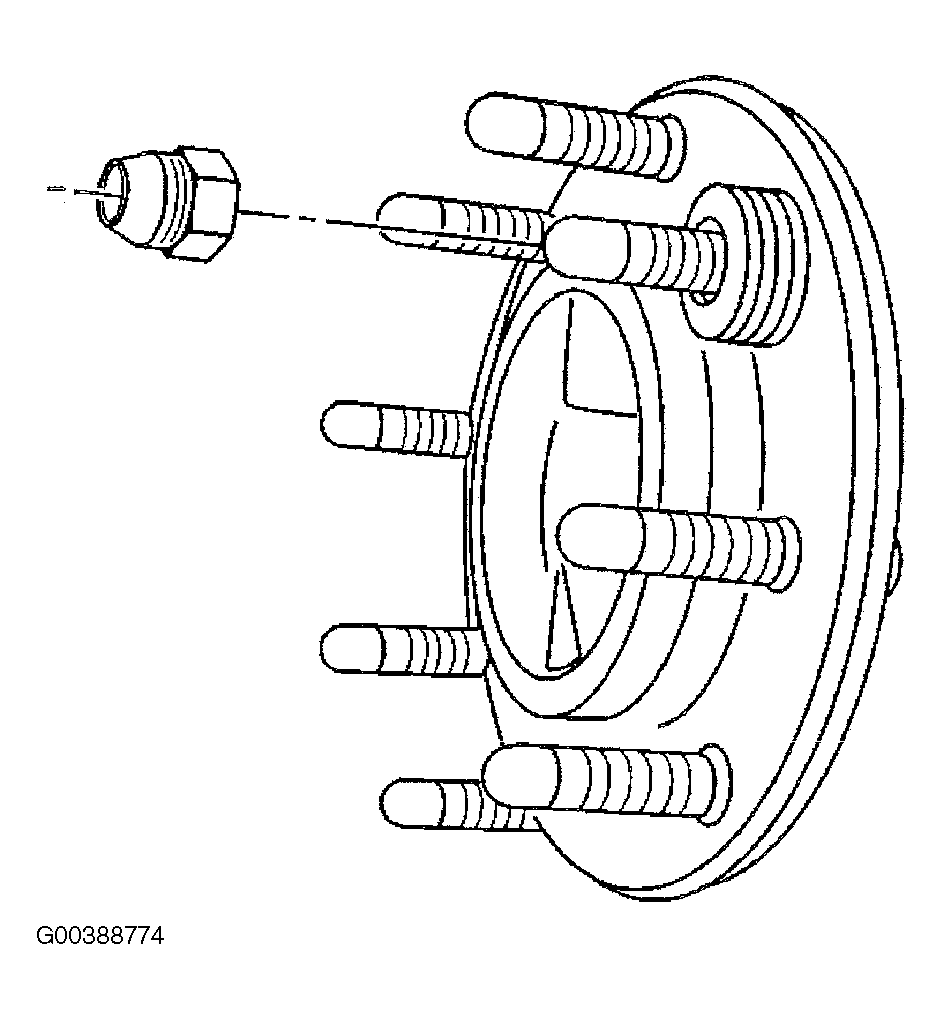

    12. Fig 1: Installing Rotor
    G00388774Courtesy of GENERAL MOTORS CORP.
