Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft insulators.
  2. Install the stabilizer shaft.
  3. Install the stabilizer shaft insulator brackets to the rear axle.

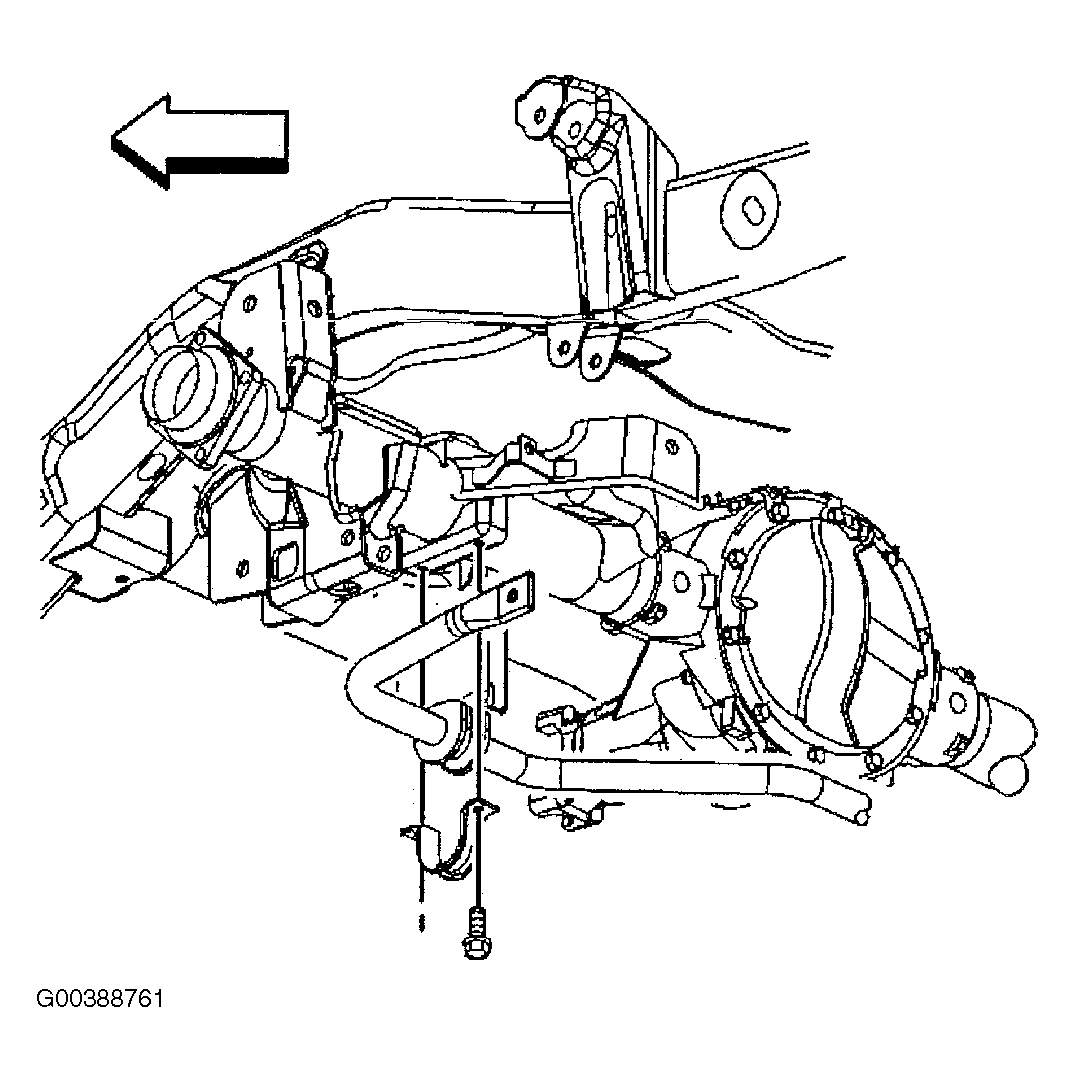

  4. Install the stabilizer shaft bracket mounting bolts. See Figure.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
    NOTE: When tightening the lower link nut verify that the inner jam nut bottoms out on the ball stud.
  5. Install the stabilizer shaft link nut to the ball stud.

    Tighten

    1. Tighten the ball stud to stabilizer shaft nut to 65 N.m (48 ft lbs).
    2. Tighten the insulator bracket bolts to 33 N.m (24 ft lbs).
    6. Fig 1: Installing Stabilizer Shaft Link Nut To Ball
    G00388762Courtesy of GENERAL MOTORS CORP.
  6. Lower the vehicle.
