Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Turn OFF the ignition.
  3. Remove the Inflatable restraint steering wheel module.
  4. Scribe an alignment mark on the steering wheel hub. Align the mark with the slash mark on the steering shaft.
  5. Loosen the steering wheel nut.

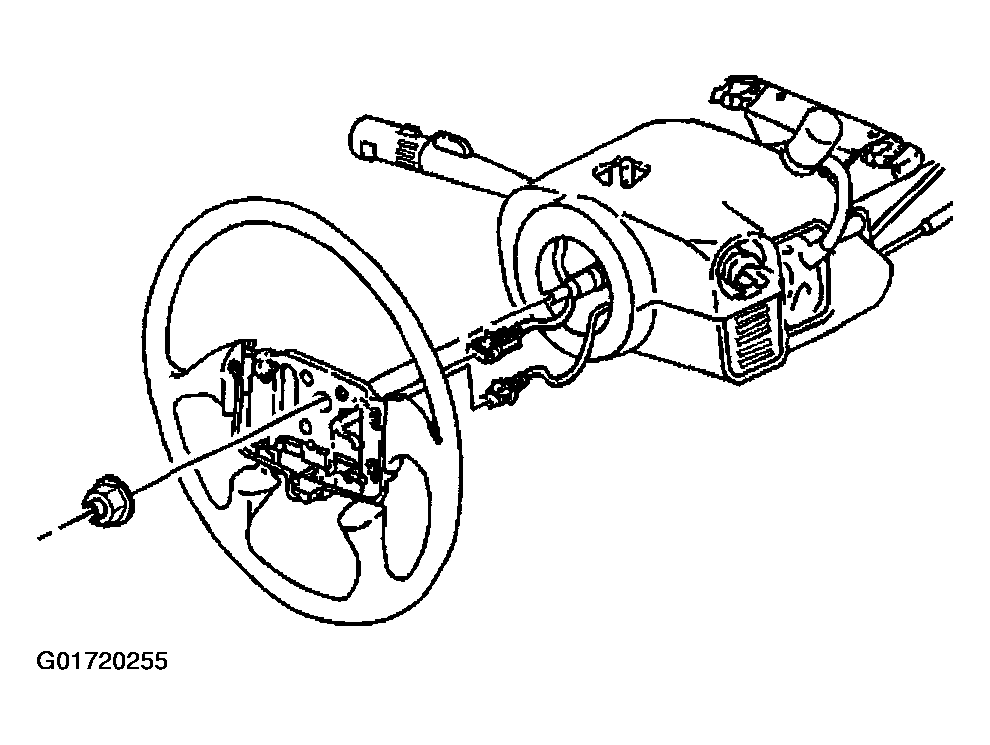

    Fig 1: Steering Wheel Nut
    G01720255Courtesy of GENERAL MOTORS CORP.
  6. Position the steering wheel nut flush with the end of the steering shaft.
  7. Assemble J 1859-A  with J 42578  on the steering wheel.
  8. Use J 1859-A  with J 42578  in order to unseat the steering wheel from the steering shaft.
  9. Remove J 1859-A  and J 42578  from the steering wheel.
  10. Remove the steering shaft nut.
  11. Remove the steering wheel from the steering shaft.

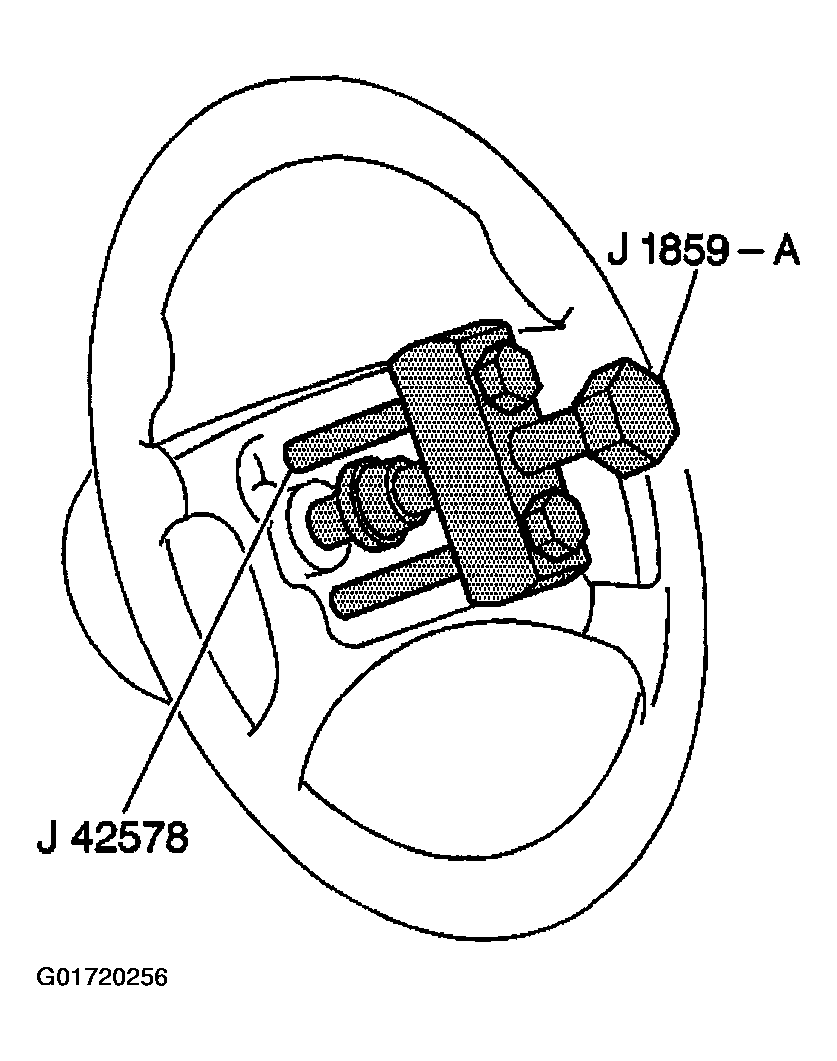

    Fig 2: Removing Steering Wheel From Steering Shaft
    G01720256Courtesy of GENERAL MOTORS CORP.
  12. Unroute the SIR connector from the steering wheel.
