Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the shift lever downward to engage it into the shift control.
  2. Install the TORX® head fastener.
  3. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  4. Install the steering wheel. Refer to Steering Wheel Replacement .
  5. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

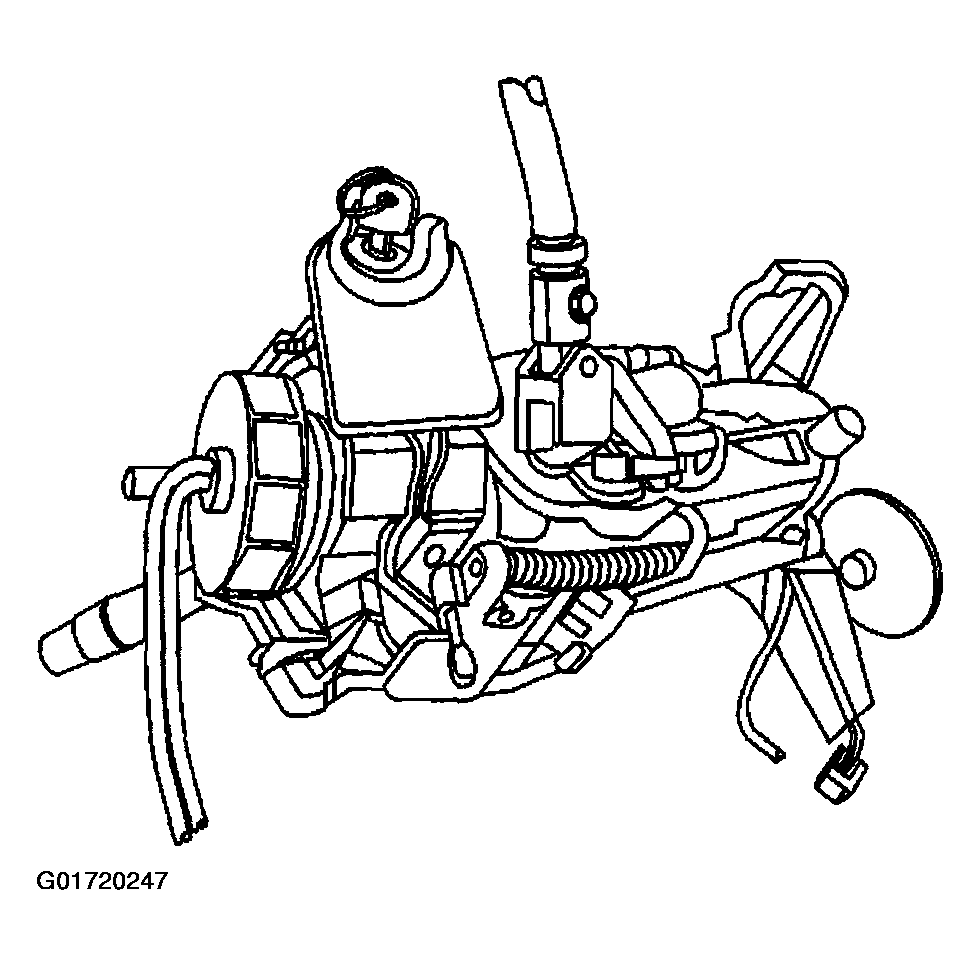

Fig 1: Shift Lever Assembly
G01720247Courtesy of GENERAL MOTORS CORP.
